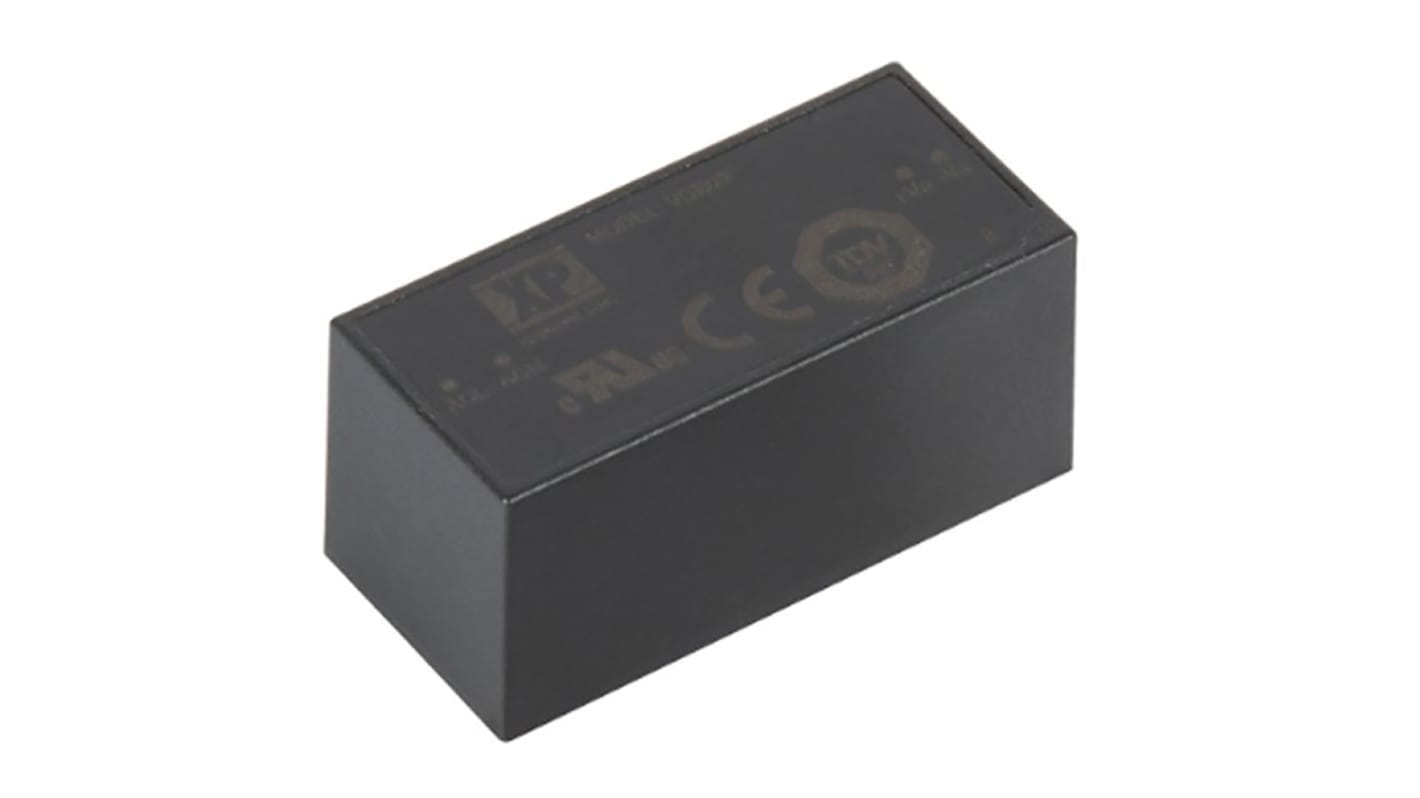

XP Power Switching Power Supply, VCE03US15, 15V dc, 200mA, 3W, 1 Output, 85 → 305V ac Input Voltage
- RS Stock No.:
- 172-0793
- Mfr. Part No.:
- VCE03US15
- Brand:
- XP Power
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 172-0793
- Mfr. Part No.:
- VCE03US15
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 15V dc | |
| Output Current | 200mA | |
| Power Rating | 3W | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 305V ac | |
| Mounting Type | PCB Mount | |
| Package Type | Encapsulated | |
| Length | 40.6mm | |
| Width | 19.1mm | |
| Depth | 19.1mm | |
| Efficiency | 80% | |
| Weight | 30g | |
| Maximum Temperature | +70°C | |
| Minimum Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 15V dc | ||
Output Current 200mA | ||
Power Rating 3W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 305V ac | ||
Mounting Type PCB Mount | ||
Package Type Encapsulated | ||
Length 40.6mm | ||
Width 19.1mm | ||
Depth 19.1mm | ||
Efficiency 80% | ||
Weight 30g | ||
Maximum Temperature +70°C | ||
Minimum Temperature -25°C | ||
The VCE03 is a series of open frame and encapsulated AC-DC single output power supplies designed for low cost ITE industrial and domestic applications. The series provides two mechanical options including open frame and encapsulated PCB mount. These class II isolation parts benefit system designers with easy integration into a wide range of applications.
Ultra Compact SIL Package
Single Outputs from 3.3 to 48 V
PCB Mount
Encapsulated & Open Frame
85-305 VAC Operation
<0.3 W No Load Input Power
Low Cost
3 Year Warranty
Single Outputs from 3.3 to 48 V
PCB Mount
Encapsulated & Open Frame
85-305 VAC Operation
<0.3 W No Load Input Power
Low Cost
3 Year Warranty
