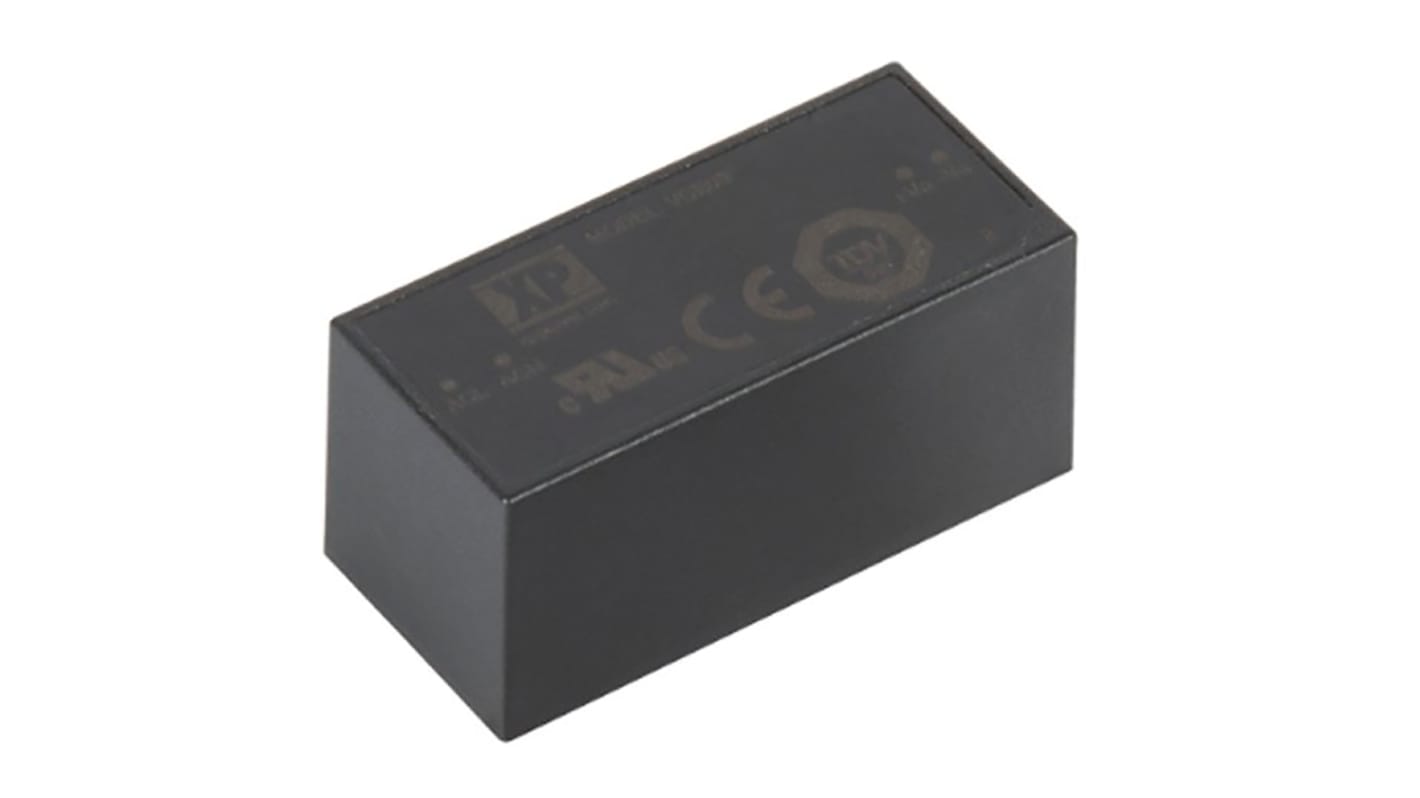

XP Power Switching Power Supply, VCE03US12, 12V dc, 250mA, 3W, 1 Output, 85 → 305V ac Input Voltage

View all Switching Power Supplies

Subtotal (1 unit)*

£9.29

(exc. VAT)

£11.15

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 58 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£9.29

*price indicative

RS Stock No.:
172-0792
Distrelec Article No.:
302-24-696
Mfr. Part No.:
VCE03US12
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

12V dc

Output Current

250mA

Power Rating

3W

Number of Outputs

1

Input Voltage

85 → 305V ac

Mounting Type

PCB Mount

Package Type

Encapsulated

Length

40.6mm

Width

19.1mm

Depth

19.1mm

Efficiency

80%

Weight

30g

Minimum Temperature

-25°C

Maximum Temperature

+70°C

The VCE03 is a series of open frame and encapsulated AC-DC single output power supplies designed for low cost ITE industrial and domestic applications. The series provides two mechanical options including open frame and encapsulated PCB mount. These class II isolation parts benefit system designers with easy integration into a wide range of applications.

Ultra Compact SIL Package
Single Outputs from 3.3 to 48 V
PCB Mount
Encapsulated & Open Frame
85-305 VAC Operation
<0.3 W No Load Input Power
Low Cost
3 Year Warranty
