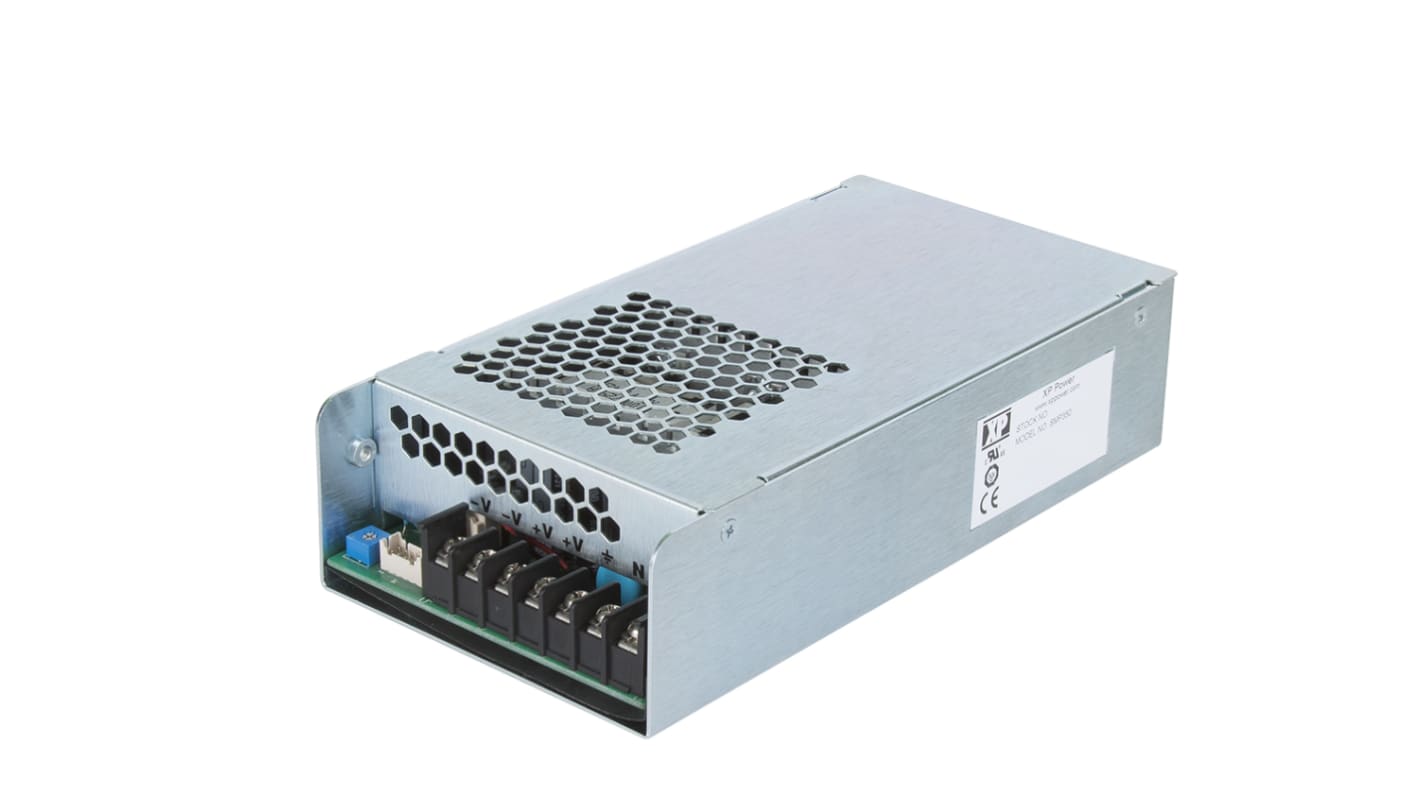

XP Power Switching Power Supply, SMP350PS28, 28V dc, 11.8A, 330 (90 → 180 V ac) W, 350 (180 → 264 V ac)
- RS Stock No.:
- 172-0750
- Mfr. Part No.:
- SMP350PS28
- Brand:
- XP Power
Available to back order for despatch 07/05/2024
Added
Price Each
£112.63
(exc. VAT)
£135.16
(inc. VAT)
Units | Per unit |
1 - 4 | £112.63 |
5 - 9 | £109.25 |
10 - 24 | £105.87 |
25 - 49 | £102.49 |
50 + | £99.11 |
- RS Stock No.:
- 172-0750
- Mfr. Part No.:
- SMP350PS28
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
Product Details
The SMP350 series provides a range of rugged, enclosed, 300 – 350W supplies with integral fan, screw terminal connections and a wide operating temperature range of -40 °C to +70 °C ideally suited to a wide range of industrial applications. The SMP350 series features high efficiency for ease of integration into the end application and offers remote On/Off to simplify system control. Packaged in a 3.6 x 7 x 1.7 enclosure the series offers power densities up to 13 W/in3 providing a compact, high efficiency, low noise power solution.
Rugged Industrial Construction
-40 °C to +70 °C Operation
Screw Terminals
High Efficiency
Remote On/Off
Low Leakage Current
Class B Emissions
3 Year Warranty
-40 °C to +70 °C Operation
Screw Terminals
High Efficiency
Remote On/Off
Low Leakage Current
Class B Emissions
3 Year Warranty
Note
For operation in the 90 V ac to 180 V ac input range, refer to datasheet for output current and power ratings.
Specifications
Attribute | Value |
---|---|
Output Voltage | 28V dc |
Output Current | 11.8 A, 12.5A |
Power Rating | 330 (90 → 180 V ac) W, 350 (180 → 264 V ac) W |
Number of Outputs | 1 |
Input Voltage | 85 → 264V ac |
Mounting Type | Chassis Mount |
Package Type | Enclosed |
Length | 180.8mm |
Width | 91.4mm |
Medical Approved | Yes |
Depth | 43.2mm |
Efficiency | 93% |
Maximum Temperature | +70°C |
Weight | 0.68kg |
Minimum Temperature | -40°C |
