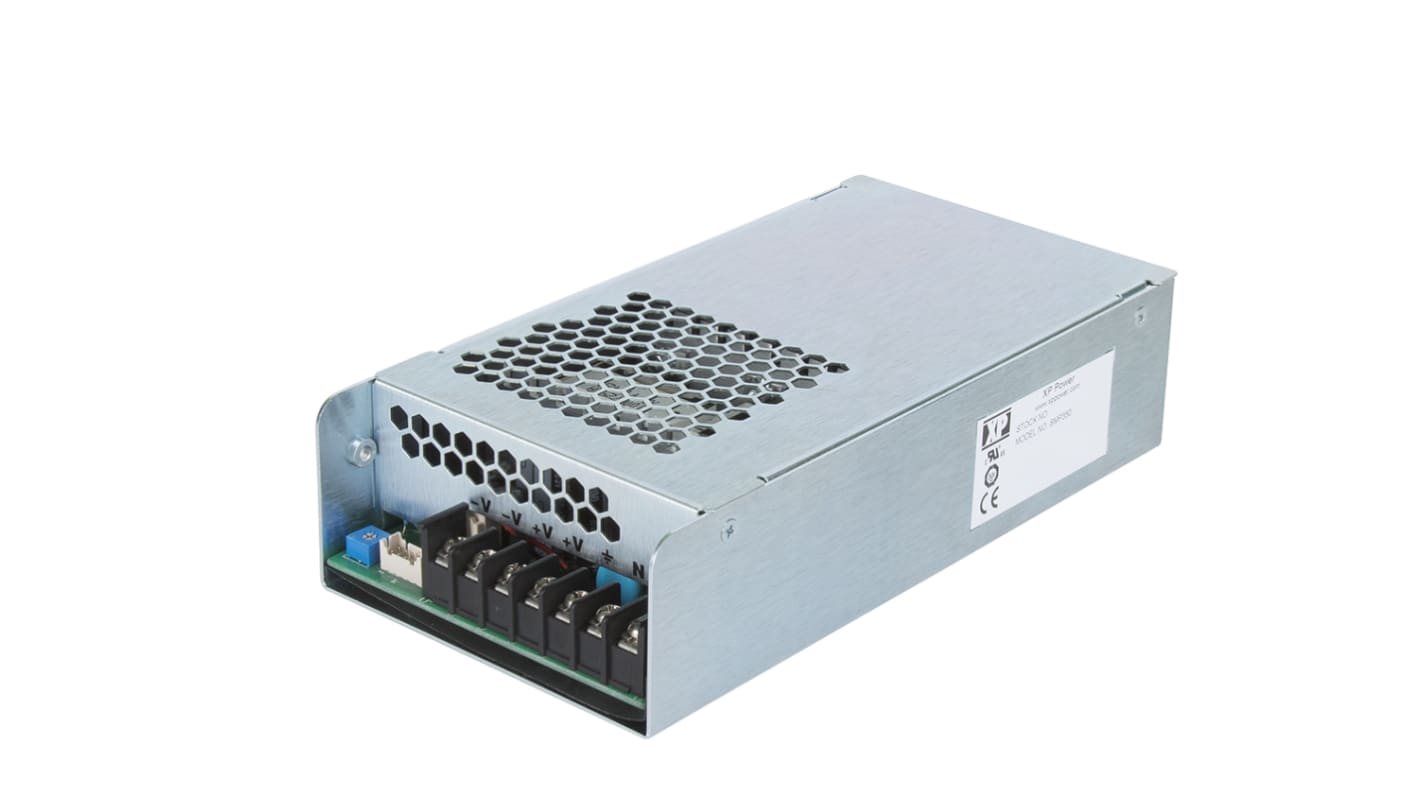

XP Power Switching Power Supply, SMP350PS18, 18V dc, 17.8A, 320 (90 → 180 V ac) W, 350 (180 → 264 V ac)

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

£115.47

(exc. VAT)

£138.56

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • Plus 1 left, shipping from 27 October 2025
  • Plus 2 left, shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£115.47
5 - 9£112.01
10 - 24£108.54
25 - 49£105.08
50 +£101.62

*price indicative

RS Stock No.:
172-0747
Distrelec Article No.:
301-83-690
Mfr. Part No.:
SMP350PS18
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

18V dc

Output Current

17.8 A, 19.4A

Power Rating

320 (90 → 180 V ac) W, 350 (180 → 264 V ac) W

Number of Outputs

1

Input Voltage

85 → 264V ac

Mounting Type

Chassis Mount

Package Type

Enclosed

Length

180.8mm

Width

91.4mm

Medical Approved

Yes

Depth

43.2mm

Efficiency

93%

Maximum Temperature

+70°C

Minimum Temperature

-40°C

Weight

0.68kg

The SMP350 series provides a range of rugged, enclosed, 300 – 350W supplies with integral fan, screw terminal connections and a wide operating temperature range of -40 °C to +70 °C ideally suited to a wide range of industrial applications. The SMP350 series features high efficiency for ease of integration into the end application and offers remote On/Off to simplify system control. Packaged in a 3.6” x 7” x 1.7” enclosure the series offers power densities up to 13 W/in3 providing a compact, high efficiency, low noise power solution.

Rugged Industrial Construction
-40 °C to +70 °C Operation
Screw Terminals
High Efficiency
Remote On/Off
Low Leakage Current
Class B Emissions
3 Year Warranty

Note

For operation in the 90 V ac to 180 V ac input range, refer to datasheet for output current and power ratings.
