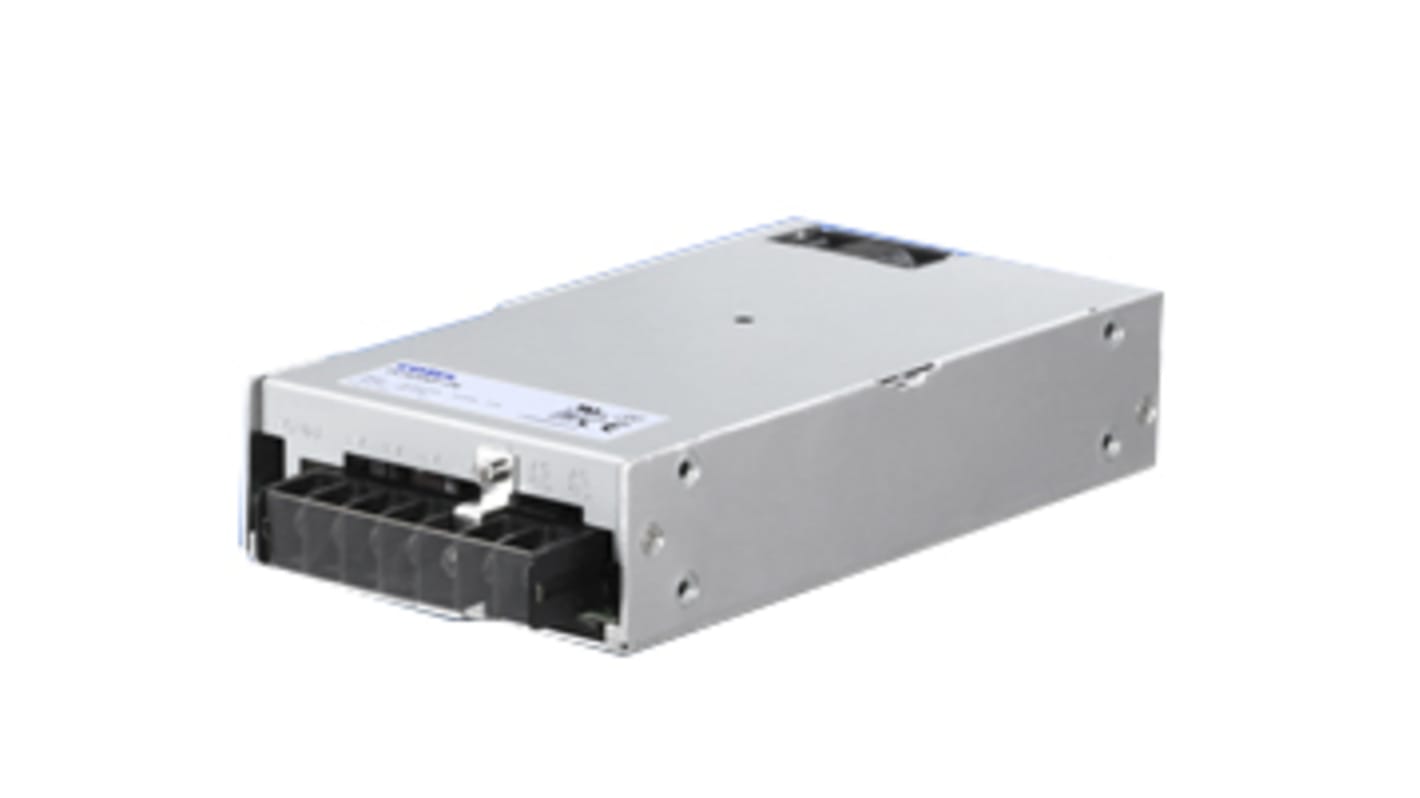

Cosel Switching Power Supply, PJA300F-24, 24V dc, 12.5A, 300W, 1 Output, 85 → 264V ac Input Voltage

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

£82.47

(exc. VAT)

£98.96

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
1 - 4£82.47
5 - 9£80.01
10 - 24£78.35
25 - 49£76.70
50 +£75.06

*price indicative

RS Stock No.:
171-1505
Mfr. Part No.:
PJA300F-24
Brand:
Cosel
Find similar products by selecting one or more attributes.
Select all

Brand

Cosel

Output Voltage

24V dc

Output Current

12.5A

Power Rating

300W

Number of Outputs

1

Input Voltage

85 → 264V ac

Mounting Type

Chassis Mount

Package Type

Enclosed

Length

195mm

Width

102mm

Depth

41mm

Efficiency

86%

Maximum Temperature

+70°C

Minimum Temperature

-20°C

Weight

1kg

COO (Country of Origin):
CN

Cosel Embedded Switch Mode Power Supply


The Cosel PJA series 300W single output AC to DC embedded switch-mode power supply has an output current of 12.5A at 24VDC. It has a compact design with a 25% smaller size (as compared to the PBA series) and low power consumption. It has a universal input supply voltage rating ranging from 85VAC to 264VAC. The power supply is installed per any required EMC/EMI regulations.

Features and Benefits


Wide temperature ranges between -20°C and 70°C
Harmonic attenuator
Optional connector (vertical terminal block, header connector)
Cost-effective
Longer life
Low profile (meets 1U height is equal to 41mm or 1.61in)
Slow fan speed at no load
Enclosed package type
Chassis mount

Certifications


UL62368-1
C-UL (CSA62368-1)
EN62368-1 complies with DEN-AN
FCC-B
VCCI-B
CISPR22-B
EN55011-B
EN55022-B
IEC61000-3-2 class A
