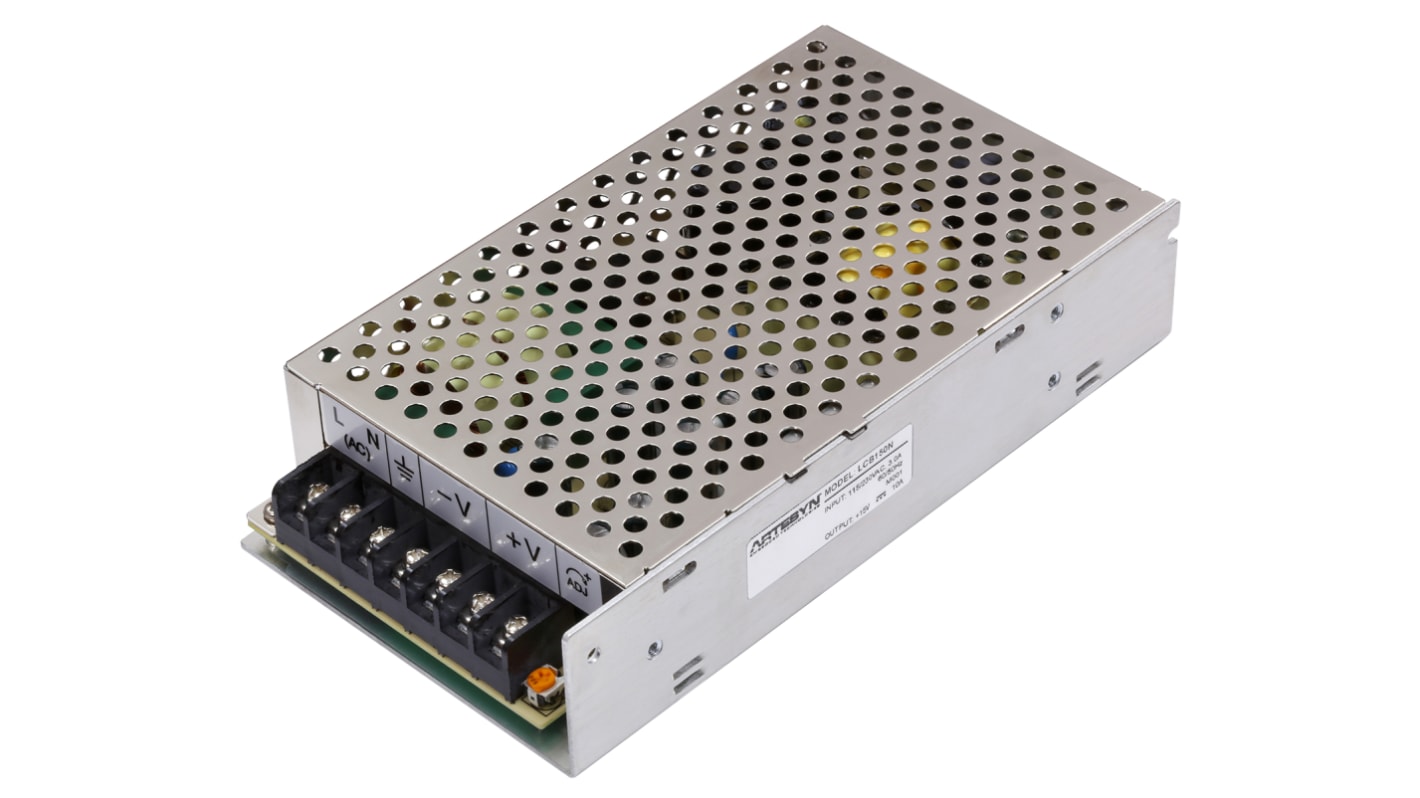

Artesyn Embedded Technologies Switching Power Supply, LCB150L, 12V dc, 12.5A, 150W, 1 Output, 176 → 264 V ac,

View all Switching Power Supplies
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
162-3625
Mfr. Part No.:
LCB150L
Brand:
Artesyn Embedded Technologies
Find similar products by selecting one or more attributes.
Select all

Brand

Artesyn Embedded Technologies

Output Voltage

12V dc

Output Current

12.5A

Power Rating

150W

Number of Outputs

1

Input Voltage

176 → 264 V ac, 248 → 373 V dc

Mounting Type

Chassis Mount

Package Type

Enclosed

Length

179mm

Width

98mm

Depth

38mm

Efficiency

88%

Minimum Temperature

-25°C

Maximum Temperature

+70°C

COO (Country of Origin):
CN
The LCB100 series of enclosed AC-DC power supplies provides a reliable, low cost solution for general-purpose industrial applications that require a single low voltage DC supply. The series comprises six single-output models, offering voltages of 3.3 V, 5 V, 12 V, 15 V, 24 V and 48 V. Each model accepts a universal 88–264 Vac input and is also capable of operating from a 125–373 Vdc input. The power supplies combine high efficiency – typically 89% (48V output) at full load with a 230 Vac input – with a very low no-load power consumption of just 0.5 watt.

No-load power consumption 0.5 W
25 °C to 70 °C with derating
High efficiency: 90% @ 230 Vac
Power ON with LED indicator
Withstand 5G vibration test
