EOS Switching Power Supply, ULP40-1348 48V, 830mA, 40 W, Input 264V ac to 390V
- RS Stock No.:
- 136-8827
- Mfr. Part No.:
- ULP40-1348
- Brand:
- EOS
Stock information currently inaccessible
- RS Stock No.:
- 136-8827
- Mfr. Part No.:
- ULP40-1348
- Brand:
- EOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EOS | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 48V | |
| Number of Outputs | 1 | |
| Mount Type | Surface | |
| Power | 40W | |
| Minimum Operating Temperature | -40°C | |
| SMPS Output Current | 830mA | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | cUL, NEMKO, RoHS, UL | |
| Weight | 100g | |
| Depth | 16.76mm | |
| Width | 50.8mm | |
| Length | 76.2mm | |
| Series | ULP | |
| Efficiency | 85% | |
| Maximum Input Voltage | 390V | |
| Minimum Input Voltage | 264V ac | |
| Output Current | 830mA | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand EOS | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 48V | ||
Number of Outputs 1 | ||
Mount Type Surface | ||
Power 40W | ||
Minimum Operating Temperature -40°C | ||
SMPS Output Current 830mA | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals cUL, NEMKO, RoHS, UL | ||
Weight 100g | ||
Depth 16.76mm | ||
Width 50.8mm | ||
Length 76.2mm | ||
Series ULP | ||
Efficiency 85% | ||
Maximum Input Voltage 390V | ||
Minimum Input Voltage 264V ac | ||
Output Current 830mA | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- IN

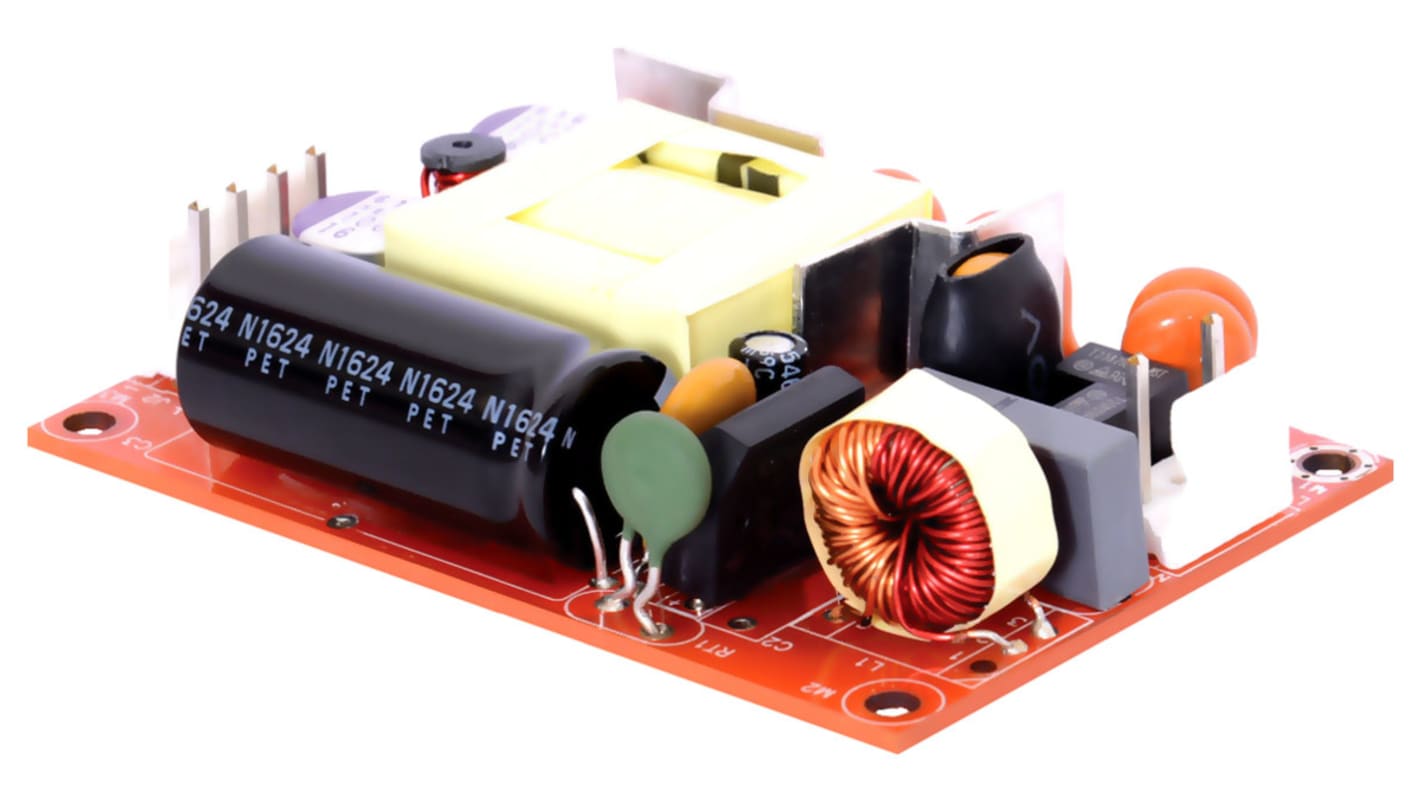

EOS ULP40 40 W Switch Mode Power Supply
Introducing the EOS Power 40 W ULP40 open frame switch mode Industrial power supply. The EOS Power Supplies have a universal input and are compact 3 x 2 x0.75 in in size.
Features and Benefits
• 3 x 2 x0.75 inch Form factor
• 40 W Convection
• Efficiencies 85% Typical
• -40 to 70°C operating temperature
• 2 m Hours, Telcordia - SR332 – issue 3 MTBF
• Standby Power < 0.3 W;• Cover Kit for (M) ULP40 Series st.no.1368833
