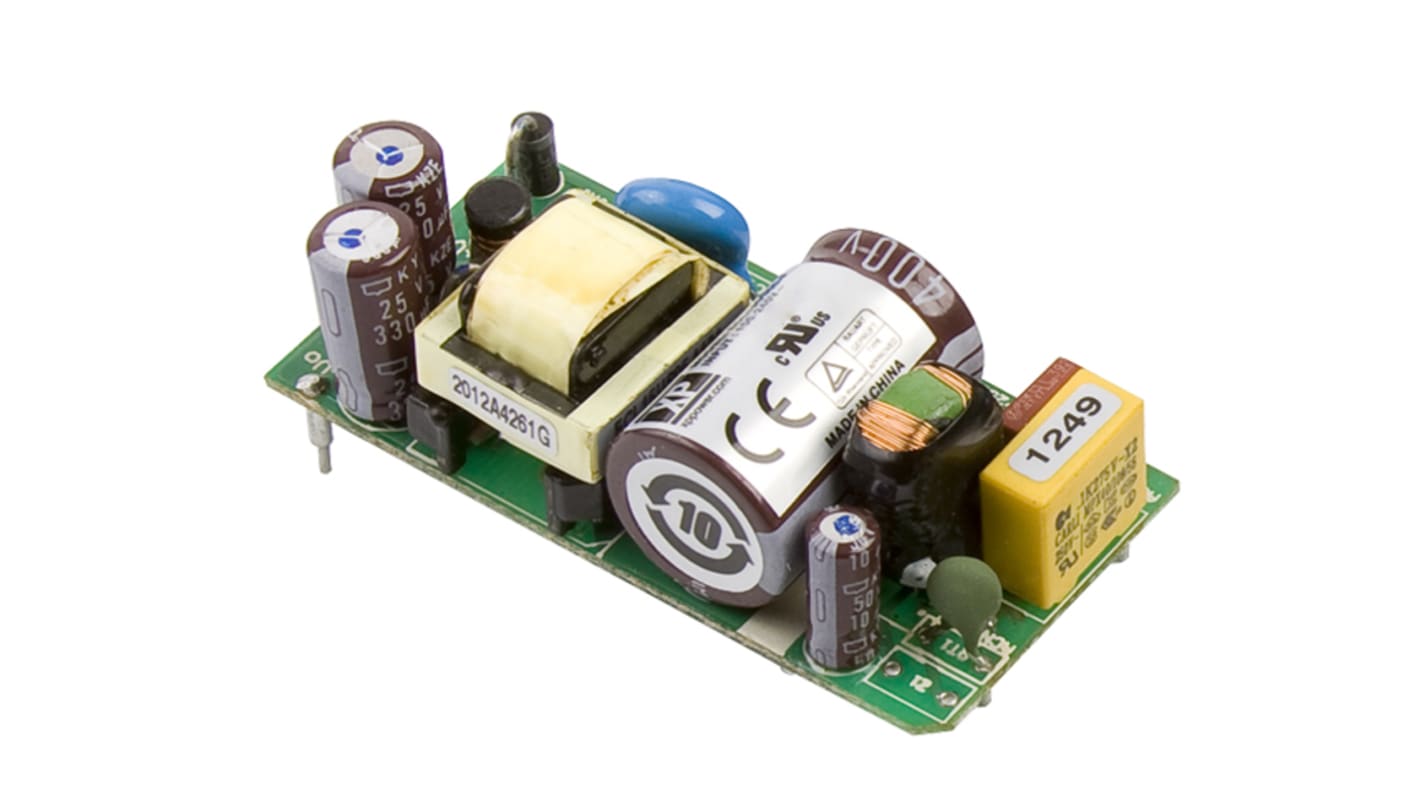

XP Power Switching Power Supply, ECL15US12-P 12V dc, 1.25A, 15 W, Input 85V ac to 264V ac
- RS Stock No.:
- 122-7752
- Distrelec Article No.:
- 302-24-423
- Mfr. Part No.:
- ECL15US12-P
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£25.11
(exc. VAT)
£30.13
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 27 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £25.11 |
| 5 - 9 | £24.36 |
| 10 - 24 | £23.60 |
| 25 - 49 | £22.85 |
| 50 + | £22.10 |
*price indicative
- RS Stock No.:
- 122-7752
- Distrelec Article No.:
- 302-24-423
- Mfr. Part No.:
- ECL15US12-P
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 12V dc | |
| Number of Outputs | 1 | |
| Mount Type | PCB | |
| Power | 15W | |
| SMPS Output Current | 1.25A | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Depth | 20mm | |
| Length | 62mm | |
| Standards/Approvals | EN 55022, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-3-4-2, EN 61000-3-4-3, EN 61000-4-11, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, UL 60950-1 | |
| Weight | 35g | |
| Width | 30.7mm | |
| Efficiency | 80% | |
| Series | ECL | |
| Maximum Input Voltage | 264V ac | |
| Output Current | 1.25A | |
| Hazardous Area Certification | No | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 12V dc | ||
Number of Outputs 1 | ||
Mount Type PCB | ||
Power 15W | ||
SMPS Output Current 1.25A | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Depth 20mm | ||
Length 62mm | ||
Standards/Approvals EN 55022, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-3-4-2, EN 61000-3-4-3, EN 61000-4-11, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, UL 60950-1 | ||
Weight 35g | ||
Width 30.7mm | ||
Efficiency 80% | ||
Series ECL | ||
Maximum Input Voltage 264V ac | ||
Output Current 1.25A | ||
Hazardous Area Certification No | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- CN
XP Power - ECL Series of 5-30 W AC-DC Power Supplies
The ECL series from XP Power offers an excellent range of single, dual and triple output, 5 W to 30 W, AC-DC power supplies. These ultra-compact power supplies are available in open-frame PCB, open-frame chassis mount, encapsulated PCB and encapsulated chassis mount versions. The range attributes less than 0.3 W no load input power, peak load capability and a high efficiency of up to 84%.
5 W to 30 W AC-DC power supplies
Single, dual and triple outputs
Encapsulated PCB and chassis mount versions
Open-frame PCB and chassis mount versions
Ultra-compact size
<0.3 W no load input power
Peak load capability
High efficiency up to 84%
-20 °C to +70 °C Operating temperature
