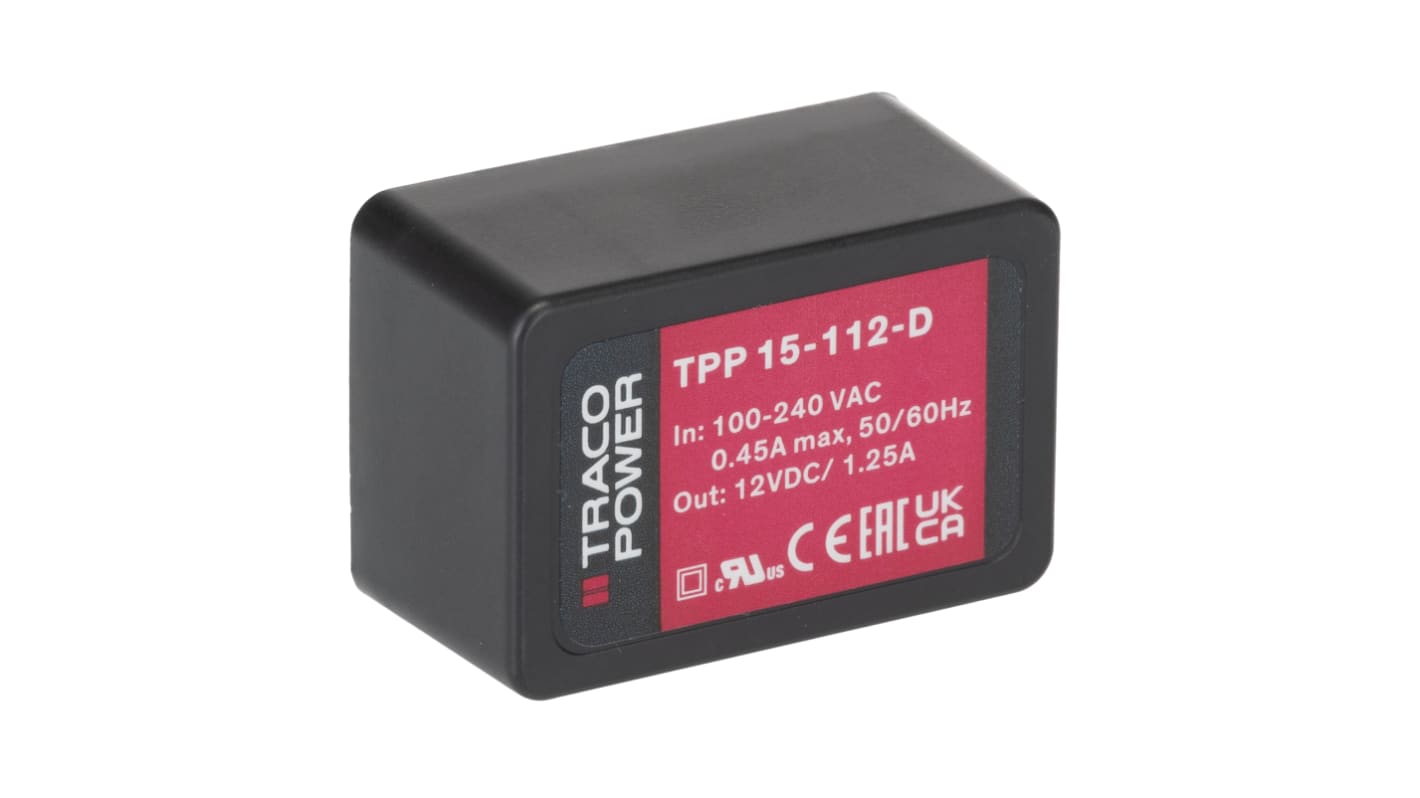

TRACOPOWER Switching Power Supply, TPP 15-112-D 12V dc, 1.25A, 15 W, Input 85V ac to 264V ac

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

£34.55

(exc. VAT)

£41.46

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 17 unit(s) ready to ship from another location
  • Plus 7 unit(s) shipping from 24 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£34.55
5 - 9£33.51
10 - 24£32.48
25 - 49£31.10
50 +£29.71

*price indicative

RS Stock No.:
177-0173
Mfr. Part No.:
TPP 15-112-D
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

Switching Power Supply

Maximum Output Voltage

12V dc

Number of Outputs

1

Mount Type

PCB

Power

15W

SMPS Output Current

1.25A

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

IEC 60601-1, EN 60601-1, ANSI/AAMI ES 60601-1, UL 62368-1, IEC 62368-1, EN 62368-1

Width

28.9mm

Weight

43g

Length

42mm

Depth

21.5mm

Efficiency

87%

Series

TPP 15-D

Maximum Input Voltage

264V ac

Hazardous Area Certification

No

Minimum Input Voltage

85V ac

Output Current

1.25A

COO (Country of Origin):
TW

TRACOPOWER TPP 15-D Series Switching Power Supply, 15W Power Rating, 120 to 370V DC/85 to 264V AC Input Voltage - TPP 15-112-D


This switching power supply offers a stable 12V DC output, suitable for various applications. Its compact dimensions of 42x28.9x21.5mm facilitate easy PCB mounting. It adheres to medical safety standards and features enhanced isolation for the protection of sensitive equipment.

Features & Benefits


• Reinforced double I/O isolation promotes user safety

• Efficient operation with up to 88.5% energy conversion

• Compact design supports space-saving installations

• Medical approval for BF (body floating) applications

Applications


• Compatible with medical devices requiring stable power

• Utilised in automation systems for accurate control

• Suitable for portable electronics needing compact power sources

• Employed in testing equipment for consistent performance

Can it operate under extreme temperature conditions?


Yes, it functions within -40°C to +85°C with derating.

Is it suitable for use in medical devices?


Yes, it conforms to IEC/EN/ES 60601-1 safety standards.

Will it fit on a standard PCB mount?


Yes, it is specifically designed for PCB mounting applications.

Does it have good energy efficiency?


Yes, it achieves up to 88.5% efficiency during operation.
