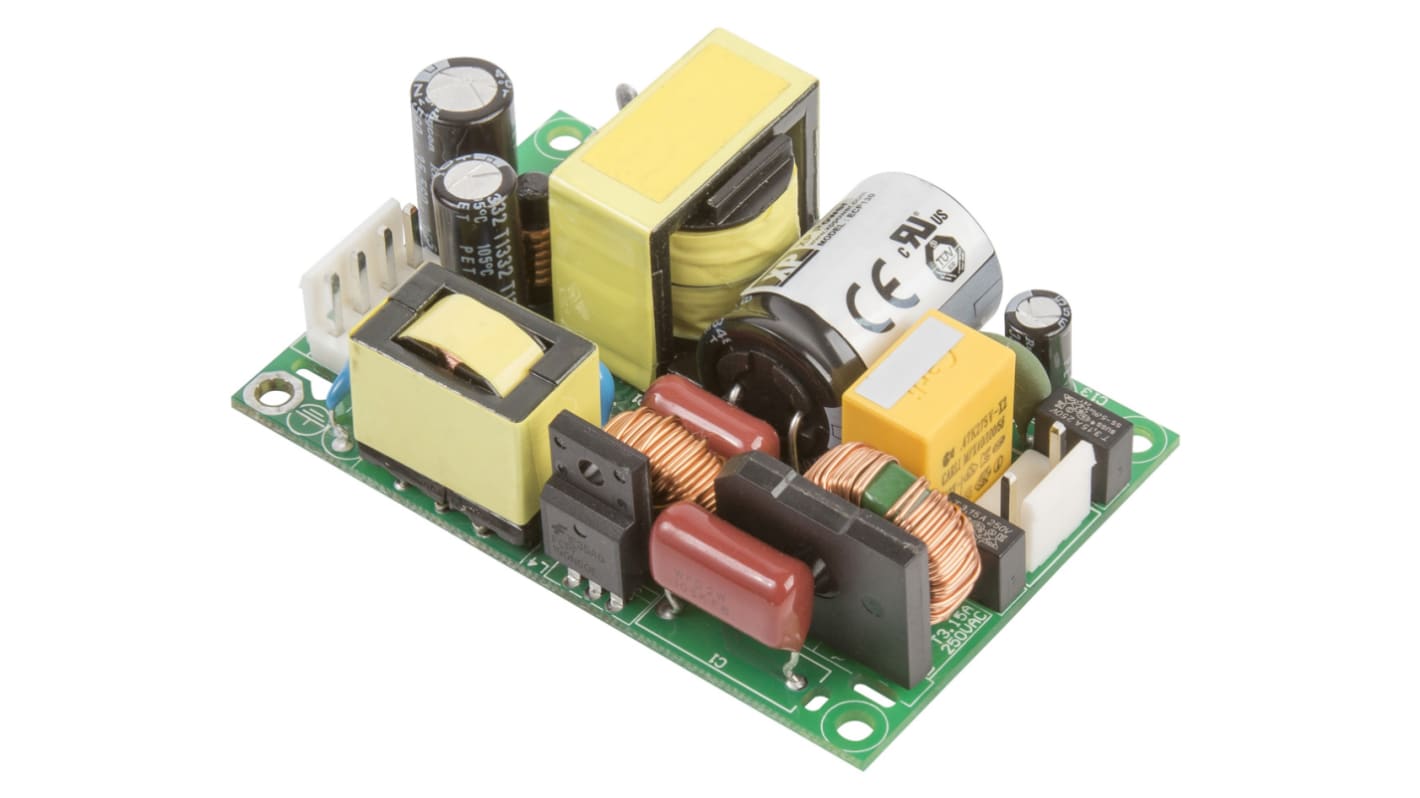

XP Power Switching Power Supply, ECP130PS24, 24V dc, 5.41A, 130W, 1 Output, 85 → 264V ac Input Voltage

View all Switching Power Supplies

Subtotal (1 unit)*

£51.37

(exc. VAT)

£61.64

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 725 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£51.37

*price indicative

RS Stock No.:
122-7587
Distrelec Article No.:
302-24-437
Mfr. Part No.:
ECP130PS24
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

24V dc

Output Current

5.41A

Power Rating

130W

Number of Outputs

1

Input Voltage

85 → 264V ac

Mounting Type

Chassis Mount

Package Type

Open Frame

Length

76.2mm

Width

50.8mm

Medical Approved

Yes

Depth

24.1mm

Minimum Temperature

-30°C

Maximum Temperature

+80°C

Weight

195g

COO (Country of Origin):
TW

XP Power - ECP130 Series Switch Mode Power Supply


XP Power ECP130 series of 130 W power supply provides the user with a low cost chassis mount power solution to a wide variety of applications. The ECP130 series offers an output voltage of 12 to 48 V, with a very low load input power of <0.3 W. The series has been designed to adhere to the latest environmental legislation.

The low profile nature of the series offers a compact & reliable medical and ITE approved range of power supplies.


Features and Benefits

100 W convection / 130 W forced-cooled rating.
Medical & ITE approved.
0.5 W no load input power.
Up to 95% efficiency.
2" x 3" footprint, with a low 1.1" profile.
