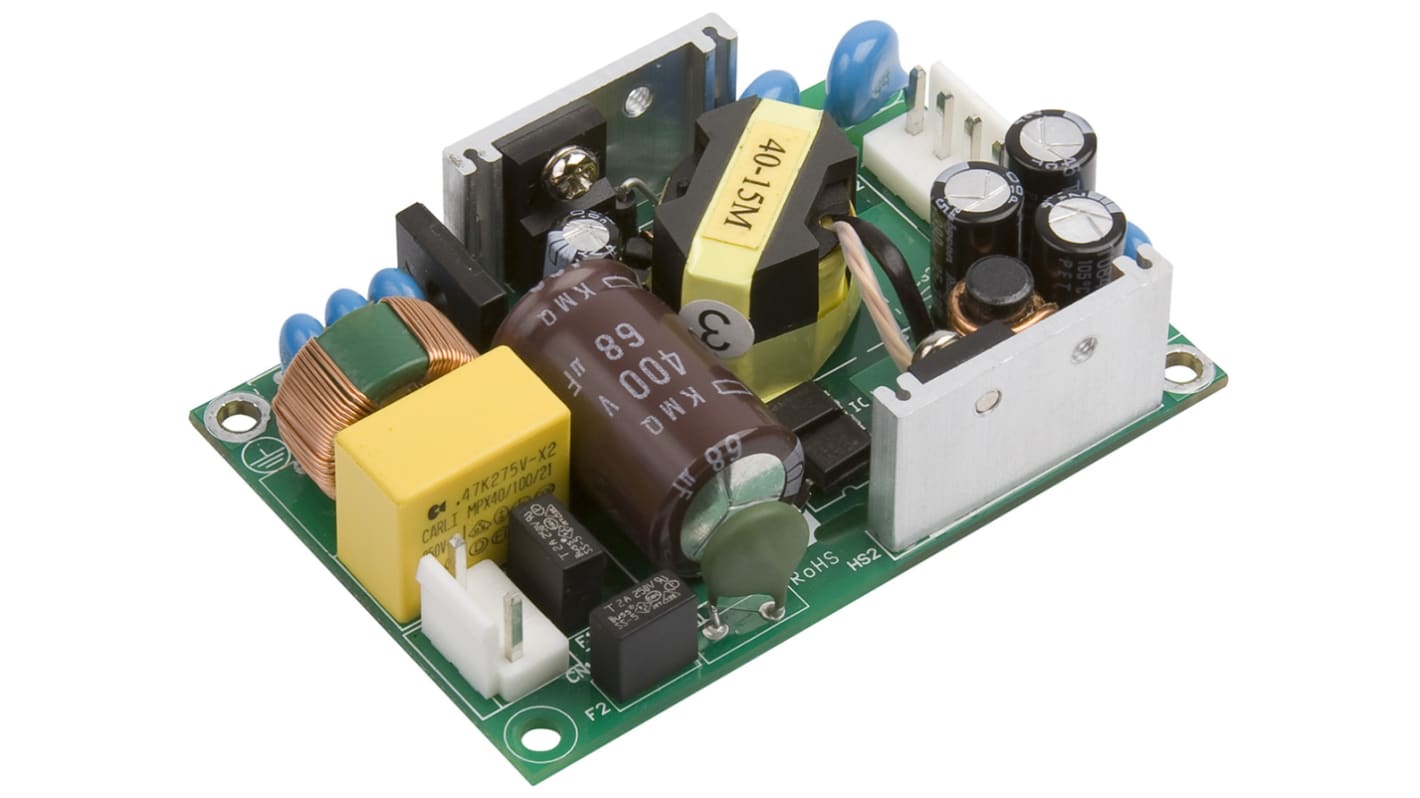

XP Power Switching Power Supply, ECP40US12, 12V dc, 3.34A, 40W, 1 Output, 85 → 264V ac Input Voltage

Bulk discount available

Subtotal (1 unit)*

£40.02

(exc. VAT)

£48.02

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 5 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£40.02
5 - 9£38.82
10 - 24£37.62
25 - 49£36.42
50 +£35.23

*price indicative

RS Stock No.:
122-7103
Mfr. Part No.:
ECP40US12
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

12V dc

Output Current

3.34A

Power Rating

40W

Number of Outputs

1

Input Voltage

85 → 264V ac

Mounting Type

Chassis Mount

Package Type

Open Frame

Length

76.2mm

Width

50.8mm

Medical Approved

Yes

Depth

20.6mm

Minimum Temperature

-10°C

Weight

80g

Maximum Temperature

+70°C

COO (Country of Origin):
TW

XP Power - ECP40 Series of Power Supplies


The ECP40 series from XP Power offers an excellent range of single, dual and triple output, 40 W power supplies, all of which have been IT and medically approved. These ultra-compact, open frame power supplies all feature peak load capability and a three year warranty. The range also features less than 0.3 W no load input power and is packaged in a 3” x 2” footprint and a 0.9” ultra-low profile height.

40 W, AC-DC power supplies
Single, dual and triple outputs
IT and medically approved
-10 °C to +70 °C Operating temperature
<0.3 W no load input power
Peak load capability
3” x 2” packaging footprint
0.9” Ultra-low profile height
High efficiency of up to 92%
Open frame
