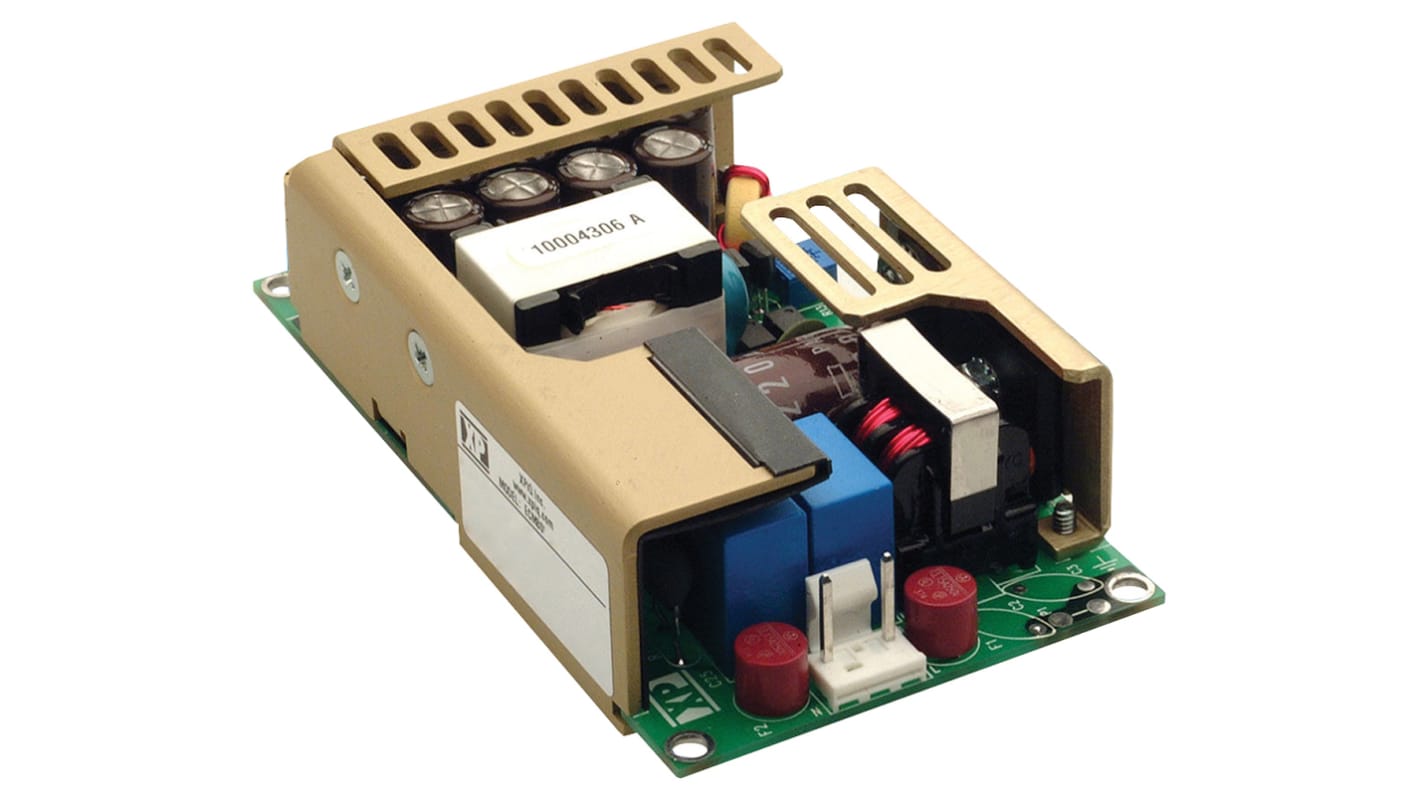

XP Power Switching Power Supply, ECM100US48, 48V dc, 2.1A, 100W, 1 Output, 120 → 370 V dc, 90 → 264 V ac
- RS Stock No.:
- 122-7054
- Distrelec Article No.:
- 302-41-455
- Mfr. Part No.:
- ECM100US48
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£75.28
(exc. VAT)
£90.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 90 unit(s) ready to ship
- Plus 1 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £75.28 |
5 - 9 | £73.02 |
10 - 24 | £70.77 |
25 - 49 | £68.51 |
50 + | £66.25 |
*price indicative
- RS Stock No.:
- 122-7054
- Distrelec Article No.:
- 302-41-455
- Mfr. Part No.:
- ECM100US48
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | XP Power | |
Output Voltage | 48V dc | |
Output Current | 2.1A | |
Power Rating | 100W | |
Number of Outputs | 1 | |
Input Voltage | 120 → 370 V dc, 90 → 264 V ac | |
Mounting Type | Chassis Mount | |
Package Type | Open Frame | |
Length | 114.3mm | |
Width | 63.5mm | |
Medical Approved | Yes | |
Depth | 27mm | |
Minimum Temperature | 0°C | |
Maximum Temperature | +70°C | |
Weight | 180g | |
Select all | ||
---|---|---|
Brand XP Power | ||
Output Voltage 48V dc | ||
Output Current 2.1A | ||
Power Rating 100W | ||
Number of Outputs 1 | ||
Input Voltage 120 → 370 V dc, 90 → 264 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Open Frame | ||
Length 114.3mm | ||
Width 63.5mm | ||
Medical Approved Yes | ||
Depth 27mm | ||
Minimum Temperature 0°C | ||
Maximum Temperature +70°C | ||
Weight 180g | ||
XP Power - ECM100 Series of AC-DC Power Supplies
The ECM series from XP Power offers an excellent range of open frame, 100 W AC-DC power supplies, all of which are IT and medically approved. These highly reliable, compact power supplies all feature either a class I or class II construction. The range is convection-cooled and has an operating temperature from 0 °C to +70 °C Operating temperature.
100 W open frame, AC-DC power supplies
80-85% Efficiency
IT and medically approved
Class I and Class II construction
DC Input version available (DCM series)
80-85% Efficiency
IT and medically approved
Class I and Class II construction
DC Input version available (DCM series)
Switch Mode - XP Power
