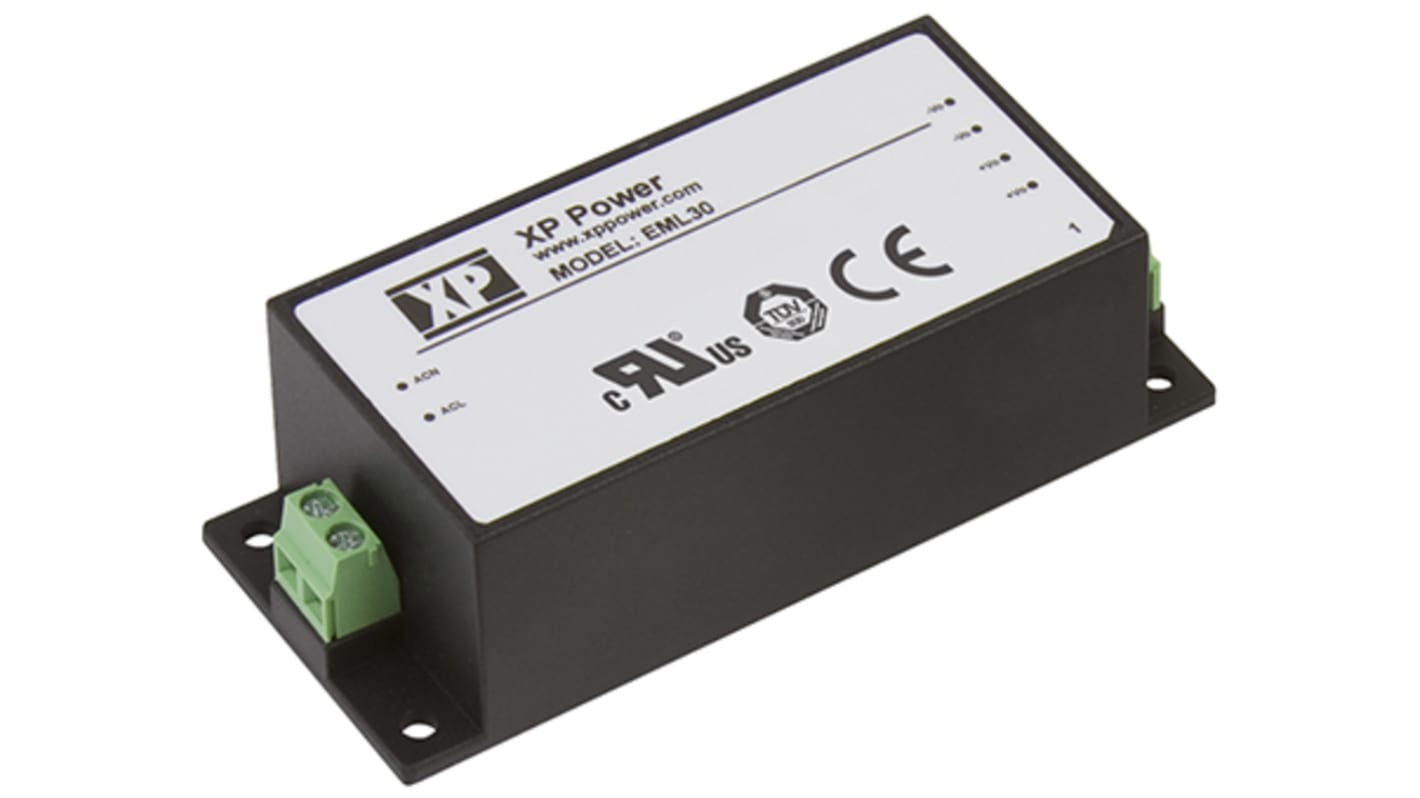

XP Power Switching Power Supply, EML30US36-S 36V dc, 830mA, 30 W, Input 85V ac to 264V ac
- RS Stock No.:
- 122-6611
- Mfr. Part No.:
- EML30US36-S
- Brand:
- XP Power
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 122-6611
- Mfr. Part No.:
- EML30US36-S
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 36V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 30W | |
| Minimum Operating Temperature | -20°C | |
| SMPS Output Current | 830mA | |
| Maximum Operating Temperature | 70°C | |
| Depth | 28.5mm | |
| Weight | 170g | |
| Standards/Approvals | ANSI/AAMI ES 60601-1, EN 60601-1/A12, IEC 60601-1 | |
| Length | 96mm | |
| Width | 40mm | |
| Series | EML | |
| Efficiency | 88% | |
| Maximum Input Voltage | 264V ac | |
| Minimum Input Voltage | 85V ac | |
| Output Current | 830mA | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 36V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 30W | ||
Minimum Operating Temperature -20°C | ||
SMPS Output Current 830mA | ||
Maximum Operating Temperature 70°C | ||
Depth 28.5mm | ||
Weight 170g | ||
Standards/Approvals ANSI/AAMI ES 60601-1, EN 60601-1/A12, IEC 60601-1 | ||
Length 96mm | ||
Width 40mm | ||
Series EML | ||
Efficiency 88% | ||
Maximum Input Voltage 264V ac | ||
Minimum Input Voltage 85V ac | ||
Output Current 830mA | ||
Hazardous Area Certification NO | ||
- COO (Country of Origin):
- CN
XP EMCO - EML30 Series of AC-DC Power Supplies
The EML30 series from XP Power offers a highly reliable range of open frame and encapsulated AC-DC single output power supplies. The series has been primarily designed for medical applications and meets worldwide medical safety standards, in compliance to class B with conducted and radiated emissions. This compact, class II designed range has a single output range from 3.3 V to 48 V and features a 130%, 30s peak load capability.
30 W
Single Outputs from 3.3 V to 48 V
Mechanical options include PCB mount, open frame, chassis mount
Meets worldwide medical safety standards
130%, 30s Peak load capability
Class II design
