Cosel, PJMA600F-12 Switching Power Supply 12V, 600 W 264V ac
- RS Stock No.:
- 638-132
- Mfr. Part No.:
- PJMA600F-12
- Brand:
- Cosel
Subtotal (1 box of 5 units)*
£1,133.32
(exc. VAT)
£1,359.98
(inc. VAT)
FREE delivery for orders over £60.00
New product - Preorder today
- Shipping from 11 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £1,133.32 | £226.664 |
*price indicative
- RS Stock No.:
- 638-132
- Mfr. Part No.:
- PJMA600F-12
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 12V | |
| Number of Outputs | 1 | |
| Power | 600W | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Weight | 2kg | |
| Standards/Approvals | ANSI/AAMI ES60601-1, EN60601-1 3rd, C-UL (CAN/CSA-C22.2 No.60601-1), CE, RoHS, FCC Part 15-B, FCC Part 18-B, CISPR11-B, CISPR32-B, EN55011-B, EN55032-B, VCCI-B, EN61204-3, EN61000-6-2, IEC60601-1-2 (2014), IEC60601-1-2 (2015), EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, IEC61000-3-2 class A, UKCA | |
| Length | 61mm | |
| Depth | 215mm | |
| Width | 102mm | |
| Series | PJMA | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 0.8% | |
| Output Current | 50A | |
| Minimum Input Voltage | 85V | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 12V | ||
Number of Outputs 1 | ||
Power 600W | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Weight 2kg | ||
Standards/Approvals ANSI/AAMI ES60601-1, EN60601-1 3rd, C-UL (CAN/CSA-C22.2 No.60601-1), CE, RoHS, FCC Part 15-B, FCC Part 18-B, CISPR11-B, CISPR32-B, EN55011-B, EN55032-B, VCCI-B, EN61204-3, EN61000-6-2, IEC60601-1-2 (2014), IEC60601-1-2 (2015), EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, IEC61000-3-2 class A, UKCA | ||
Length 61mm | ||
Depth 215mm | ||
Width 102mm | ||
Series PJMA | ||
Maximum Input Voltage 264V ac | ||
Efficiency 0.8% | ||
Output Current 50A | ||
Minimum Input Voltage 85V | ||
- COO (Country of Origin):
- CN

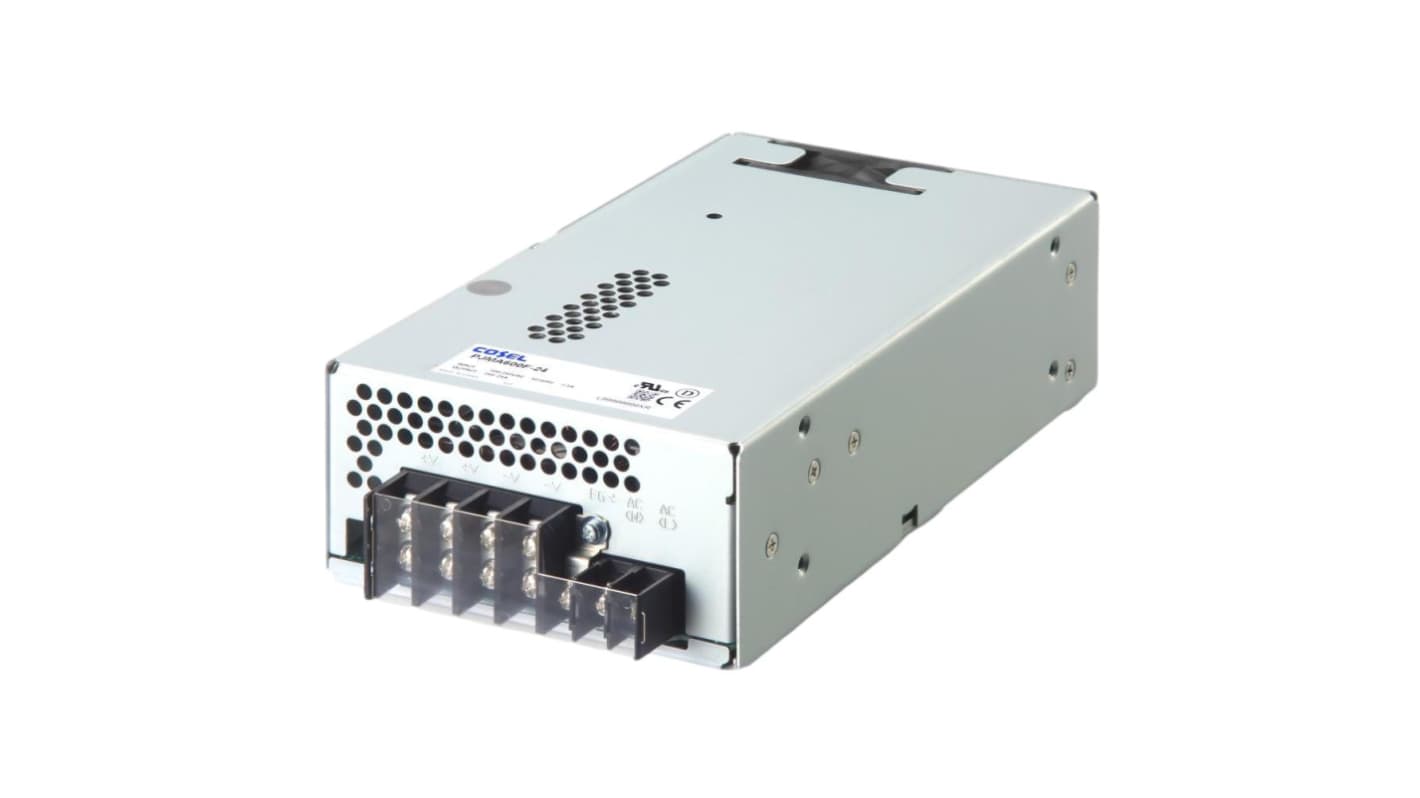

The Cosel Enclosed AC-DC power supply engineered for medical and industrial systems requiring high reliability and safety. It operates from a universal 85 to 264VAC input and features forced-air cooling and 4kV reinforced insulation. With a wide temperature range and low no-load power consumption, it delivers stable performance in demanding environments.
Economical design
Harmonic attenuator
RoHS compliant
CE and UKCA compliant
