MEAN WELL, HEP-1000-24W Switching Power Supply 24V, 1.008 kW 431 V dc, 305V ac
- RS Stock No.:
- 588-973
- Mfr. Part No.:
- HEP-1000-24W
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£327.08
(exc. VAT)
£392.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 11 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £327.08 |
*price indicative
- RS Stock No.:
- 588-973
- Mfr. Part No.:
- HEP-1000-24W
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 24V | |
| Number of Outputs | 1 | |
| Power | 1.008kW | |
| Minimum Operating Temperature | -40°C | |
| SMPS Output Current | 42A | |
| Maximum Operating Temperature | 70°C | |
| Length | 310mm | |
| Depth | 48.5mm | |
| Weight | 4kg | |
| Standards/Approvals | EAC TP TC 004, EN6051 (by request), EN615581 (by request), TUV EN6681, UL6681 | |
| Width | 144mm | |
| Series | HEP-1000 | |
| Efficiency | 96% | |
| Maximum Input Voltage | 431, 305V dc | |
| Output Current | 42A | |
| Hazardous Area Certification | No | |
| Minimum Input Voltage | 90V ac | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 24V | ||
Number of Outputs 1 | ||
Power 1.008kW | ||
Minimum Operating Temperature -40°C | ||
SMPS Output Current 42A | ||
Maximum Operating Temperature 70°C | ||
Length 310mm | ||
Depth 48.5mm | ||
Weight 4kg | ||
Standards/Approvals EAC TP TC 004, EN6051 (by request), EN615581 (by request), TUV EN6681, UL6681 | ||
Width 144mm | ||
Series HEP-1000 | ||
Efficiency 96% | ||
Maximum Input Voltage 431, 305V dc | ||
Output Current 42A | ||
Hazardous Area Certification No | ||
Minimum Input Voltage 90V ac | ||
- COO (Country of Origin):
- TW

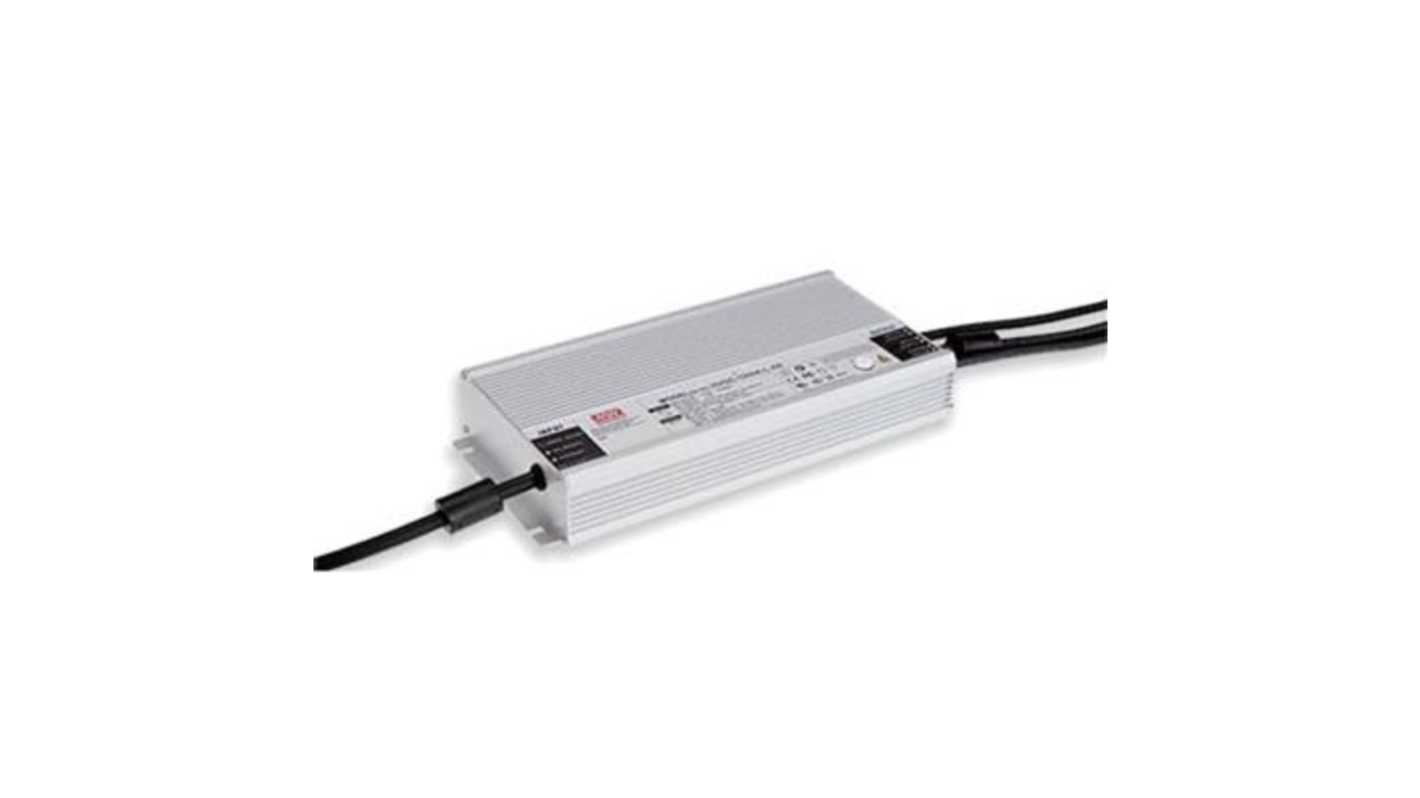

The MEANWELL Industrial AC/DC power supply featuring the outstanding capability to operate under highly humid, dusty oily and high vibration harsh environment. It is housed with aluminium casing and fully potted with heat-conducted glue. It has the complete protection functions and 10G anti-vibration capability.
IP67 protection
Protection against short circuit and overload
Protection against Over voltage and over temperature
CE and UKCA compliant
