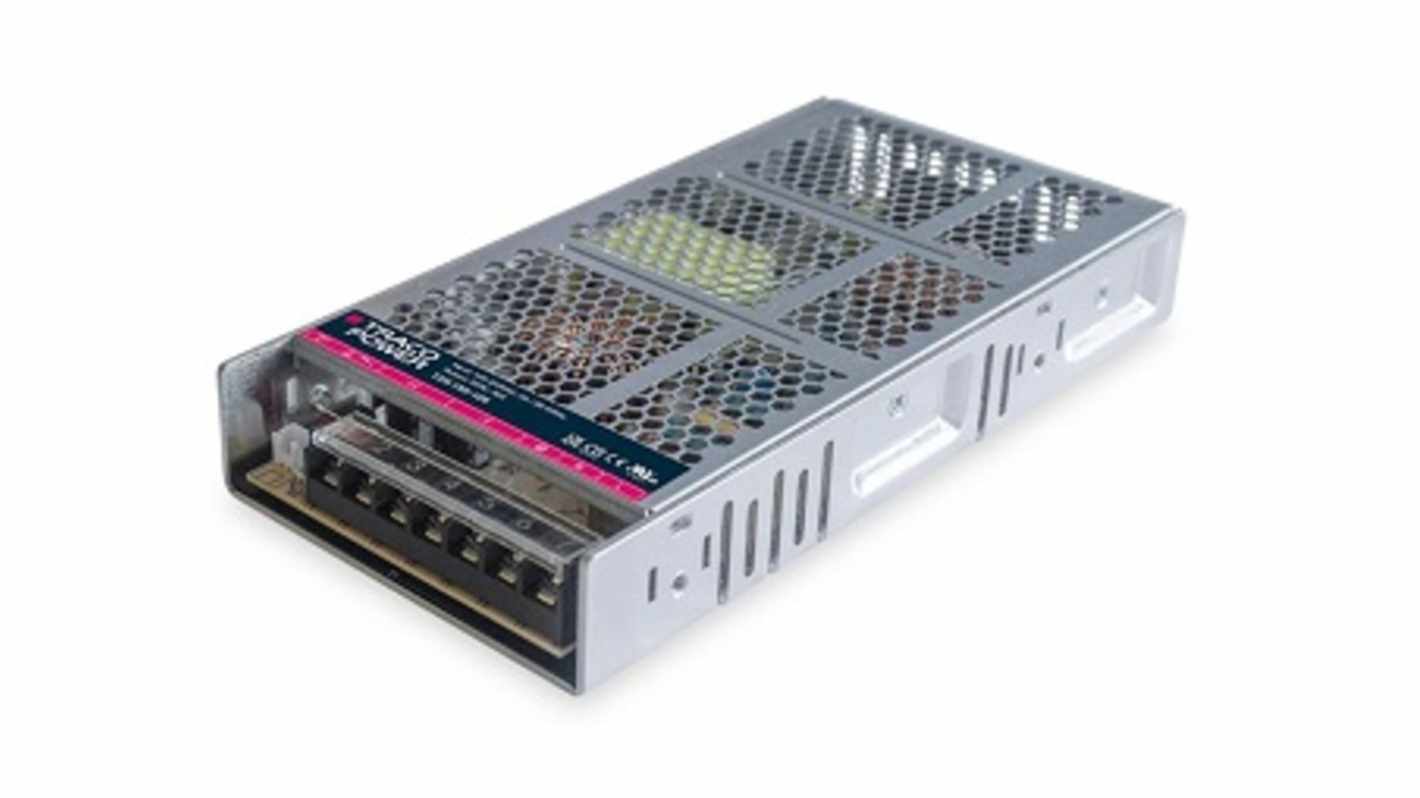

TRACOPOWER Switching Power Supply, TXN 150-148 48V dc, 30000mA, 150 W, Input 90V ac to 264V ac
- RS Stock No.:
- 588-585
- Mfr. Part No.:
- TXN 150-148
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£34.39
(exc. VAT)
£41.27
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 14 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £34.39 |
*price indicative
- RS Stock No.:
- 588-585
- Mfr. Part No.:
- TXN 150-148
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 48V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 150W | |
| Minimum Operating Temperature | 30°C | |
| SMPS Output Current | 30000mA | |
| Maximum Operating Temperature | 70°C | |
| Width | 70mm | |
| Weight | 600g | |
| Depth | 99mm | |
| Length | 199mm | |
| Standards/Approvals | EN 62368-1, UL 62368-1, IEC 62368-1 | |
| Series | TXN 150 | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 90% | |
| Hazardous Area Certification | NO | |
| Output Current | 3.2mA | |
| Minimum Input Voltage | 90V ac | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 48V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 150W | ||
Minimum Operating Temperature 30°C | ||
SMPS Output Current 30000mA | ||
Maximum Operating Temperature 70°C | ||
Width 70mm | ||
Weight 600g | ||
Depth 99mm | ||
Length 199mm | ||
Standards/Approvals EN 62368-1, UL 62368-1, IEC 62368-1 | ||
Series TXN 150 | ||
Maximum Input Voltage 264V ac | ||
Efficiency 90% | ||
Hazardous Area Certification NO | ||
Output Current 3.2mA | ||
Minimum Input Voltage 90V ac | ||
- COO (Country of Origin):
- CN
The TRACOPOWER AC/DC Power Supply is a cost-efficient solution designed for industrial applications. It features a low-profile metal enclosure and screw terminal block for easy installation. Provides reinforced I/O isolation of 3000 VAC and active power factor correction greater than 0.9.
Compact metal case with screw terminal block
Internal EN 55032 class B filter
IEC/EN/UL 62368-1 safety approvals
Chassis mount
