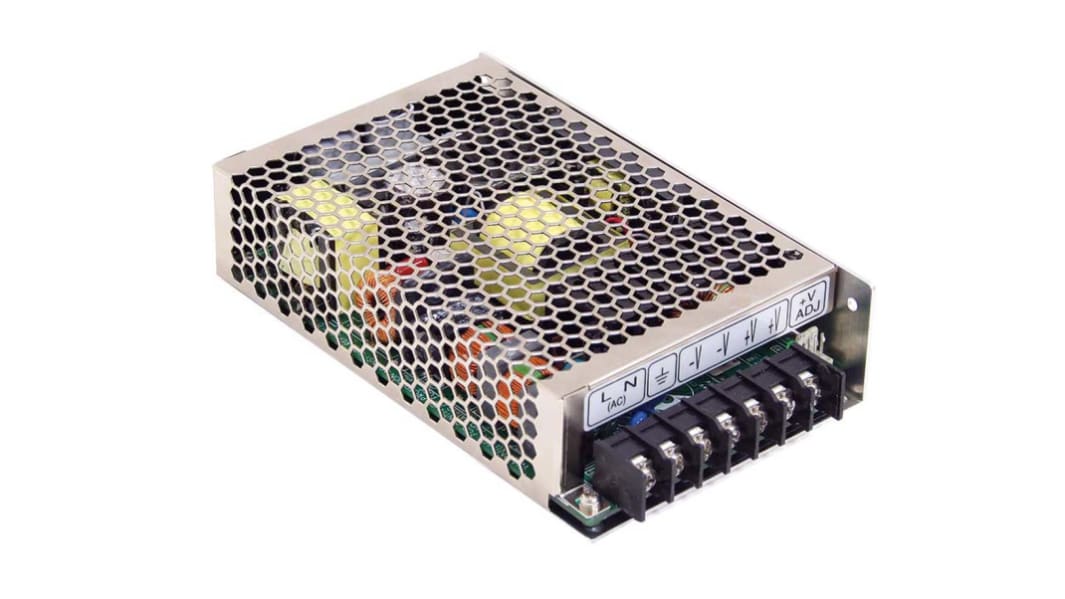

MEAN WELL Switching Power Supply, HRP-150-5, 5V dc, 26A, 130W, 1 Output, 120 → 370 V dc, 85 → 264 V ac
- RS Stock No.:
- 424-291
- Mfr. Part No.:
- HRP-150-5
- Brand:
- MEAN WELL
4 In stock - FREE next working day delivery available
Price Each
£66.78
(exc. VAT)
£80.14
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £66.78 |
5 - 9 | £65.11 |
10 - 24 | £63.45 |
25 - 49 | £61.78 |
50 + | £56.77 |
- RS Stock No.:
- 424-291
- Mfr. Part No.:
- HRP-150-5
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details
HRP-150 Series Single Output Power Supply With PFC Function
High efficiency, long life and high reliability
No load power consumption <0.5W
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
Short circuit, over load, over voltage and over temperature protection
Withstands 300Vac surge input for 5 seconds
1U low profile 38mm
Power factor correction to EN61000-3-2,-3
EMC compliance to EN55022 class B
No load power consumption <0.5W
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
Short circuit, over load, over voltage and over temperature protection
Withstands 300Vac surge input for 5 seconds
1U low profile 38mm
Power factor correction to EN61000-3-2,-3
EMC compliance to EN55022 class B
Note
Power derates above 40°C.
MTBF to MIL-HDBK-217F.
MTBF to MIL-HDBK-217F.
Standards
UL60950-1, TUV EN60950-1
Approvals
UL/cUL recognised, TUV, CB
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Output Current | 26A |
Power Rating | 130W |
Number of Outputs | 1 |
Input Voltage | 120 → 370 V dc, 85 → 264 V ac |
Mounting Type | Chassis Mount |
Package Type | Enclosed |
Length | 159mm |
Width | 97mm |
Depth | 38mm |
Efficiency | 85% |
Weight | 610g |
Minimum Temperature | -40°C |
Maximum Temperature | +70°C |
