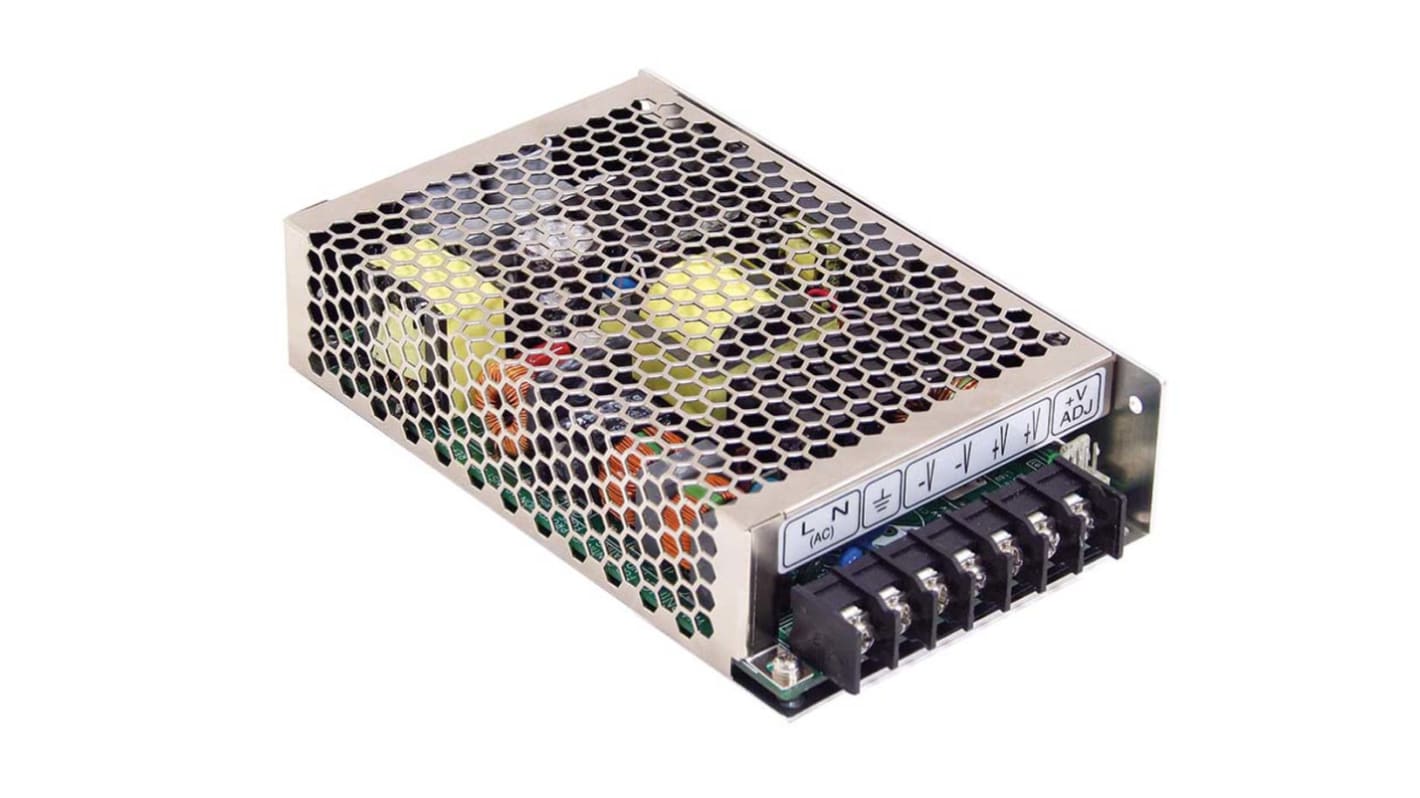

MEAN WELL Switching Power Supply, HRP-150-36 36V dc, 4.3A, 154.8 W, Input 85V ac to 370 V dc, 264V ac
- RS Stock No.:
- 678-3798
- Distrelec Article No.:
- 303-72-403
- Mfr. Part No.:
- HRP-150-36
- Brand:
- MEAN WELL
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£78.00
(exc. VAT)
£93.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £78.00 |
| 5 - 9 | £76.05 |
| 10 - 24 | £74.10 |
| 25 - 49 | £72.15 |
| 50 + | £66.31 |
*price indicative
- RS Stock No.:
- 678-3798
- Distrelec Article No.:
- 303-72-403
- Mfr. Part No.:
- HRP-150-36
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 36V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 154.8W | |
| Minimum Operating Temperature | -40°C | |
| SMPS Output Current | 4.3A | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EAC TP TC 004, ASNZS 668.1, TUV BS ENEN 6681, UL 6681 | |
| Length | 159mm | |
| Depth | 38mm | |
| Width | 97mm | |
| Weight | 610g | |
| Series | HRP-150 | |
| Efficiency | 89% | |
| Maximum Input Voltage | 370, 264V dc | |
| Output Current | 4.3A | |
| Hazardous Area Certification | No | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 36V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 154.8W | ||
Minimum Operating Temperature -40°C | ||
SMPS Output Current 4.3A | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EAC TP TC 004, ASNZS 668.1, TUV BS ENEN 6681, UL 6681 | ||
Length 159mm | ||
Depth 38mm | ||
Width 97mm | ||
Weight 610g | ||
Series HRP-150 | ||
Efficiency 89% | ||
Maximum Input Voltage 370, 264V dc | ||
Output Current 4.3A | ||
Hazardous Area Certification No | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- TW
HRP-150 Series Single Output Power Supply With PFC Function
High efficiency, long life and high reliability
No load power consumption <0.5W
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
Short circuit, over load, over voltage and over temperature protection
Withstands 300Vac surge input for 5 seconds
1U low profile 38mm
Power factor correction to EN61000-3-2,-3
EMC compliance to EN55022 class B
Note
Power derates above 40°C.
MTBF to MIL-HDBK-217F.
MTBF to MIL-HDBK-217F.
Approvals
UL/cUL recognised, TUV, CB
Standards
UL60950-1, TUV EN60950-1
