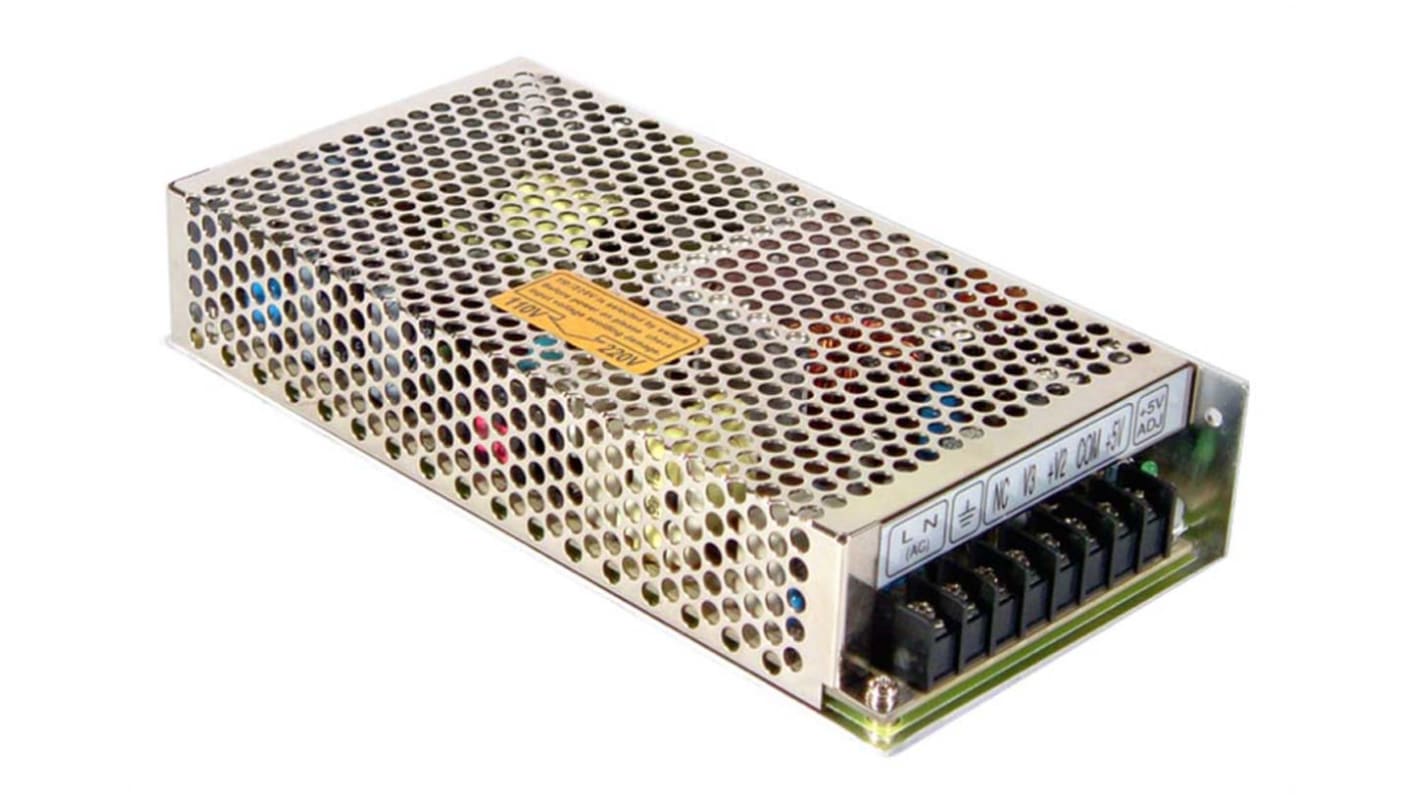

MEAN WELL Switching Power Supply, RT-125C, 5 V dc, ±15 V dc, 1 A, 4.5 A, 10 A, 132.5W, Triple Output, 176 → 264
- RS Stock No.:
- 413-702
- Mfr. Part No.:
- RT-125C
- Brand:
- MEAN WELL
13 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price Each
£44.34
(exc. VAT)
£53.21
(inc. VAT)
Units | Per unit |
1 - 4 | £44.34 |
5 - 9 | £43.23 |
10 - 24 | £42.12 |
25 - 49 | £41.01 |
50 + | £37.69 |
- RS Stock No.:
- 413-702
- Mfr. Part No.:
- RT-125C
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RT Series Triple Output Power Supply
High efficiency, long life and high reliability
Low profile, high power density
High operating temperature up to 70°C
105°C long life electrolytic capacitors
Easy installation - screw terminals
Adjustable output voltage (only on output 1, ±10%)
Power on LED indicator
Harmonic current compliance to EN 61000-3-2
EMC meets EN 55022 Class B
100% full load burn-in test
Short circuit, over-load and over-voltage protection
Low profile, high power density
High operating temperature up to 70°C
105°C long life electrolytic capacitors
Easy installation - screw terminals
Adjustable output voltage (only on output 1, ±10%)
Power on LED indicator
Harmonic current compliance to EN 61000-3-2
EMC meets EN 55022 Class B
100% full load burn-in test
Short circuit, over-load and over-voltage protection
Note
De-rate above 40°C operating temperature (except RT-125 de-rate above 50°C).
MTBF to MIL-HDBK-217F (25°C).2
MTBF to MIL-HDBK-217F (25°C).2
Standards
EN 60950-1, UL 60950-1
Approvals
TUV, CB, UL recognised component for Canada & US
Specifications
Attribute | Value |
---|---|
Output Voltage | 5 V dc, ±15 V dc |
Output Current | 1 A, 4.5 A, 10 A |
Power Rating | 132.5W |
Number of Outputs | 3 |
Input Voltage | 176 → 264 V ac, 248 → 373 V dc, 88 → 132 V ac |
Mounting Type | Chassis Mount |
Package Type | Enclosed |
Length | 199mm |
Width | 98mm |
Depth | 38mm |
Efficiency | 81% |
Maximum Temperature | +70°C |
Minimum Temperature | -25°C |
Weight | 700g |
