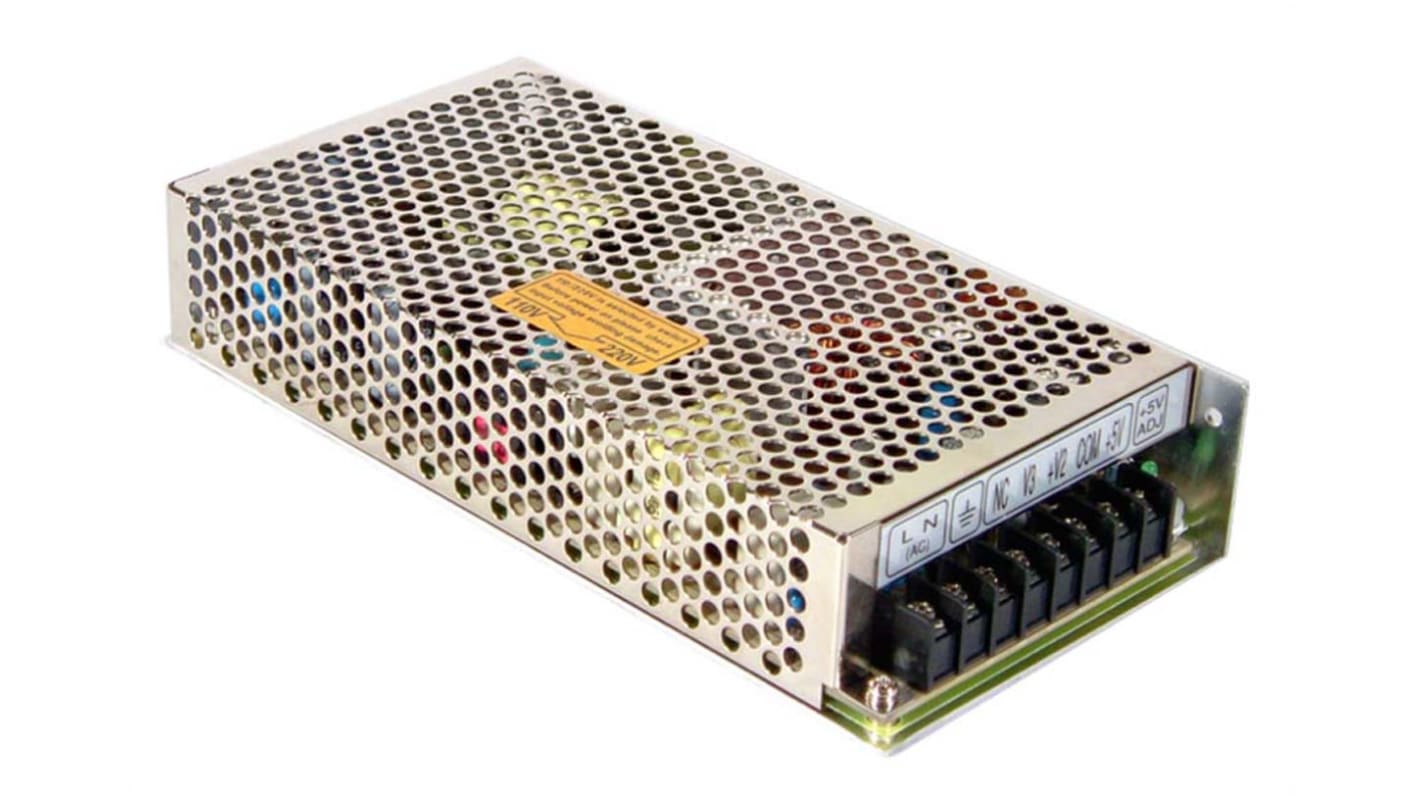

MEAN WELL Switching Power Supply, RT-125A, ±5V dc, 1 A, 5.5 A, 12 A , 131W, Triple Output, 176 → 264 V ac, 248
- RS Stock No.:
- 413-651
- Mfr. Part No.:
- RT-125A
- Brand:
- MEAN WELL
10 In stock - FREE next working day delivery available
Added
Price Each
£37.45
(exc. VAT)
£44.94
(inc. VAT)
| Units | Per unit |
| 1 + | £37.45 |
- RS Stock No.:
- 413-651
- Mfr. Part No.:
- RT-125A
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details
RT Series Triple Output Power Supply
High efficiency, long life and high reliability
Low profile, high power density
High operating temperature up to 70°C
105°C long life electrolytic capacitors
Easy installation - screw terminals
Adjustable output voltage (only on output 1, ±10%)
Power on LED indicator
Harmonic current compliance to EN 61000-3-2
EMC meets EN 55022 Class B
100% full load burn-in test
Short circuit, over-load and over-voltage protection
Low profile, high power density
High operating temperature up to 70°C
105°C long life electrolytic capacitors
Easy installation - screw terminals
Adjustable output voltage (only on output 1, ±10%)
Power on LED indicator
Harmonic current compliance to EN 61000-3-2
EMC meets EN 55022 Class B
100% full load burn-in test
Short circuit, over-load and over-voltage protection
Note
De-rate above 40°C operating temperature (except RT-125 de-rate above 50°C).
MTBF to MIL-HDBK-217F (25°C).2
MTBF to MIL-HDBK-217F (25°C).2
Standards
EN 60950-1, UL 60950-1
Approvals
TUV, CB, UL recognised component for Canada & US
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±5 V dc, ±12V dc |
| Output Current | 1 A, 5.5 A, 12 A |
| Power Rating | 131W |
| Number of Outputs | 3 |
| Input Voltage | 176 → 264 V ac, 248 → 373 V dc, 88 → 132 V ac |
| Mounting Type | Chassis Mount |
| Package Type | Enclosed |
| Length | 199mm |
| Width | 98mm |
| Depth | 38mm |
| Efficiency | 79% |
| Minimum Temperature | -25°C |
| Weight | 700g |
| Maximum Temperature | +70°C |
