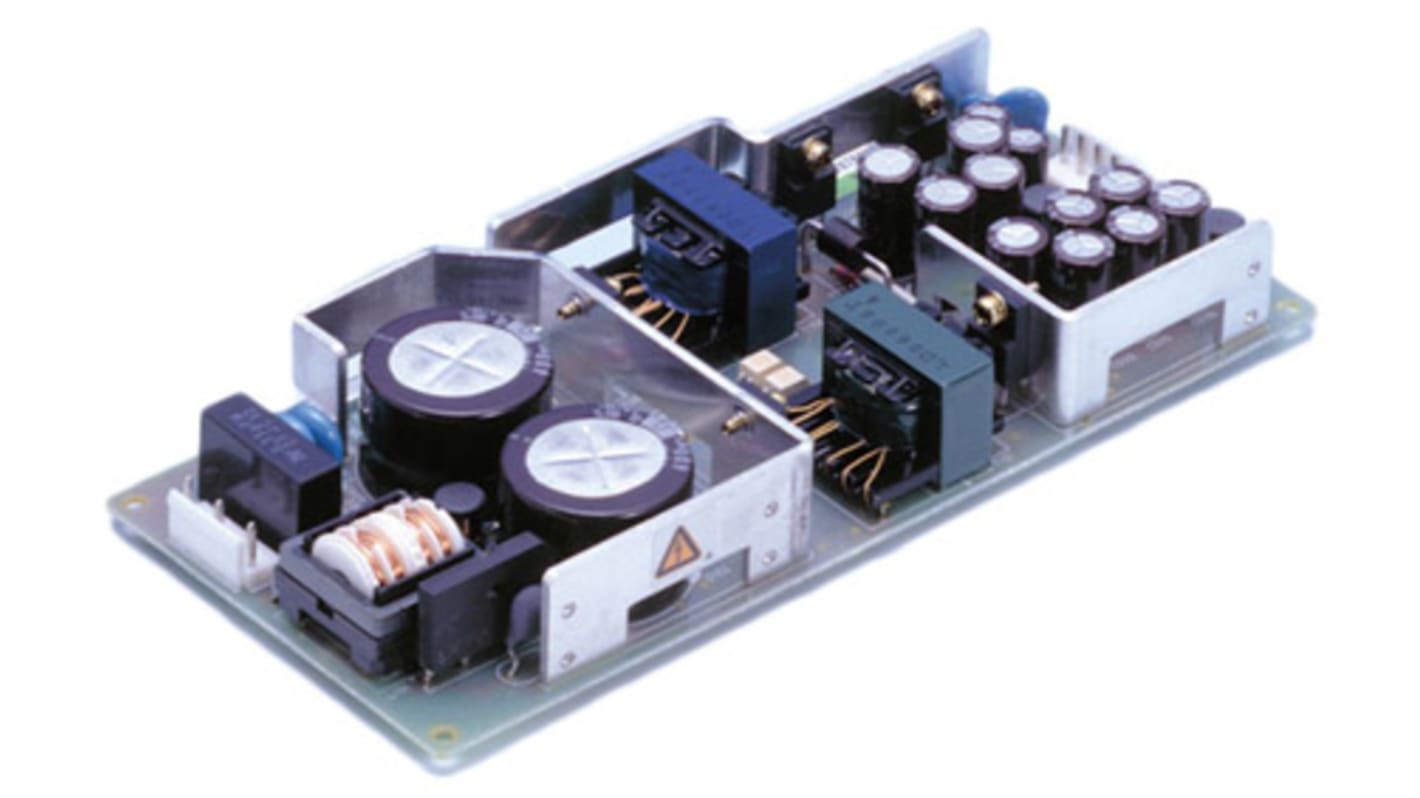

Cosel Switching Power Supply, LDC60F-2, 5 V dc, ±15 V dc, 2 A, 5 A, 500mA, 60W, Triple Output, 110 → 370 V dc,

RS Stock No.:: 328-074
Mfr. Part No.:: LDC60F-2
Brand:: Cosel

Cosel Switching Power Supply, LDC60F-2, 5 V dc, ±15 V dc, 2 A, 5 A, 500mA, 60W, Triple Output, 110 → 370 V dc,

View this category

Discontinued product

RS Stock No.:: 328-074
Mfr. Part No.:: LDC60F-2
Brand:: Cosel

Technical Reference

Legislation and Compliance

COO (Country of Origin):: JP

Product Details

Cosel LDC Switch Mode Power Supplies (SMPS)

LDC series switch mode power supplies (SMPS) from Cosel are low profile and compact with a PCB construction. They are fully regulated and have a fully isolated input and output. With a universal rated input voltage of AC85-264 V, this series features high reliability, with a field failure rate of less than 0.012%.

Features and Benefits:

Zero minimum load

Triple output

Inrush current, overvoltage and overcurrent protection circuits are built in

Light PCB construction at an affordable price

UL recognised, TÜV approved, CSA certified

Conductive Noise: FCC-B, VCCI-2 and VFG 243/91

I/O connector specification (special harness is optional)

Note

For suitable connectors please see Cosel's power harness range.
Please handle the unit with care. Stress to the PCB (twisting or bending) can damage the integrity of the unit, and can cause it to become defective.

Standards

UL60950-1, EN60950-1, EN50178, CSA C22.2 No.60950-1 Complies with DEN-AN and IEC60950-1

Approvals

UL, CSA, VDE, and MITI 60-Hz measurement methods

Specifications

Attribute	Value
Output Voltage	5 V dc, ±15 V dc
Output Current	2 A, 5 A, 500mA
Power Rating	60W
Number of Outputs	3
Input Voltage	110 → 370 V dc, 85 → 264 V ac
Mounting Type	Chassis Mount
Package Type	Open Frame
Length	185mm
Width	83mm
Depth	23mm
Efficiency	72%
Minimum Temperature	-10°C
Maximum Temperature	+60°C
Weight	300g
