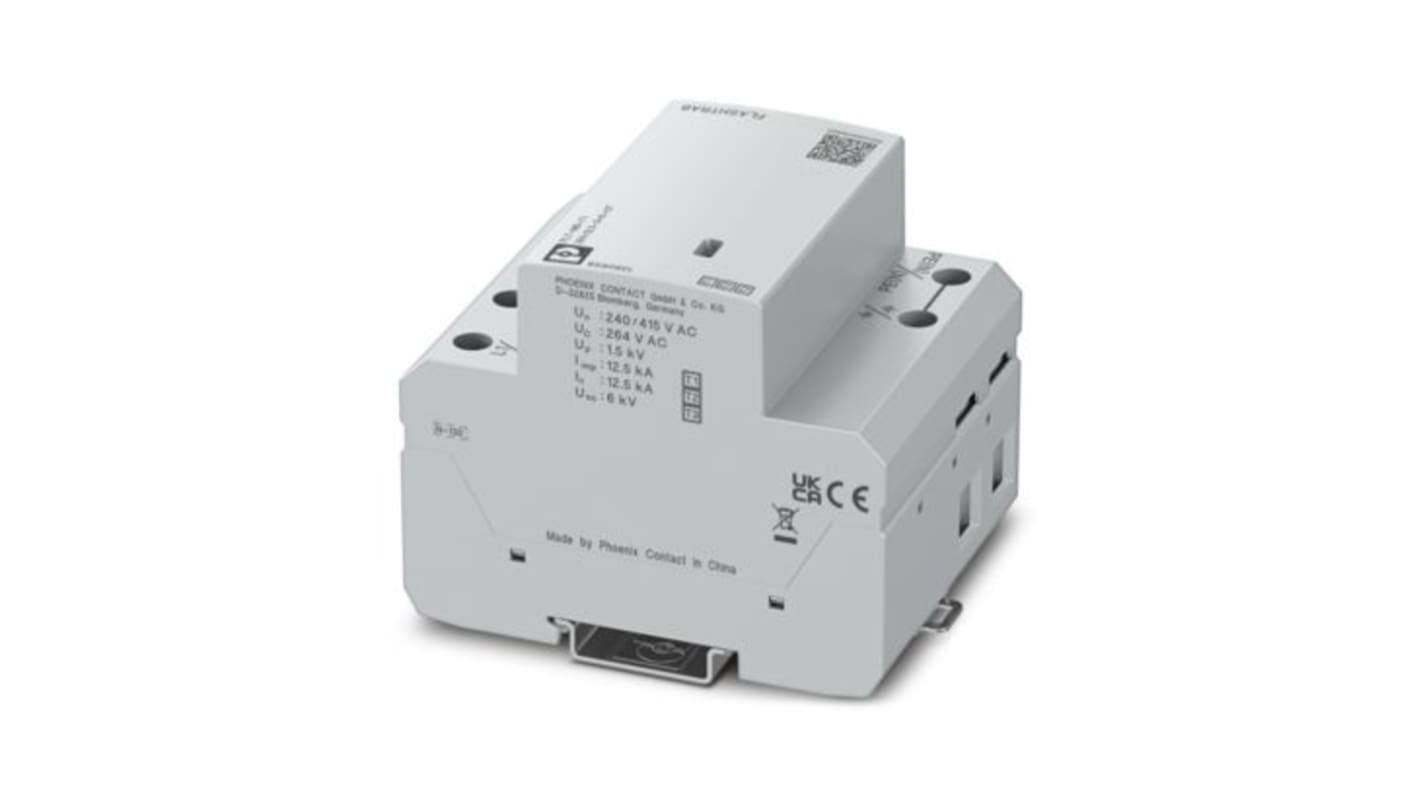

Phoenix Contact, FLT-MB Surge Arrester 264 V ac Maximum Voltage Rating 50kA Maximum Surge Current Surge Arrester

The Phoenix Contact Type 1+2+3 combined lightning current and surge arresters are compact, non-pluggable devices that are free of leakage current, utilizing wear-free carbon spark gap technology. They are designed for 3-phase power supply networks with common N and PE (4-conductor system: L1, L2, L3, PEN) and are suitable for use in unmetered areas. These arresters have a discharge capacity of up to 50 kA, providing protection for lightning protection levels III and IV.

Safe operation and maximum system availability, thanks to reliable protection in the event of lightning current and surge voltages using innovative high performance spark gap technology
Maximum performance in the smallest installation space for all common power supply systems
Suitable for use in the unmetered area, thanks to a protective circuit free of leakage current, and to a mechanical visual status indicator
Space-saving and inexpensive installation, thanks to the slim overall width
Informed at all times about the function of the protective effect, thanks to clear green or red indicator and optional remote indication contact
