Phoenix Contact, VAL Surge Protector 600V Maximum Voltage Rating 25 A Maximum Surge Current Type 2
- RS Stock No.:
- 133-966
- Mfr. Part No.:
- 2905650
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 133-966
- Mfr. Part No.:
- 2905650
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Suppressor Type | Type 2 | |
| Product Type | Surge Protector | |
| Maximum Voltage | 600V | |
| Mount Type | DIN Rail | |
| Packaging | 12 pieces | |
| Maximum Surge Current | 25A | |
| Series | VAL | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Length | 17.6mm | |
| Height | 77.1mm | |
| Depth | 89.2mm | |
| Standards/Approvals | EN 61643-11, IEC 61643-1 | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Suppressor Type Type 2 | ||
Product Type Surge Protector | ||
Maximum Voltage 600V | ||
Mount Type DIN Rail | ||
Packaging 12 pieces | ||
Maximum Surge Current 25A | ||
Series VAL | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Length 17.6mm | ||
Height 77.1mm | ||
Depth 89.2mm | ||
Standards/Approvals EN 61643-11, IEC 61643-1 | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- US

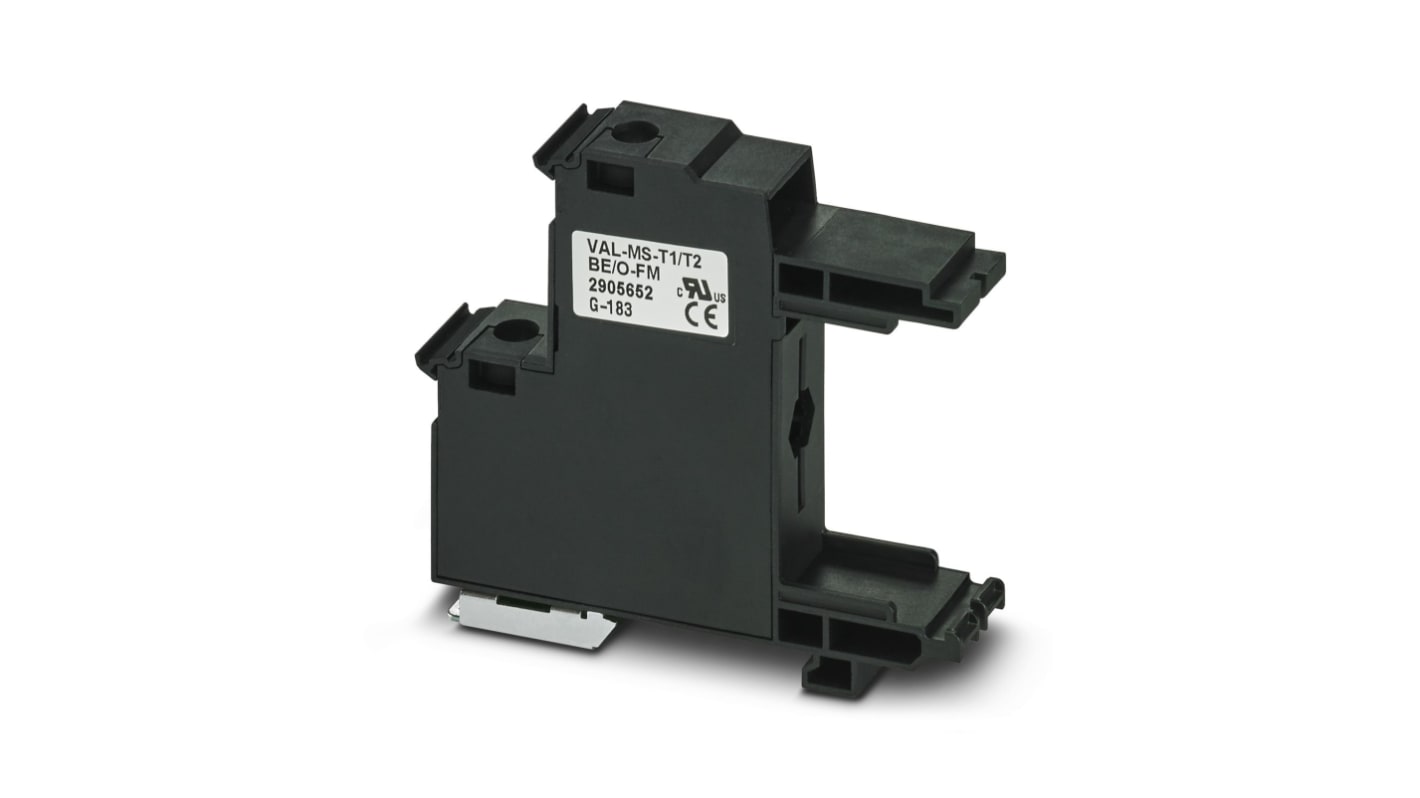

The Phoenix Contact Surge Protection Base Element is designed for rack mount 2U panel applications and supports plug in installation parallel to the conductor axis. The base element accepts both type 1 and type 2 VAL MS plugs.
Easy DIN rail mounting
Compact size and lightweight design
Offers surge protection for various applications
