Phoenix Contact, VAL Surge Protection Plug 100V dc Maximum Voltage Rating 40 A Maximum Surge Current Type 2 Surge
- RS Stock No.:
- 131-228
- Mfr. Part No.:
- 2910333
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£54.21
(exc. VAT)
£65.05
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £54.21 |
*price indicative
- RS Stock No.:
- 131-228
- Mfr. Part No.:
- 2910333
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Surge Protection Plug | |
| Suppressor Type | Type 2 Surge Protection Plug | |
| Maximum Voltage | 100V dc | |
| Mount Type | Base Mount | |
| Maximum Surge Current | 40A | |
| Packaging | 1 pieces | |
| Series | VAL | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Height | 52.4mm | |
| Standards/Approvals | EN 60664-1 / EN 61643-11 | |
| Length | 17.5mm | |
| Depth | 55.3mm | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Surge Protection Plug | ||
Suppressor Type Type 2 Surge Protection Plug | ||
Maximum Voltage 100V dc | ||
Mount Type Base Mount | ||
Maximum Surge Current 40A | ||
Packaging 1 pieces | ||
Series VAL | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Height 52.4mm | ||
Standards/Approvals EN 60664-1 / EN 61643-11 | ||
Length 17.5mm | ||
Depth 55.3mm | ||
Hazardous Area Certification No | ||

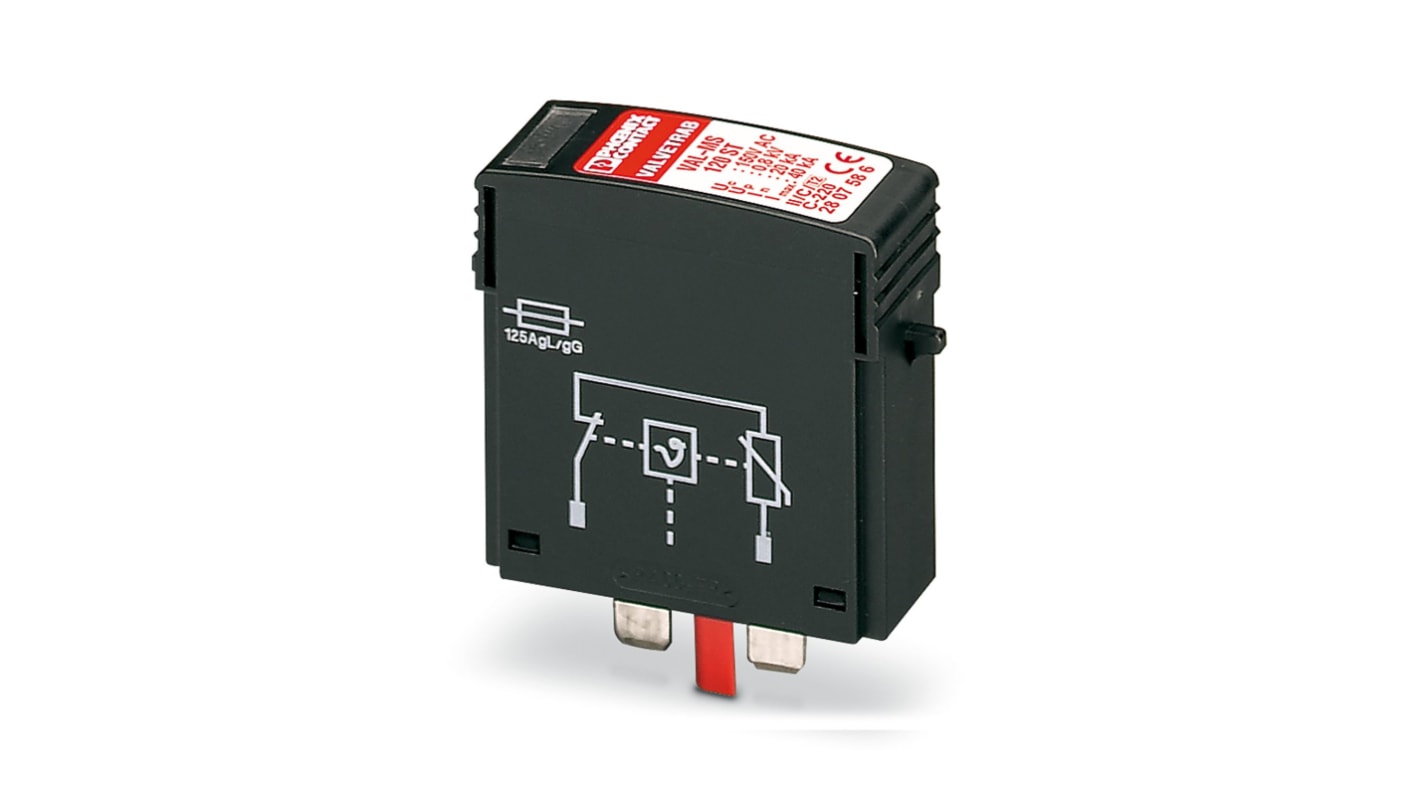

The Phoenix Contact Surge Protection Plug is a UL Recognized type 2 SPD with a varistor and thermal disconnect, suitable for use with VAL US base elements. It features individual thermal disconnect devices and optical/mechanical status indication. The plug is pluggable with mechanical coding for all slots, making it easy to use and install.
Base element and plug structure provides a complete surge protection solution
Overvoltage category III suitable for a wide range of electrical environments
Compact dimensions fits easily into electrical panels and systems
Insulating material with high
