RS PRO Industrial Surge Protector, 2000A, 70 V, DIN Rail Mount

View all Surge Protection Devices
Bulk discount available

Subtotal (1 unit)*

£71.38

(exc. VAT)

£85.66

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£71.38
10 +£64.24

*price indicative

RS Stock No.:
101-781
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Device Type

Surge Protector

Maximum Surge Current

2000A

Voltage Protection Rating

70V (Volts)

Mounting Style

DIN Rail Mount

COO (Country of Origin):
CN

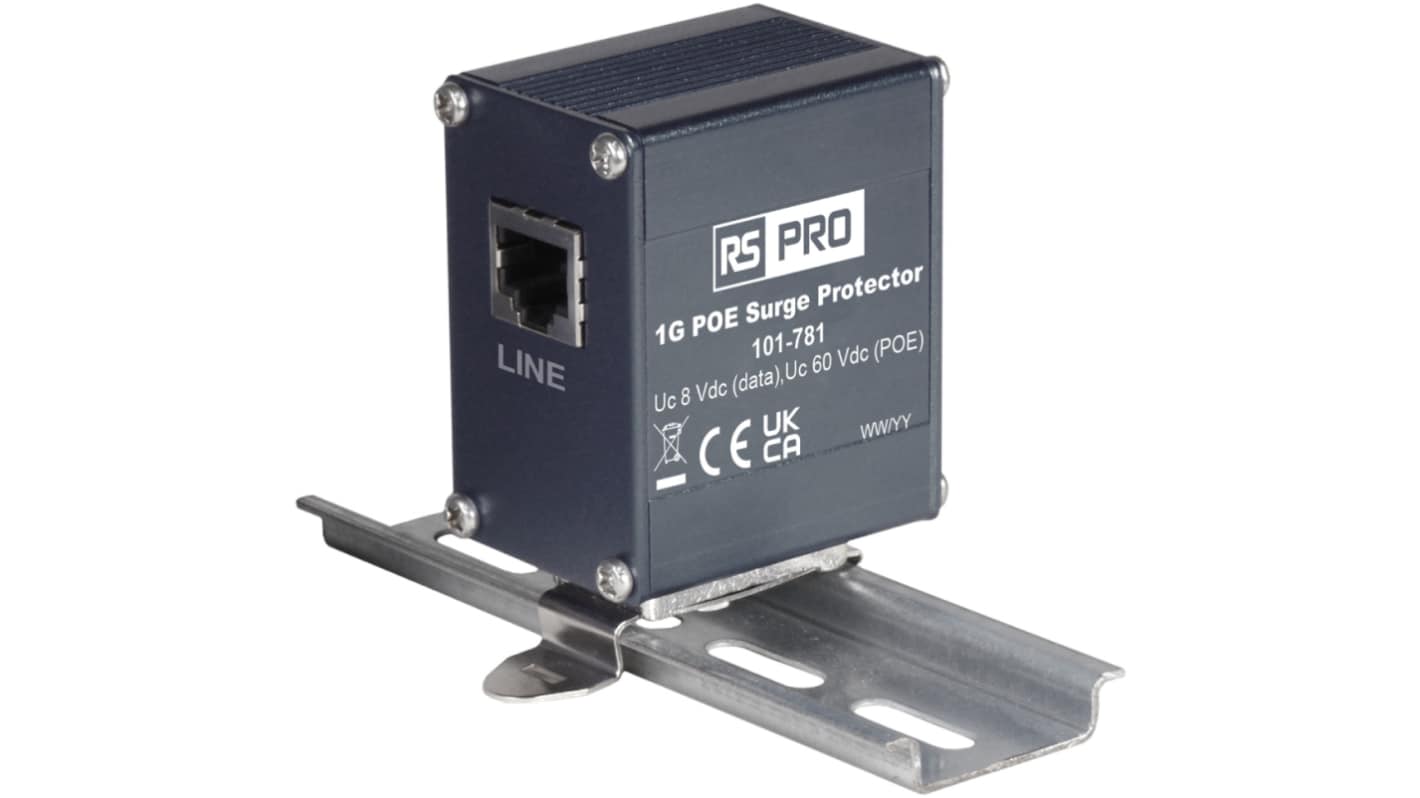

RS PRO POE Surge Protector – Ethernet Signalling ,100 MHz


The RS PRO ethernet surge protector safeguards Ethernet-based signalling applications from transient overvoltage threats caused by lightning strikes and internal load switching. This advanced surge protective device (SPD) provides reliable protection against damaging surges, helping to maintain high availability and uninterrupted business continuity for critical networking and electronic equipment.

Features and Benefits


  • POE compatible surge protector

  • With combined protection ratings of D1, C2, and C3, this SPD offers high surge capability alongside low clamping levels, providing effective protection for sensitive electronics and network systems.

  • Engineered to handle intense electrical events, with a D1 surge rating (10/350μs) of 500A (L-PE) to defend against direct lightning threats and a C2 surge rating (8/20μs) of 2000A (L-PE) and 500A (L-L) for added protection from transient surges.

  • Full-mode protection with bi-directional surge handling, covering 8-pair shield and earth to ensure stability in Ethernet networks up to Cat.6a and a maximum data rate of 1Gbps.

  • Fully compliant with IEC/BSEN 61643-21 standards and UL497B listed

  • Installation is simplified with versatile mounting options, including DIN rail, screw lug, and flange mounting, making it adaptable to various networking environments.

Bandwidth Compatibility


  • Up to 100 MHz, suitable for high-speed Ethernet applications at 10/100/1000 Mbps

Compatibility


Supports Cat.6A Ethernet, ensuring compatibility with high-performance networking equipment.

Applications


  • Ethernet Applications

  • Surge Protection
