Arcol RWS 18 Ω, 0805 Wirewound Surface Mount Resistor ±5 % Surface 5 W - RWS5 18R J B
- RS Stock No.:
- 809-8941
- Mfr. Part No.:
- RWS5 18R J B
- Brand:
- Arcol
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£1.17
(exc. VAT)
£1.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 600 unit(s) shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £1.17 |
| 25 - 49 | £1.08 |
| 50 - 99 | £1.01 |
| 100 - 249 | £0.93 |
| 250 + | £0.85 |
*price indicative
- RS Stock No.:
- 809-8941
- Mfr. Part No.:
- RWS5 18R J B
- Brand:
- Arcol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol | |
| Resistance | 18Ω | |
| Product Type | Surface Mount Resistor | |
| Technology | Wirewound | |
| Resistor Type | Precision Power | |
| Package/Case | 0805 | |
| Tolerance | ±5 % | |
| Packaging | Tape & Reel | |
| Power Rating | 5W | |
| Voltage | 9.49V | |
| Mount Type | Surface | |
| Temperature Coefficient | -20 ppm/°C, +20 ppm/°C | |
| Automotive Standard | No | |
| Series | RWS | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 155°C | |
| Width | 7.62mm | |
| Height | 7.87mm | |
| Termination Style | Solder | |
| Length | 20.3mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Arcol | ||
Resistance 18Ω | ||
Product Type Surface Mount Resistor | ||
Technology Wirewound | ||
Resistor Type Precision Power | ||
Package/Case 0805 | ||
Tolerance ±5 % | ||
Packaging Tape & Reel | ||
Power Rating 5W | ||
Voltage 9.49V | ||
Mount Type Surface | ||
Temperature Coefficient -20 ppm/°C, +20 ppm/°C | ||
Automotive Standard No | ||
Series RWS | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 155°C | ||
Width 7.62mm | ||
Height 7.87mm | ||
Termination Style Solder | ||
Length 20.3mm | ||
Standards/Approvals RoHS | ||

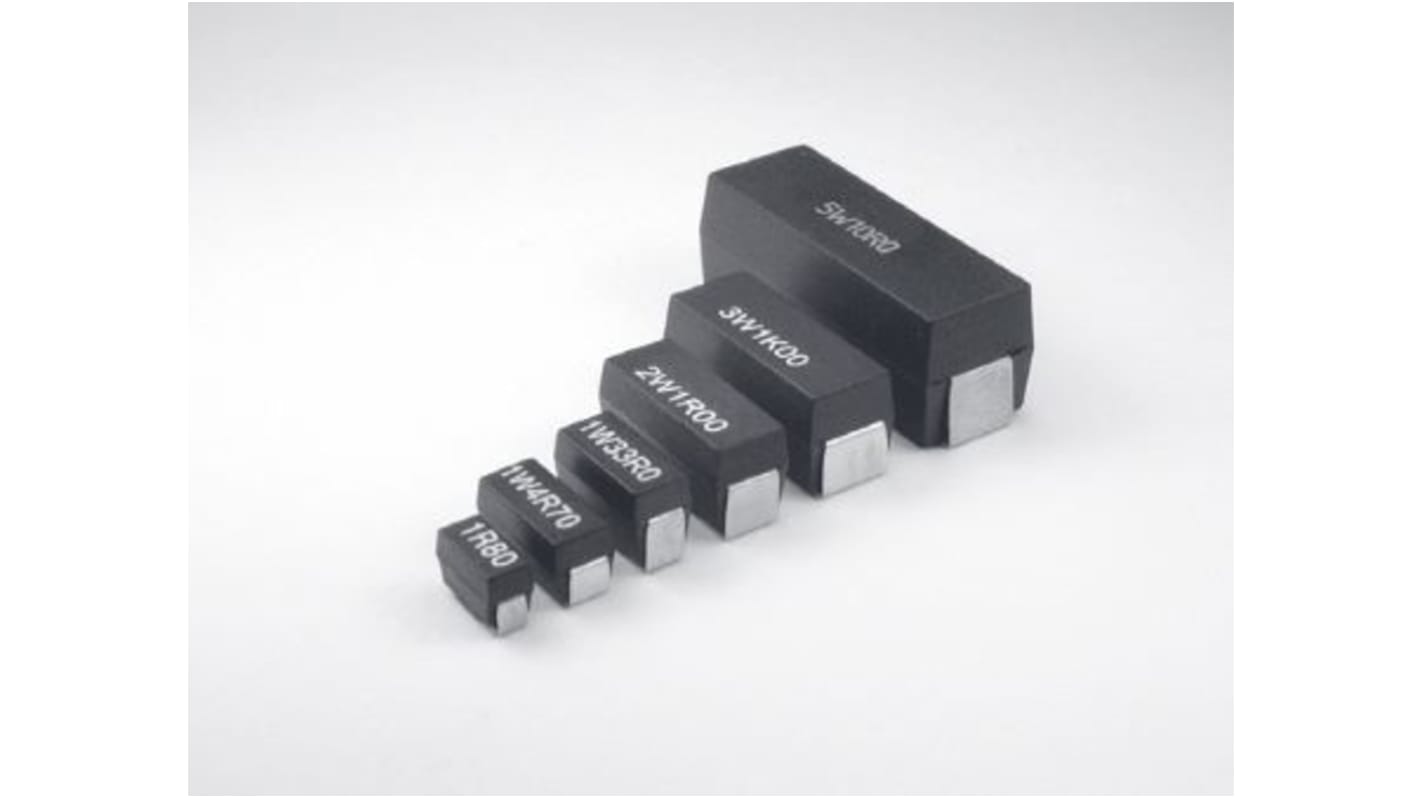

RWS Series SMD Resistors, 5W
Wirewound, Precision
