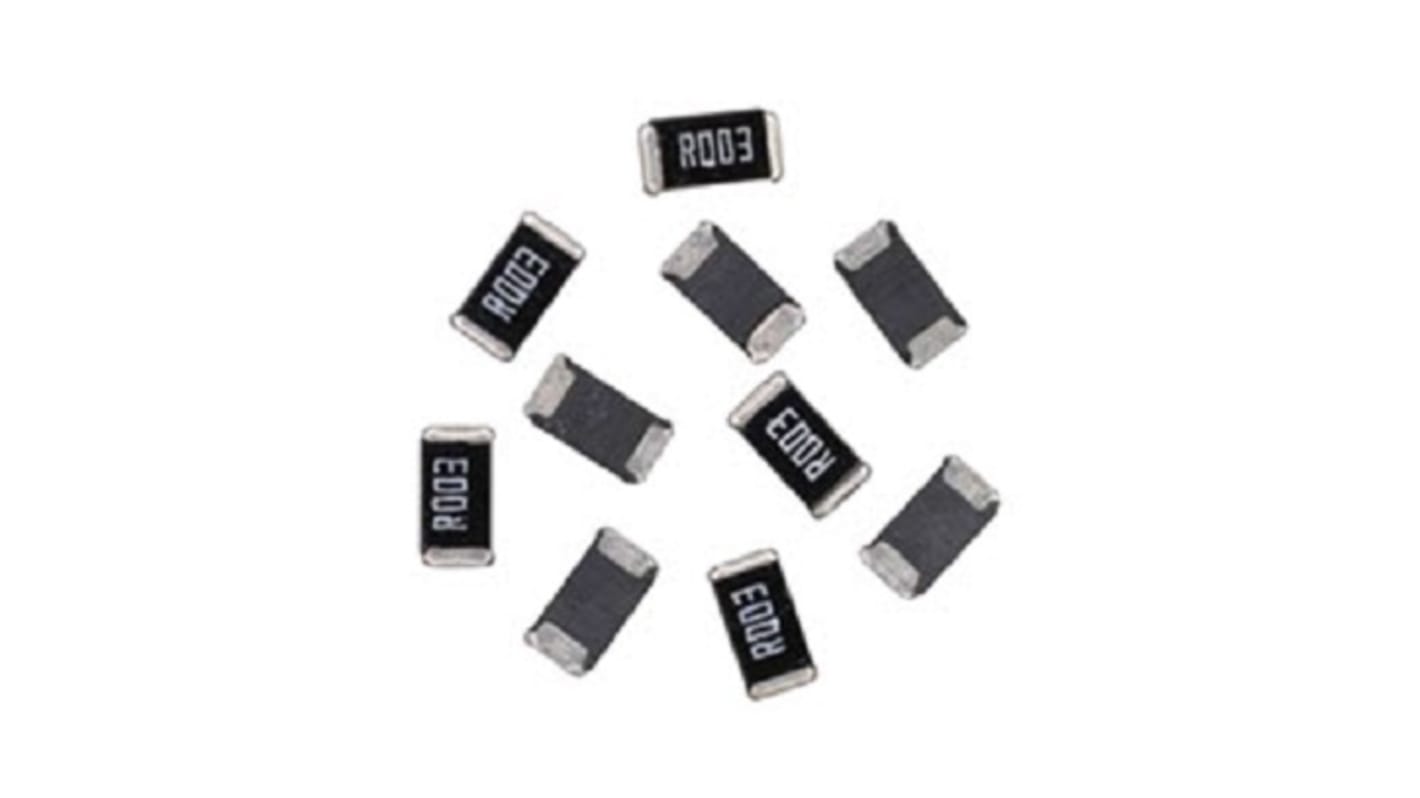

Arcol Ohmite PCS 2 mΩ, 2512 Metal Film Surface Mount Fixed Resistor 1 % 2 W - PCS2512FR0020ET
- RS Stock No.:
- 263-4342
- Mfr. Part No.:
- PCS2512FR0020ET
- Brand:
- Arcol Ohmite
Bulk discount available
Subtotal (1 tape of 10 units)*
£5.12
(exc. VAT)
£6.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,830 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £0.512 | £5.12 |
| 100 - 190 | £0.426 | £4.26 |
| 200 - 490 | £0.379 | £3.79 |
| 500 - 990 | £0.318 | £3.18 |
| 1000 + | £0.272 | £2.72 |
*price indicative
- RS Stock No.:
- 263-4342
- Mfr. Part No.:
- PCS2512FR0020ET
- Brand:
- Arcol Ohmite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol Ohmite | |
| Resistance | 2mΩ | |
| Product Type | Surface Mount Fixed Resistor | |
| Technology | Metal Film | |
| Package/Case | 2512 | |
| Packaging | Tape & Reel | |
| Tolerance | 1 % | |
| Power Rating | 2W | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -55°C | |
| Series | PCS | |
| Maximum Operating Temperature | 170°C | |
| Height | 0.65mm | |
| Standards/Approvals | RoHS | |
| Termination Style | Solder | |
| Width | 3.05 mm | |
| Length | 6.35mm | |
| Select all | ||
|---|---|---|
Brand Arcol Ohmite | ||
Resistance 2mΩ | ||
Product Type Surface Mount Fixed Resistor | ||
Technology Metal Film | ||
Package/Case 2512 | ||
Packaging Tape & Reel | ||
Tolerance 1 % | ||
Power Rating 2W | ||
Automotive Standard No | ||
Minimum Operating Temperature -55°C | ||
Series PCS | ||
Maximum Operating Temperature 170°C | ||
Height 0.65mm | ||
Standards/Approvals RoHS | ||
Termination Style Solder | ||
Width 3.05 mm | ||
Length 6.35mm | ||
- COO (Country of Origin):
- TW
The Arcol Ohmite chip resistor is a low resistance value resistor. It has excellent long term stability. It is used for high precision current sensing and voltage division.
Low resistance to 0.5mΩ
Low TCR to ±50ppm
RoHs compliant and halogen free
Lead free
High precision current sensing and voltage division
