RS PRO 2kΩ, 0603 (1608M) Thin Film Resistor 0.5% 0.15W

RS Stock No.:: 243-0600
Brand:: RS PRO

RS PRO 2kΩ, 0603 (1608M) Thin Film Resistor 0.5% 0.15W

1150 In stock - FREE next working day delivery available

Price Each (On a Tape of 50)

£0.087

(exc. VAT)

£0.104

(inc. VAT)

Units	Per unit	Per Tape*
50 - 200	£0.087	£4.35
250 - 450	£0.078	£3.90
500 - 950	£0.067	£3.35
1000 - 2450	£0.058	£2.90
2500 +	£0.046	£2.30

*price indicative

RS Stock No.:: 243-0600
Brand:: RS PRO

Technical Reference

RS PRO Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

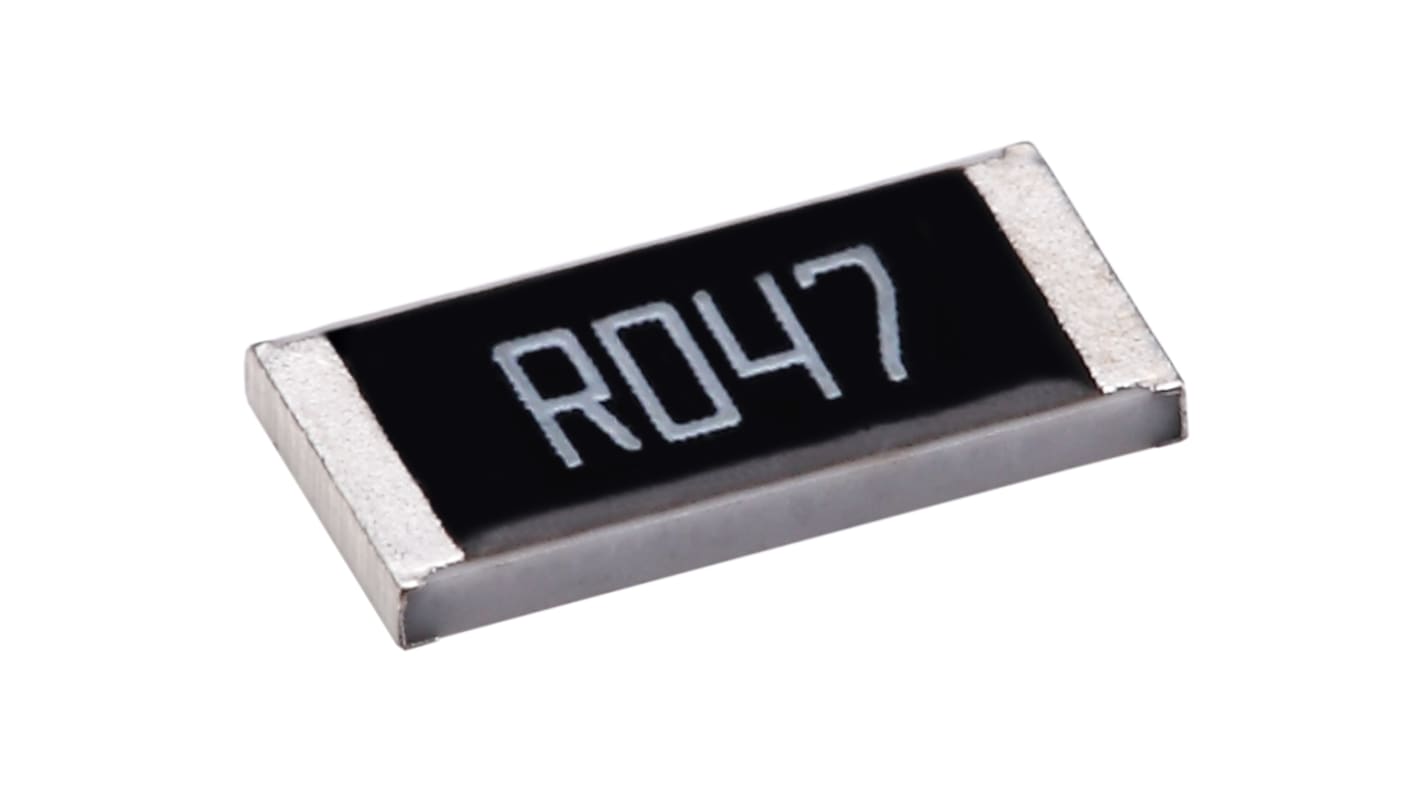

RS PRO 0603 (1608M) Thin Film Current Sensing Chip Resistors

The RS PRO thin film surface mount (SMD) resistor controls the electrical current between a power source and an appliance, so the two can function together without burnout.
Featuring a thin film construction with a high purity alumina substrate for a higher level of precision than thick film resistors and superior levels of power dissipation.
The compact, lightweight design makes this SMD resistor ideal for use in small electronic devices, such as mobile phones.
Primarily used in the telecommunication and automotive industries the RS PRO 0603 resistors are also ideal for use in a wide range of other applications including:

Power Management Applications

Switching Power Supply

Over Current Protection in Audio Applications

Voltage Regulation Module (VRM)

DC-DC Converters, Battery Packs, Chargers and Adaptors

Automotive Engine Control

Disk Drivers

Portable Devices (PDA, Phones)

Features and Benefits

High purity alumina substrate for high power dissipation

Operating temperature range of -55 → +155°C

Temperature coefficient range of ±50 → ±100 ppm/°C

Thin film technology

Solder termination

Why RS PRO?

Looking to reduce costs but keep the same quality?
With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.
Trusted by engineers the world over, we want you to be confident that you’re receiving the exceptional quality, reliability and the best value for money.

Also available for purchase in a pack size of 50. Please see RS 243-0600

Specifications

Attribute	Value
Resistance	2kΩ
Technology	Thin Film
Package/Case	0603 (1608M)
Tolerance	0.5%
Power Rating	0.15W
Temperature Coefficient	±50 → 100ppm/°C
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	+155°C
