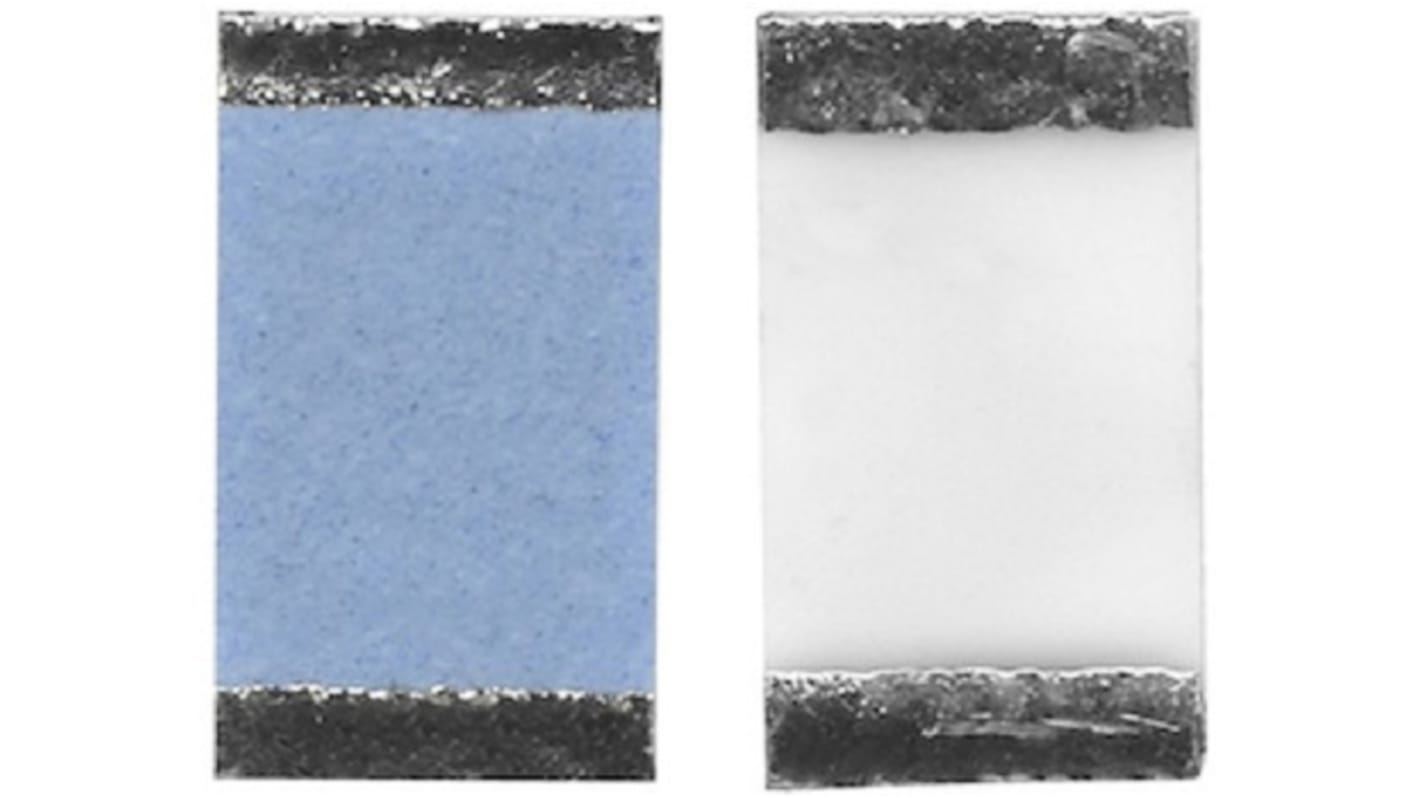

Vishay 500kΩ, 1206 (3216M) Thin Film Surface Mount Fixed Resistor ±0.05% 0.33W
- RS Stock No.:
- 239-1511
- Distrelec Article No.:
- 303-72-769
- Mfr. Part No.:
- PEP1206Y5003WNTA
- Brand:
- Vishay
Subtotal (1 unit)*
£8.88
(exc. VAT)
£10.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 152 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.88 |
*price indicative
- RS Stock No.:
- 239-1511
- Distrelec Article No.:
- 303-72-769
- Mfr. Part No.:
- PEP1206Y5003WNTA
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Resistance | 500kΩ | |
| Technology | Thin Film | |
| Package/Case | 1206 (3216M) | |
| Tolerance | ±0.05% | |
| Power Rating | 0.33W | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Resistance 500kΩ | ||
Technology Thin Film | ||
Package/Case 1206 (3216M) | ||
Tolerance ±0.05% | ||
Power Rating 0.33W | ||
- COO (Country of Origin):
- FR
The Vishay thin film chip resistors are high precision wraparound for low noise and precision applications, It provides superior stability, low temperature coefficient of resistance, and low voltage coefficient.
Load life stability 0.02 % typical at 8000 h at 70 °C under Pd (0.033 % maximum)
Low temperature coefficient down to 5 ppm/°C (-55 °C
Low temperature coefficient down to 5 ppm/°C (-55 °C
+155 °Cfie)
Very low noise < -35 dB and voltage coefficient < 0.01 ppm/V
Wide resistance range: 10 Ω to 86 MΩ depending on size
Tolerances to ± 0.01 %
In lot tracking ≤ 5 ppm/°C
Termination: thin film technology
Very low noise < -35 dB and voltage coefficient < 0.01 ppm/V
Wide resistance range: 10 Ω to 86 MΩ depending on size
Tolerances to ± 0.01 %
In lot tracking ≤ 5 ppm/°C
Termination: thin film technology
