ROHM 5mΩ, 7142(2817) Metal Plate Resistor ±1% 10W
- RS Stock No.:
- 237-4338
- Mfr. Part No.:
- GMR320HJAAFD5L00
- Brand:
- ROHM
Subtotal (1 reel of 2000 units)*
£1,764.00
(exc. VAT)
£2,116.00
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.882 | £1,764.00 |
*price indicative
- RS Stock No.:
- 237-4338
- Mfr. Part No.:
- GMR320HJAAFD5L00
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Resistance | 5mΩ | |
| Technology | Metal Plate | |
| Package/Case | 7142(2817) | |
| Tolerance | ±1% | |
| Power Rating | 10W | |
Select all | ||
|---|---|---|
Brand ROHM | ||
Resistance 5mΩ | ||
Technology Metal Plate | ||
Package/Case 7142(2817) | ||
Tolerance ±1% | ||
Power Rating 10W | ||

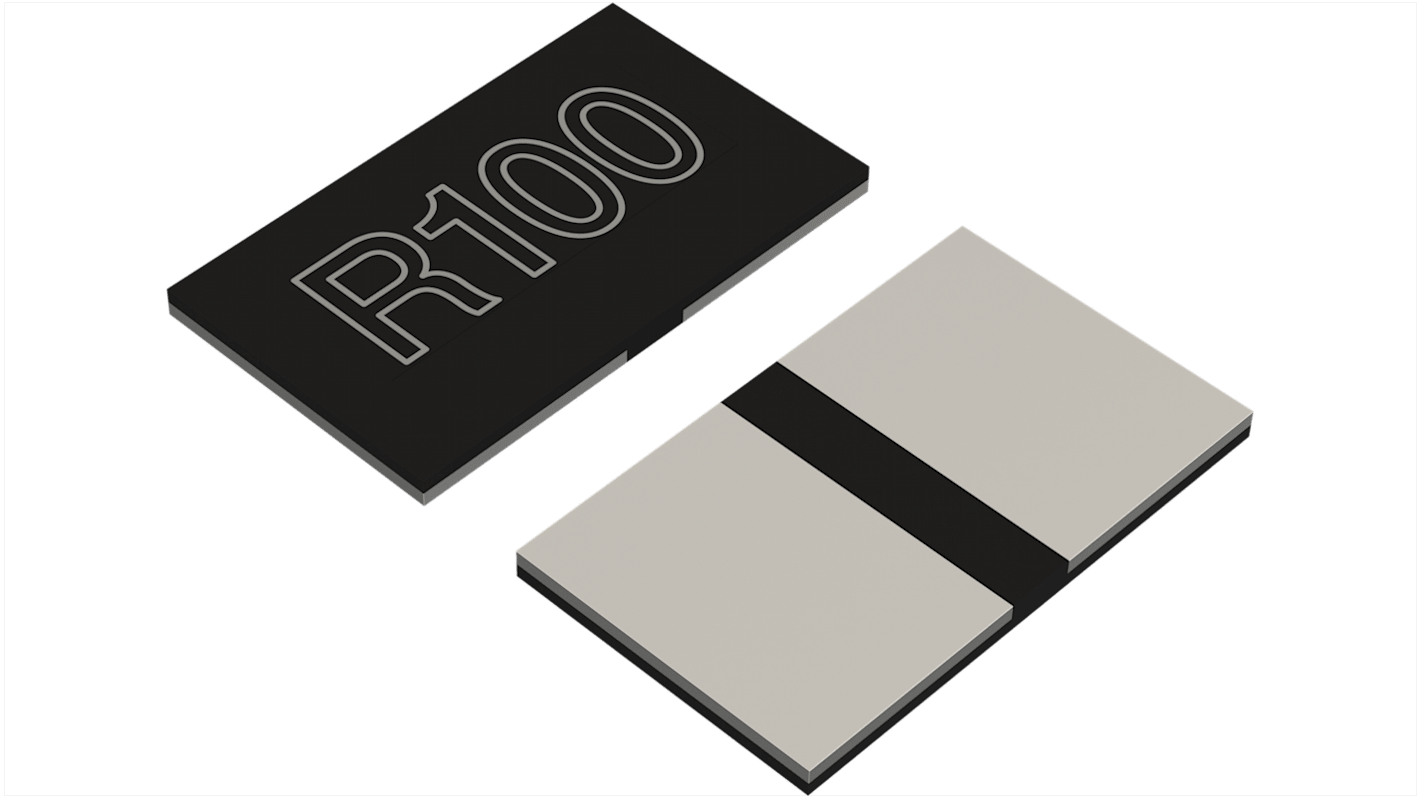

The ROHM high power type metal plate shunt resistor has package size of 7142mm and is ideal for current detection under high current circuit. It has resistance range of 5mΩ and rated power of 10W.
High power series (3W to 10W)
High heat dissipation
Excellent TCR characteristics
Low ohmic (5mΩ to 220mΩ)
Resistance tolerance of F (±1%)
Operating temperature range between -65°C and 170°C
High heat dissipation
Excellent TCR characteristics
Low ohmic (5mΩ to 220mΩ)
Resistance tolerance of F (±1%)
Operating temperature range between -65°C and 170°C
