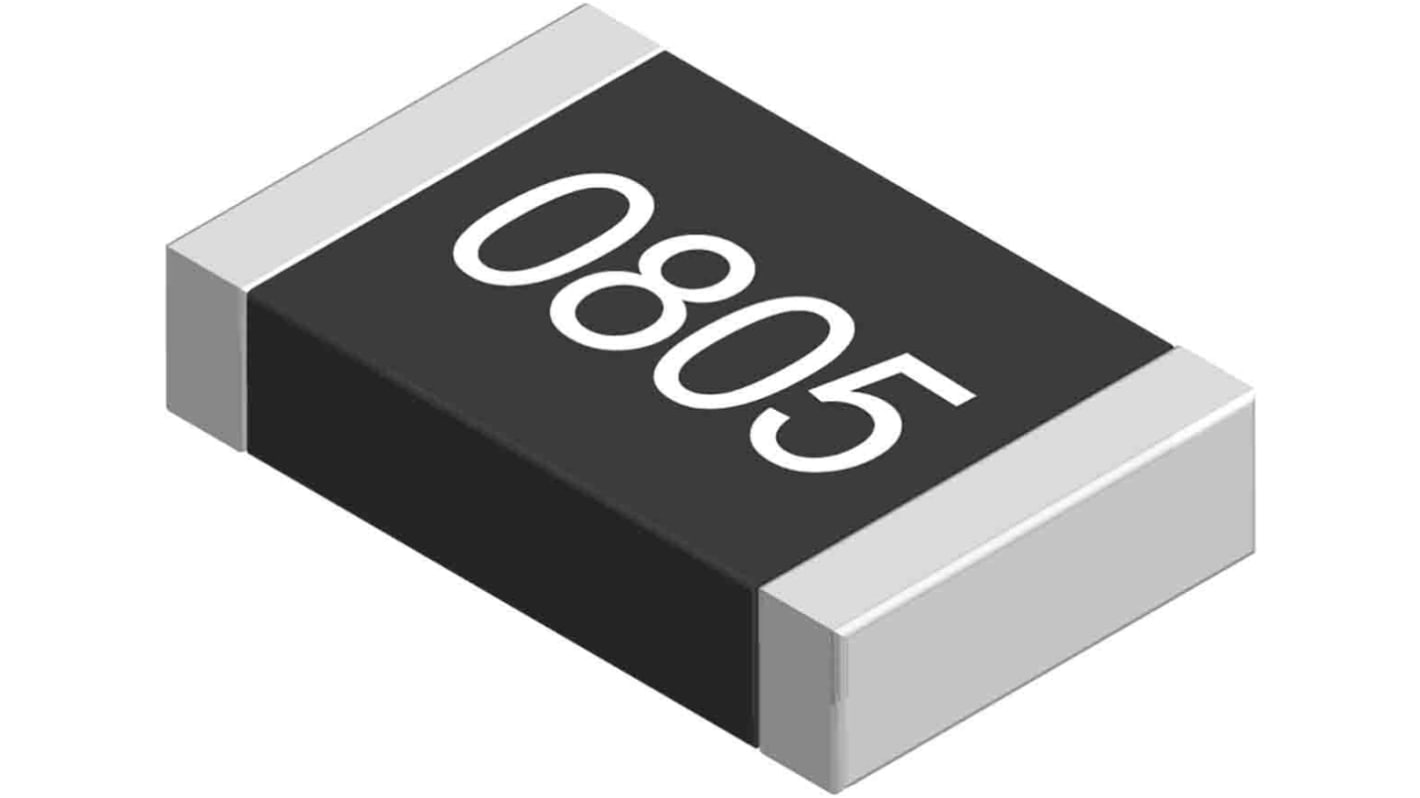

Yageo 47kΩ, 0805 Thick Film Resistor ±5% 0.125W
- RS Stock No.:
- 197-8237
- Mfr. Part No.:
- AC0805JR-0747KL
- Brand:
- Yageo
Subtotal (1 reel of 5000 units)*
£25.00
(exc. VAT)
£30.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 + | £0.005 | £25.00 |
*price indicative
- RS Stock No.:
- 197-8237
- Mfr. Part No.:
- AC0805JR-0747KL
- Brand:
- Yageo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Yageo | |
| Resistance | 47kΩ | |
| Technology | Thick Film | |
| Package/Case | 0805 | |
| Tolerance | ±5% | |
| Power Rating | 0.125W | |
| Automotive Standard | AEC-Q200 | |
Select all | ||
|---|---|---|
Brand Yageo | ||
Resistance 47kΩ | ||
Technology Thick Film | ||
Package/Case 0805 | ||
Tolerance ±5% | ||
Power Rating 0.125W | ||
Automotive Standard AEC-Q200 | ||
RoHS Status: Exempt
The Yageo 47 KΩ thick film chip resistor is a AC series chip resistors with lead-free terminations made by thick film process. The series is highly reliable electrode construction and is suitable for all general purpose applications, such as smartphones, tablets, laptops, televisions, etc.
AEC-Q200 qualified
Moisture sensitivity level: MSL 1
AC series soldering is compliant with J-STD-020D
Halogen free epoxy
Reduce environmentally hazardous waste
High component and equipment reliability
The resistors are 100% performed by automatic optical inspection prior to taping
Moisture sensitivity level: MSL 1
AC series soldering is compliant with J-STD-020D
Halogen free epoxy
Reduce environmentally hazardous waste
High component and equipment reliability
The resistors are 100% performed by automatic optical inspection prior to taping
