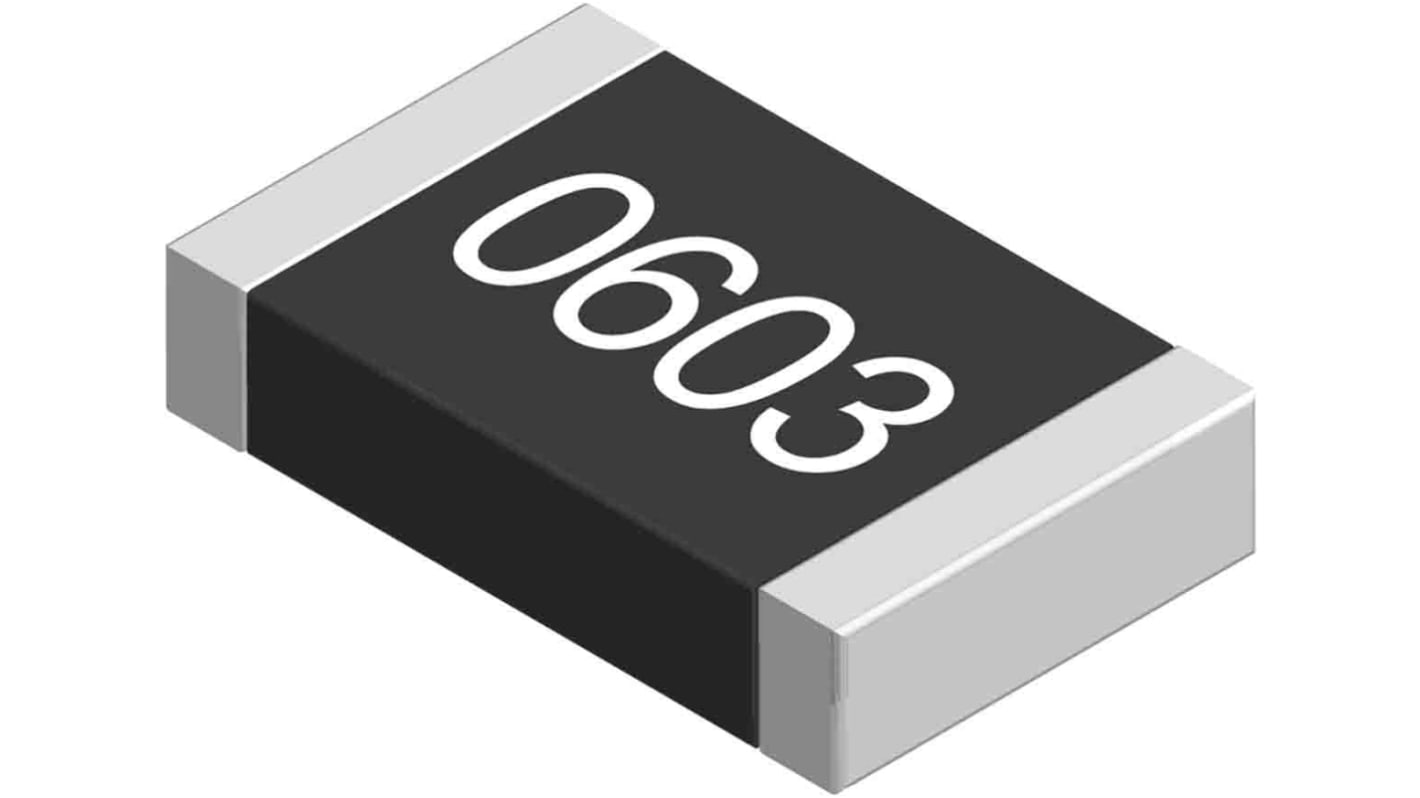

Yageo 22kΩ, 0603 Thick Film Resistor ±5% 0.1W
- RS Stock No.:
- 197-8131
- Mfr. Part No.:
- AC0603JR-0722KL
- Brand:
- Yageo
Save 75% when you buy 10000 units
Subtotal (1 tape of 500 units)*
£2.00
(exc. VAT)
£2.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 500 - 2000 | £0.004 | £2.00 |
| 2500 - 4500 | £0.002 | £1.00 |
| 5000 - 7000 | £0.002 | £1.00 |
| 7500 - 9500 | £0.002 | £1.00 |
| 10000 + | £0.001 | £0.50 |
*price indicative
- RS Stock No.:
- 197-8131
- Mfr. Part No.:
- AC0603JR-0722KL
- Brand:
- Yageo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Yageo | |
| Resistance | 22kΩ | |
| Technology | Thick Film | |
| Package/Case | 0603 | |
| Tolerance | ±5% | |
| Power Rating | 0.1W | |
| Automotive Standard | AEC-Q200 | |
Select all | ||
|---|---|---|
Brand Yageo | ||
Resistance 22kΩ | ||
Technology Thick Film | ||
Package/Case 0603 | ||
Tolerance ±5% | ||
Power Rating 0.1W | ||
Automotive Standard AEC-Q200 | ||
RoHS Status: Exempt
The Yageo 22 KΩ thick film chip resistor is a AC series chip resistors with lead-free terminations made by thick film process. The series is highly reliable electrode construction and is suitable for all general purpose applications, such as smartphones, tablets, laptops, televisions, etc.
AEC-Q200 qualified
Moisture sensitivity level: MSL 1
AC series soldering is compliant with J-STD-020D
Halogen free epoxy
Reduce environmentally hazardous waste
High component and equipment reliability
The resistors are 100% performed by automatic optical inspection prior to taping
Moisture sensitivity level: MSL 1
AC series soldering is compliant with J-STD-020D
Halogen free epoxy
Reduce environmentally hazardous waste
High component and equipment reliability
The resistors are 100% performed by automatic optical inspection prior to taping
