Vishay MMA0204 2.2 kΩ, 0204 Thin Film Surface Mount Resistor ±0.1 % Surface 0.25 W - MMA02040E2201BB100

RS Stock No.:: 180-4099
Mfr. Part No.:: MMA02040E2201BB100
Brand:: Vishay

Vishay MMA0204 2.2 kΩ, 0204 Thin Film Surface Mount Resistor ±0.1 % Surface 0.25 W - MMA02040E2201BB100

Subtotal (1 reel of 3000 units)*

£960.00

(exc. VAT)

£1,140.00

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit	Per Reel*
3000 +	£0.32	£960.00

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 180-4099
Mfr. Part No.:: MMA02040E2201BB100
Brand:: Vishay

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Vishay
	Resistance	2.2kΩ
	Product Type	Surface Mount Resistor
	Technology	Thin Film
	Package/Case	0204
	Packaging	Tube
	Tolerance	±0.1 %
	Power Rating	0.25W
	Voltage	200V
	Mount Type	Surface
	Temperature Coefficient	-15 ppm/°C, +15 ppm/°C
	Automotive Standard	AEC-Q200
	Series	MMA0204
	Pin Count	2
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	175°C
	Width	1.4mm
	Standards/Approvals	RoHS
	Length	3.6mm
	Termination Style	Solder
	Height	3.6mm
	Better World Claim	Designed to Optimise Safety
	Better World Product	Yes

	Select all
	Brand Vishay
	Resistance 2.2kΩ
	Product Type Surface Mount Resistor
	Technology Thin Film
	Package/Case 0204
	Packaging Tube
	Tolerance ±0.1 %
	Power Rating 0.25W
	Voltage 200V
	Mount Type Surface
	Temperature Coefficient -15 ppm/°C, +15 ppm/°C
	Automotive Standard AEC-Q200
	Series MMA0204
	Pin Count 2
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 175°C
	Width 1.4mm
	Standards/Approvals RoHS
	Length 3.6mm
	Termination Style Solder
	Height 3.6mm
	Better World Claim Designed to Optimise Safety
	Better World Product Yes

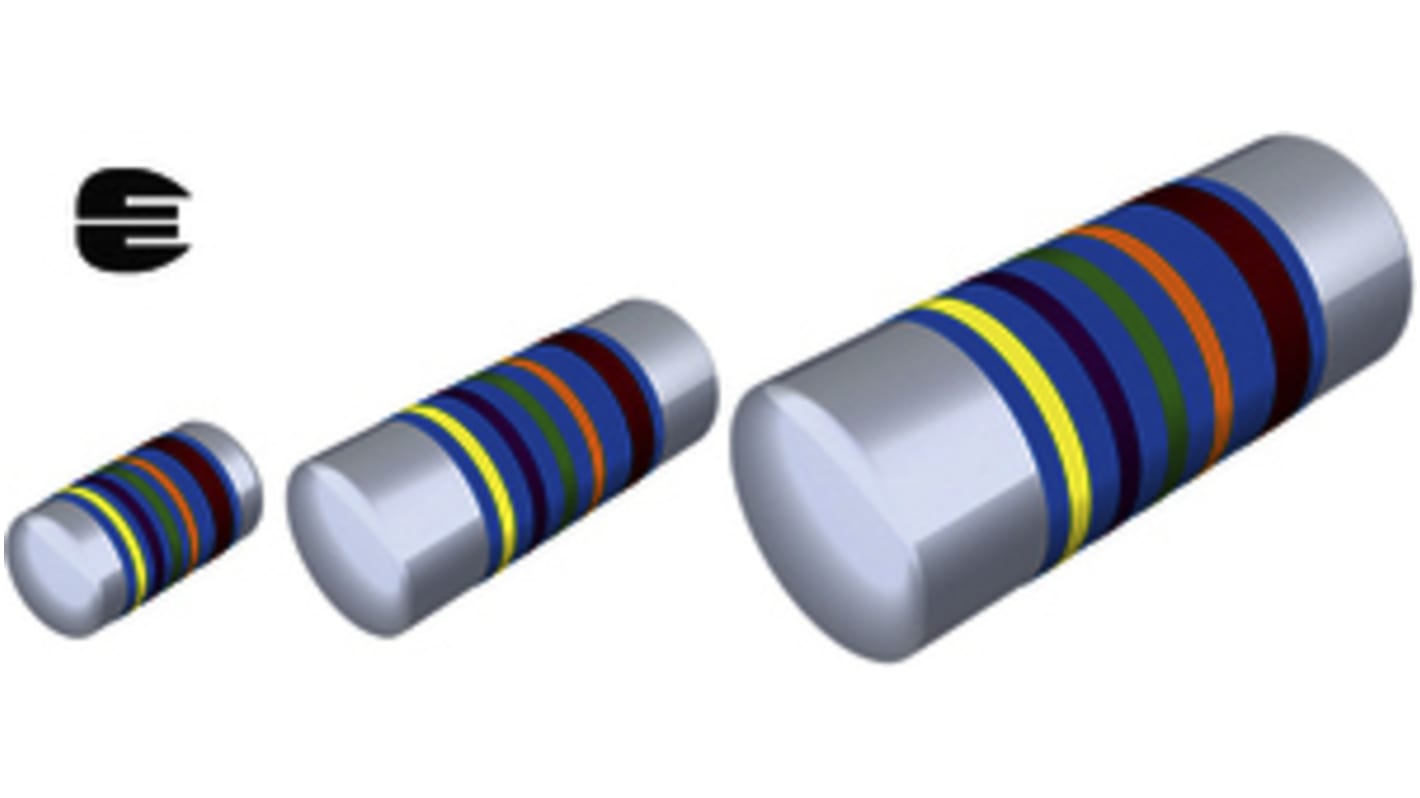

MMA 0204 Precision MELF 0.1% Resistors

Advanced thin film technology

Superior stability: Class 0.05

Wide precision range: 43 Ω to 220kΩ

Force fitted steel caps, tin plated on nickel barrier

Pure Sn termination on Ni barrier layer

Compatible with lead (Pb)-free and lead containing soldering processes

Surface Mount - MELF

Approvals

EN 140401-803
