Select all	Attribute	Value
	Brand	Vishay
	Product Type	Surface Mount Resistor
	Resistance	15kΩ
	Technology	Thin Film
	Resistor Type	High Pulse
	Package/Case	0207
	Packaging	Tape & Reel
	Tolerance	±2 %
	Voltage	500V
	Power Rating	0.4W
	Automotive Standard	AEC-Q200
	Series	CMA0207
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	155°C
	Termination Style	Solder
	Length	5.8mm
	Width	8mm
	Standards/Approvals	EN 140400, EN 140401-803, EN 60115-1, GADSL, IEC 60 062, IEC 60065, IEC 60068, IEC 60 286-3, IEC 61760-1, IEC QC 001002-3, RoHS

	Select all
	Brand Vishay
	Product Type Surface Mount Resistor
	Resistance 15kΩ
	Technology Thin Film
	Resistor Type High Pulse
	Package/Case 0207
	Packaging Tape & Reel
	Tolerance ±2 %
	Voltage 500V
	Power Rating 0.4W
	Automotive Standard AEC-Q200
	Series CMA0207
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 155°C
	Termination Style Solder
	Length 5.8mm
	Width 8mm
	Standards/Approvals EN 140400, EN 140401-803, EN 60115-1, GADSL, IEC 60 062, IEC 60065, IEC 60068, IEC 60 286-3, IEC 61760-1, IEC QC 001002-3, RoHS

Advanced pulse load capability for the protection of circuitry with signal or mains input from surge pulses

Also suitable for circuits exposed to high levels of electromagnetic interference or electrostatic discharge

Applications include all fields of automotive, telecommunication, industrial and medical equipment

Metal Electrode Leadless Face SMT Resistors

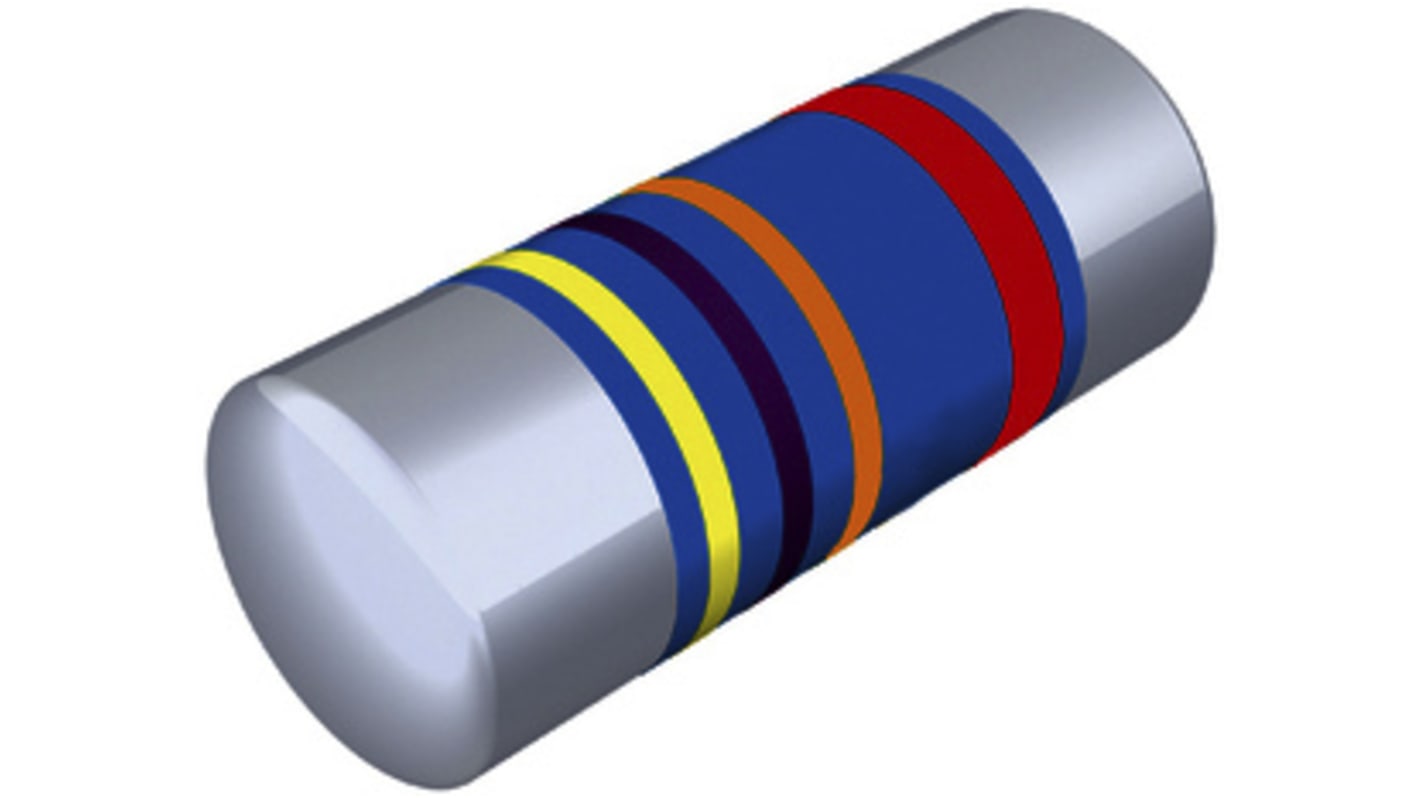

Vishay CMA0207 15 kΩ, 0207 Thin Film Surface Mount Resistor ±2 % 0.4 W - CMB02070X1502GB200
