TE Connectivity 22mΩ, 2512 (6432M) Metal Foil SMD Resistor ±1% 1W - TL3AR022F
- RS Stock No.:
- 164-1769
- Mfr. Part No.:
- TL3AR022F
- Brand:
- TE Connectivity
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (On a Reel of 2000)
£0.717
(exc. VAT)
£0.86
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2000 + | £0.717 | £1,434.00 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 164-1769
- Mfr. Part No.:
- TL3AR022F
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details

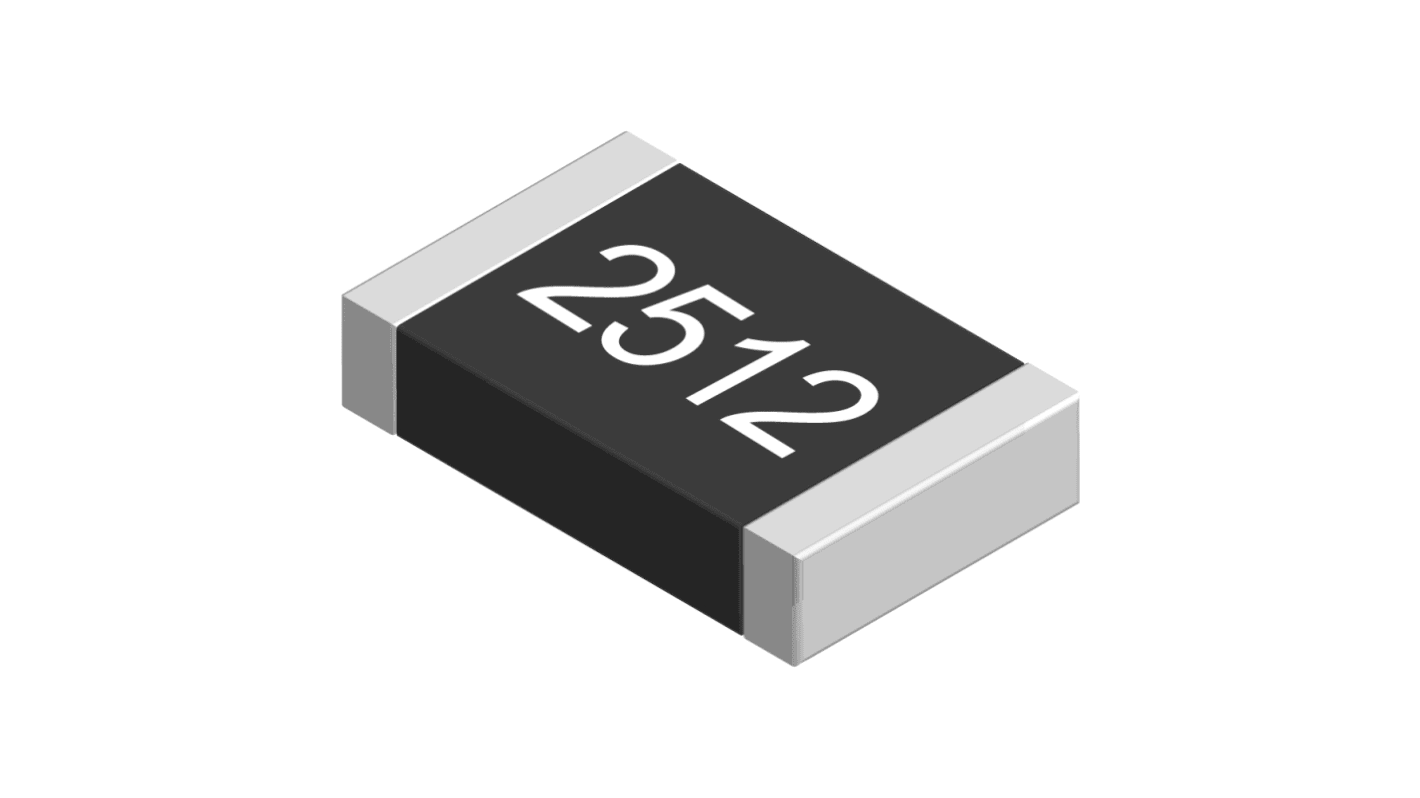

TL3A Series SMD Current Sense Resistors
2512 format
Up to 1W at 70°C
Low ohmic shunt resistor which acts as a current sensor
Wide value range: R001 to R082
Up to 1W at 70°C
Low ohmic shunt resistor which acts as a current sensor
Wide value range: R001 to R082
TE Connectivity TL3A series high power, low ohmic metal chip shunt resistors for current sensing applications. The TL3A series have a unique metal resistive element and barrier layers beneath the solder to prolong terminal life. TL3A’s are particularly suited to applications in the automotive industry for sensing in electric multiple units ( EMU’s ).
Bulk metal chip resistors
Low thermal e.m.f.
Non-inductive
Marked with 3-digit resistance code
Mini reels are ideal for small batch production, development and R&D department
Suitable for automatic assembly on pick and place machinery
Low thermal e.m.f.
Non-inductive
Marked with 3-digit resistance code
Mini reels are ideal for small batch production, development and R&D department
Suitable for automatic assembly on pick and place machinery
Specifications
Attribute | Value |
|---|---|
| Resistance | 22mΩ |
| Technology | Metal Foil |
| Package/Case | 2512 (6432M) |
| Tolerance | ±1% |
| Power Rating | 1W |
| Temperature Coefficient | ±75ppm/°C |
| Series | TLA3A |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +170°C |
- RS Stock No.:
- 164-1769
- Mfr. Part No.:
- TL3AR022F
- Brand:
- TE Connectivity
