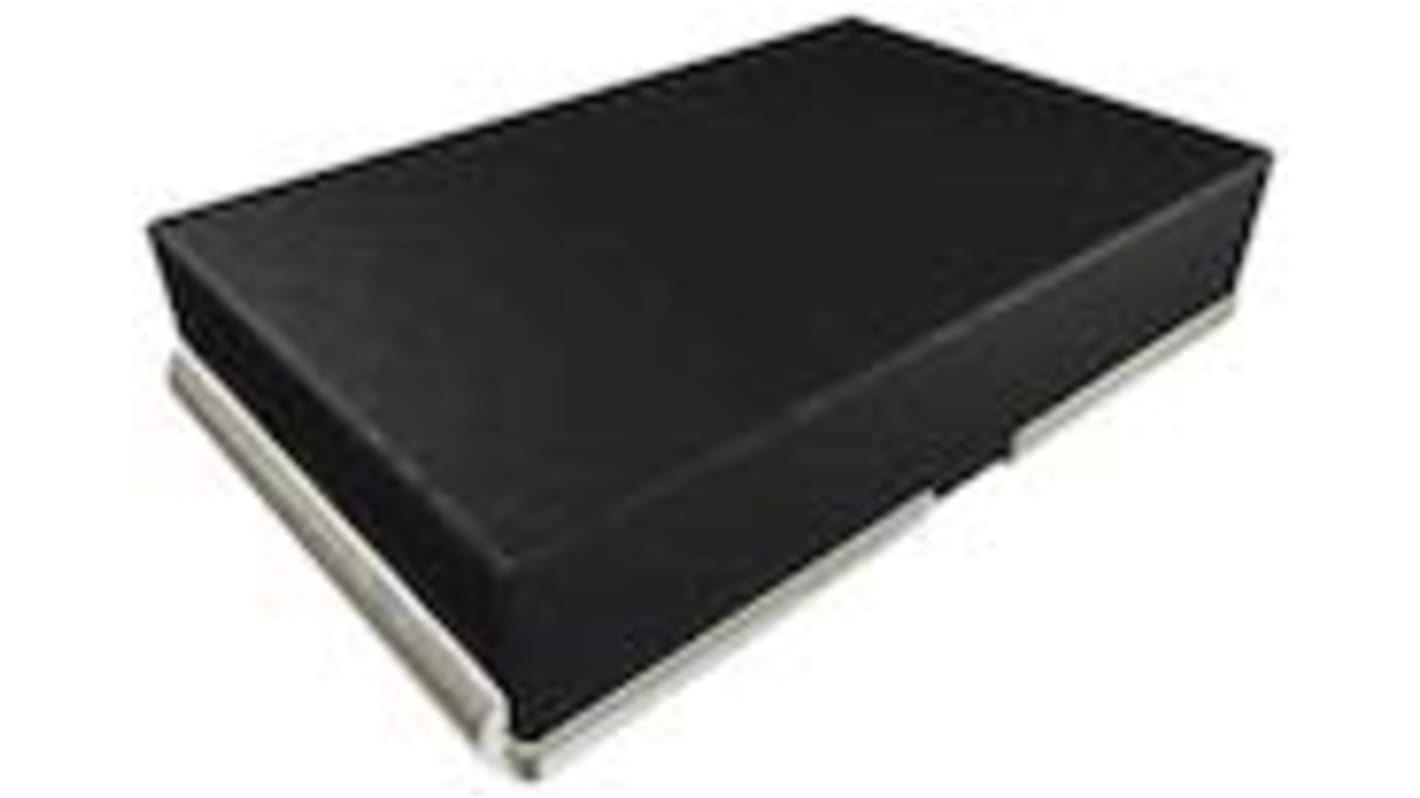

Vishay 5mΩ, 2818 Metal Strip SMD Resistor ±1% 10W - WSHP28185L000FEB
- RS Stock No.:
- 138-9323
- Mfr. Part No.:
- WSHP28185L000FEB
- Brand:
- Vishay
Stock information currently inaccessible
- RS Stock No.:
- 138-9323
- Mfr. Part No.:
- WSHP28185L000FEB
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Resistance | 5mΩ | |
| Technology | Metal Strip | |
| Package/Case | 2818 | |
| Tolerance | ±1% | |
| Power Rating | 10W | |
| Temperature Coefficient | ±200ppm/°C | |
| Automotive Standard | AEC-Q200 | |
| Series | WSHP2818 | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | +170°C | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Resistance 5mΩ | ||
Technology Metal Strip | ||
Package/Case 2818 | ||
Tolerance ±1% | ||
Power Rating 10W | ||
Temperature Coefficient ±200ppm/°C | ||
Automotive Standard AEC-Q200 | ||
Series WSHP2818 | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +170°C | ||
Improved thermal management incorporated into design
All welded construction of the Power Metal Strip resistors are ideal for all types of current sensing, voltage division, and pulse applications
Proprietary processing technique produces extremely low resistance values
Very low inductance (< 5 nH)
Solid metal nickel-chrome or manganese copper alloy resistive element with low TCR (< 20 ppm/°C)
Low thermal EMF (< 3 μV/°C)
AEC-Q200 qualified (1)
All welded construction of the Power Metal Strip resistors are ideal for all types of current sensing, voltage division, and pulse applications
Proprietary processing technique produces extremely low resistance values
Very low inductance (< 5 nH)
Solid metal nickel-chrome or manganese copper alloy resistive element with low TCR (< 20 ppm/°C)
Low thermal EMF (< 3 μV/°C)
AEC-Q200 qualified (1)
