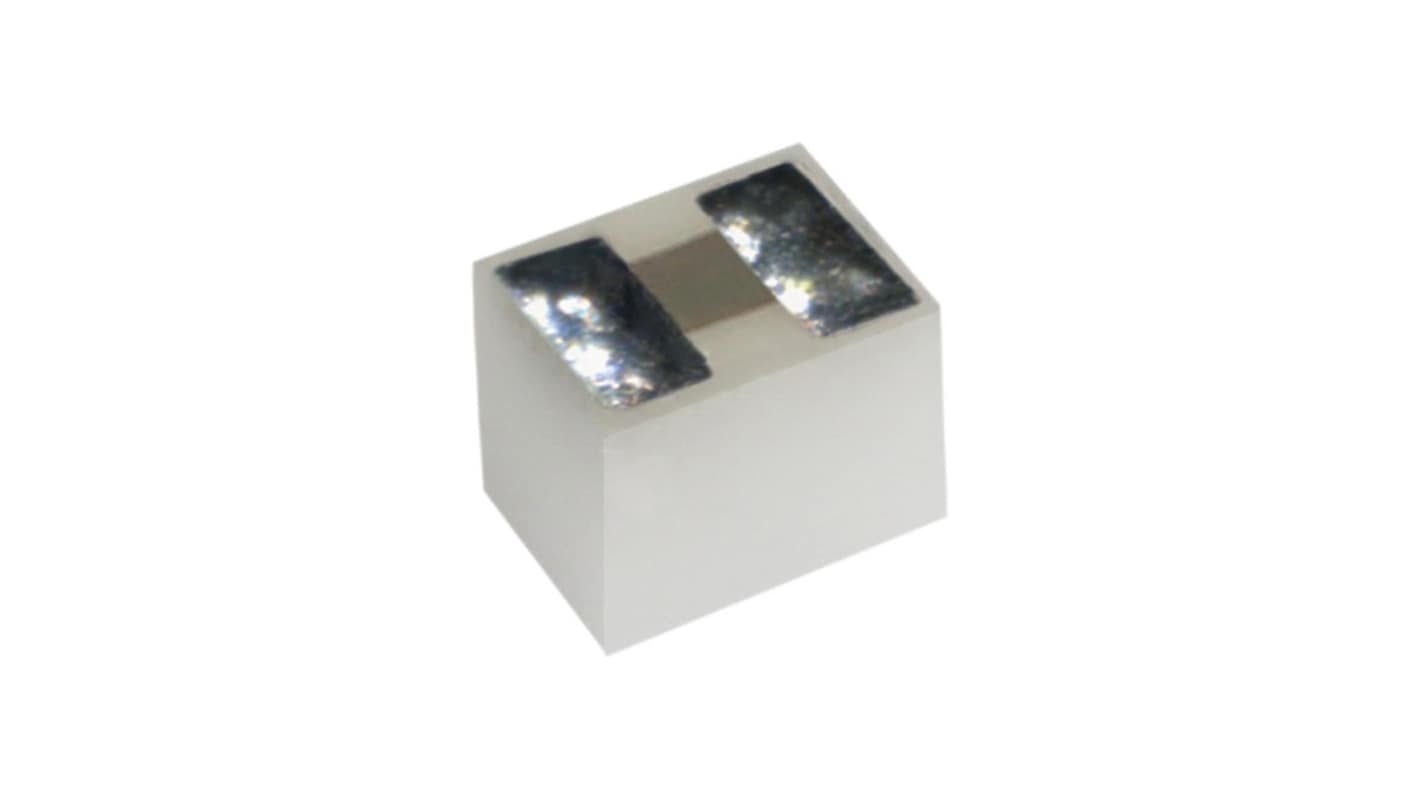

Vishay CHA 500 Ω, 2016 Thin Film Resistor 0.05 Surface 0.03 W - CHA02016-100RJFT
- RS Stock No.:
- 277-495
- Mfr. Part No.:
- CHA02016-100RJFT
- Brand:
- Vishay
Subtotal (1 reel of 1000 units)*
£2,500.00
(exc. VAT)
£3,000.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £2.50 | £2,500.00 |
*price indicative
- RS Stock No.:
- 277-495
- Mfr. Part No.:
- CHA02016-100RJFT
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Resistor | |
| Resistance | 500Ω | |
| Technology | Thin Film | |
| Resistor Type | Thin Film Resistor | |
| Package/Case | 2016 | |
| Tolerance | 0.05 | |
| Packaging | Tape & Reel | |
| Power Rating | 0.03W | |
| Voltage | 30V | |
| Mount Type | Surface | |
| Temperature Coefficient | 100 ppm/°C | |
| Automotive Standard | AEC-Q200 | |
| Series | CHA | |
| Maximum Operating Temperature | 70°C | |
| Width | 0.39mm | |
| Standards/Approvals | RoHS | |
| Length | 0.48mm | |
| Height | 0.42mm | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Resistor | ||
Resistance 500Ω | ||
Technology Thin Film | ||
Resistor Type Thin Film Resistor | ||
Package/Case 2016 | ||
Tolerance 0.05 | ||
Packaging Tape & Reel | ||
Power Rating 0.03W | ||
Voltage 30V | ||
Mount Type Surface | ||
Temperature Coefficient 100 ppm/°C | ||
Automotive Standard AEC-Q200 | ||
Series CHA | ||
Maximum Operating Temperature 70°C | ||
Width 0.39mm | ||
Standards/Approvals RoHS | ||
Length 0.48mm | ||
Height 0.42mm | ||
- COO (Country of Origin):
- FR
The Vishay Thin Film Chip Resistors are designed with minimal internal reactance, allowing them to function as nearly Pure resistors across a wide frequency range, up to 70 GHz. When properly mounted and used, these resistors offer excellent performance in high frequency applications.
AEC Q200 qualified
Design kits available
Modelithics library available
Small internal reactance
