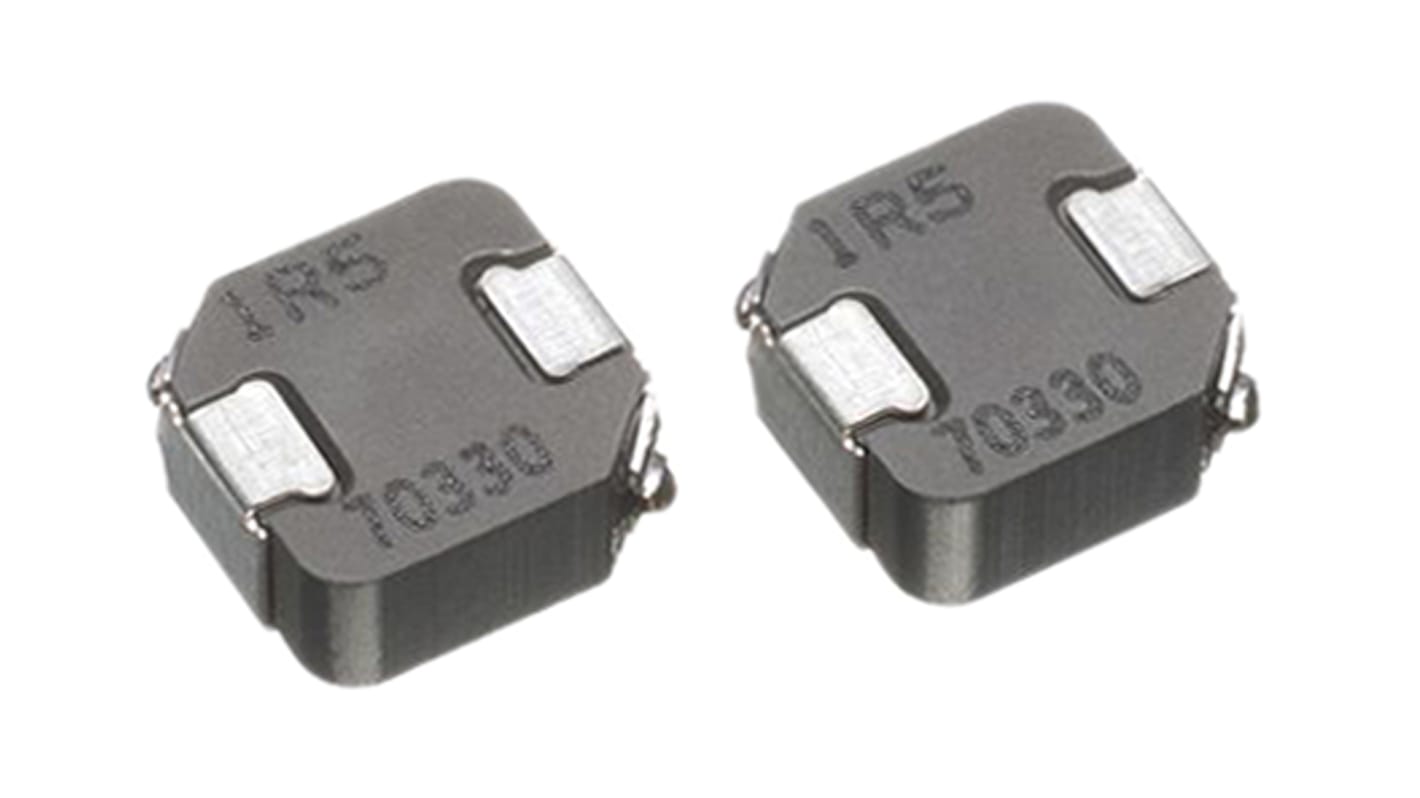

TDK, SPM, 5030 Shielded Wire-wound SMD Inductor with a Metal Core, 350 nH Wire-Wound 14.9 (Idc1) A, 16.6 (Idc2) A Idc
- RS Stock No.:
- 903-9509
- Mfr. Part No.:
- SPM5030T-R35M
- Brand:
- TDK
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 903-9509
- Mfr. Part No.:
- SPM5030T-R35M
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Inductance | 350 nH | |
| Maximum DC Current | 14.9 (Idc1) A, 16.6 (Idc2) A | |
| Package/Case | 5030 | |
| Length | 5.2mm | |
| Depth | 5mm | |
| Height | 3mm | |
| Dimensions | 5.2 x 5 x 3mm | |
| Shielded | Yes | |
| Maximum DC Resistance | 4.29mΩ | |
| Series | SPM | |
| Core Material | Metal | |
| Maximum Self Resonant Frequency | 100kHz | |
| Inductor Construction | Wire-Wound | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TDK | ||
Inductance 350 nH | ||
Maximum DC Current 14.9 (Idc1) A, 16.6 (Idc2) A | ||
Package/Case 5030 | ||
Length 5.2mm | ||
Depth 5mm | ||
Height 3mm | ||
Dimensions 5.2 x 5 x 3mm | ||
Shielded Yes | ||
Maximum DC Resistance 4.29mΩ | ||
Series SPM | ||
Core Material Metal | ||
Maximum Self Resonant Frequency 100kHz | ||
Inductor Construction Wire-Wound | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
SPM5030 Series Magnetically Shielded Wire Wound Inductors
SPM5030 Series magnetic shield type wound inductor for power circuits use a metallic magnetic material
SPM5030 series structure has an integrated moulded coil, so hum noise is lower than with core adhesive coils
They have a low-profile with maximum heights of 1.2mm and 3.0mm allowing for different usages
Possible to achieve large current, low Rdc, and compactness
Low inductance variance in high-temperature environments with good DC superimposition characteristics
SPM5030 series structure has an integrated moulded coil, so hum noise is lower than with core adhesive coils
They have a low-profile with maximum heights of 1.2mm and 3.0mm allowing for different usages
Possible to achieve large current, low Rdc, and compactness
Low inductance variance in high-temperature environments with good DC superimposition characteristics
