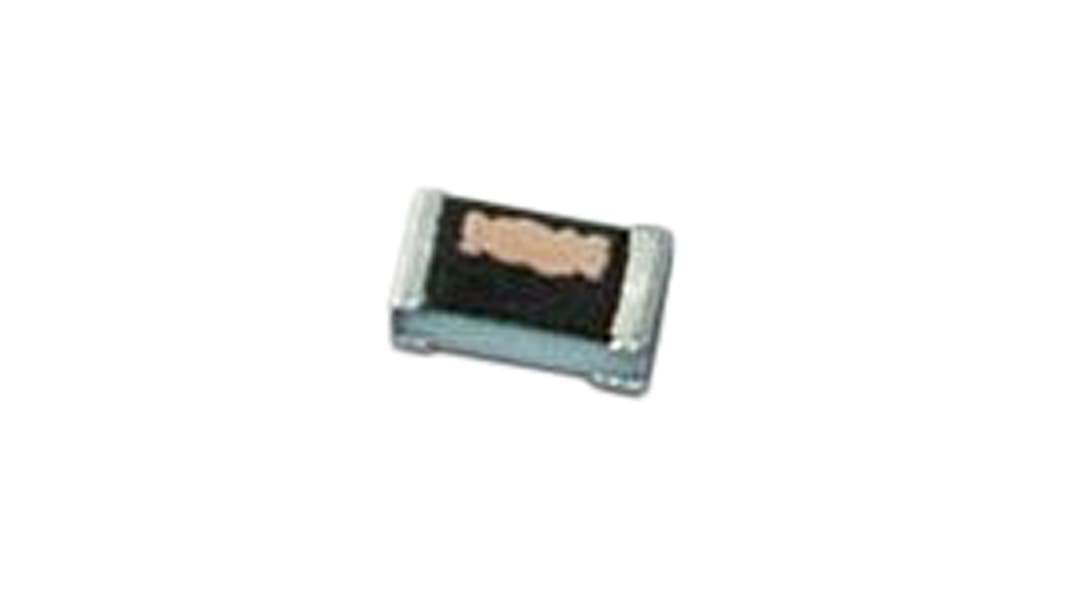

Wurth Elektronik, WE-TCI, 0201 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 1.4 nH Thin Film ±0.2 nH
- RS Stock No.:
- 898-8147
- Mfr. Part No.:
- 744900014
- Brand:
- Wurth Elektronik
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 898-8147
- Mfr. Part No.:
- 744900014
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 1.4nH | |
| Maximum DC Current | 250mA | |
| Package/Case | 0201 | |
| Length | 0.6mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Pin Count | 2 | |
| Maximum DC Resistance | 450mΩ | |
| Minimum Operating Temperature | -40°C | |
| Inductance Tolerance | ±0.2 nH | |
| Maximum Operating Temperature | 125°C | |
| Series | WE-TCI | |
| Depth | 0.3mm | |
| Standards/Approvals | RoHS, REACH | |
| Height | 0.23mm | |
| Core Material | Ferrite | |
| Termination Style | Surface Mount | |
| Maximum Self Resonant Frequency | 9GHz | |
| Minimum Quality Factor | 8 | |
| Inductor Construction | Thin Film | |
| Moulded | Yes | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 1.4nH | ||
Maximum DC Current 250mA | ||
Package/Case 0201 | ||
Length 0.6mm | ||
Packaging Tape & Reel | ||
Automotive Standard No | ||
Shielding Yes | ||
Pin Count 2 | ||
Maximum DC Resistance 450mΩ | ||
Minimum Operating Temperature -40°C | ||
Inductance Tolerance ±0.2 nH | ||
Maximum Operating Temperature 125°C | ||
Series WE-TCI | ||
Depth 0.3mm | ||
Standards/Approvals RoHS, REACH | ||
Height 0.23mm | ||
Core Material Ferrite | ||
Termination Style Surface Mount | ||
Maximum Self Resonant Frequency 9GHz | ||
Minimum Quality Factor 8 | ||
Inductor Construction Thin Film | ||
Moulded Yes | ||
- COO (Country of Origin):
- TW
Wurth 0201 WE-TCI Series
Wurth WE-TCI Series 0201 multilayer ceramic inductors are suitable for use in high frequency circuits. The windings are printed on ceramic substrate. These inductors offer stable inductance over temperature, inductive tolerances of 5%; ± 0.2 nH and an extremely high self resonant frequency. Reflow or wave soldering is recommended for this series.
Ideal applications for these SMD inductors include pagers, oscillators, laptops, PCMCIA-cards, Bluetooth, wireless LAN and filter circuits.
