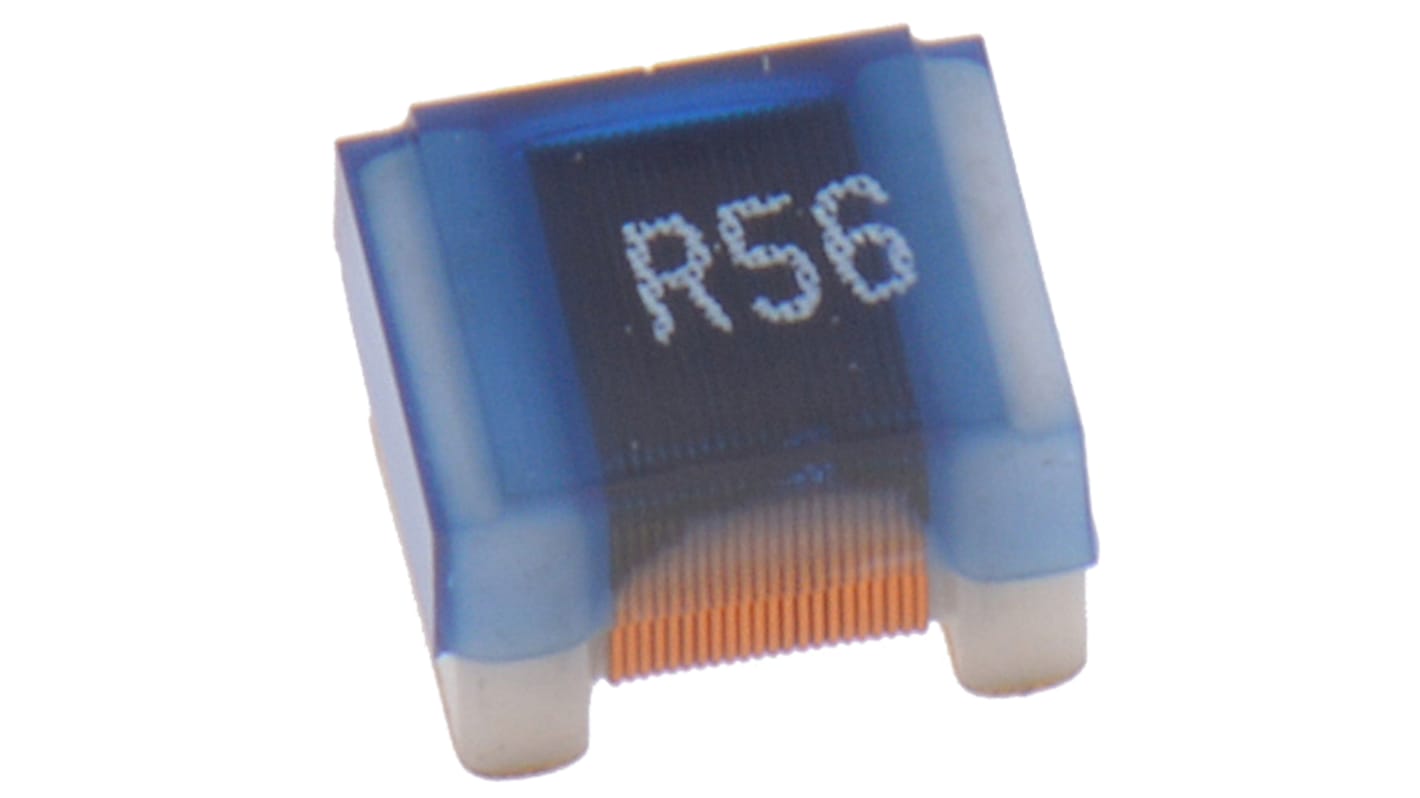

Wurth, WE-KI, 1008A Shielded Wire-wound SMD Inductor with a Ceramic Core, 0.56 μH ±5% Wire-Wound 310mA Idc Q:45
- RS Stock No.:
- 883-0115
- Mfr. Part No.:
- 744762256A
- Brand:
- Wurth Elektronik
Save 33% when you buy 2000 units
Subtotal (1 bag of 10 units)*
£3.75
(exc. VAT)
£4.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 90 | £0.375 | £3.75 |
| 100 - 490 | £0.323 | £3.23 |
| 500 - 1990 | £0.297 | £2.97 |
| 2000 + | £0.249 | £2.49 |
*price indicative
- RS Stock No.:
- 883-0115
- Mfr. Part No.:
- 744762256A
- Brand:
- Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 0.56 μH | |
| Maximum DC Current | 310mA | |
| Package/Case | 1008A | |
| Length | 2.5mm | |
| Depth | 2mm | |
| Height | 1.6mm | |
| Dimensions | 2.5 x 2 x 1.6mm | |
| Shielded | Yes | |
| Tolerance | ±5% | |
| Maximum DC Resistance | 1500mΩ | |
| Series | WE-KI | |
| Core Material | Ceramic | |
| Maximum Self Resonant Frequency | 430MHz | |
| Minimum Operating Temperature | -40°C | |
| Inductor Construction | Wire-Wound | |
| Maximum Operating Temperature | +125°C | |
| Minimum Quality Factor | 45 | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 0.56 μH | ||
Maximum DC Current 310mA | ||
Package/Case 1008A | ||
Length 2.5mm | ||
Depth 2mm | ||
Height 1.6mm | ||
Dimensions 2.5 x 2 x 1.6mm | ||
Shielded Yes | ||
Tolerance ±5% | ||
Maximum DC Resistance 1500mΩ | ||
Series WE-KI | ||
Core Material Ceramic | ||
Maximum Self Resonant Frequency 430MHz | ||
Minimum Operating Temperature -40°C | ||
Inductor Construction Wire-Wound | ||
Maximum Operating Temperature +125°C | ||
Minimum Quality Factor 45 | ||
