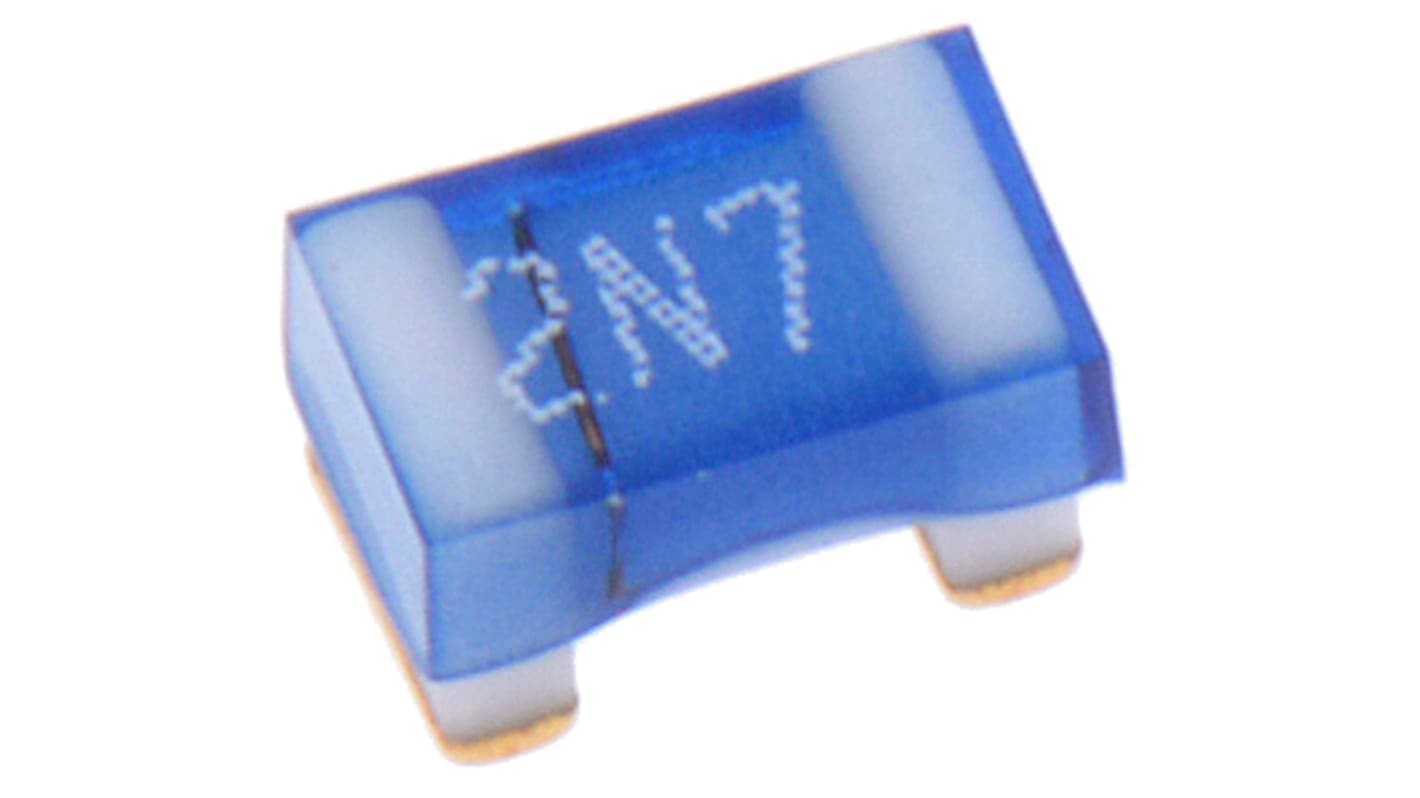

Wurth Elektronik, WE-KI, 0805A Shielded Wirewound Surface Mount Inductor with a Ceramic Core, 2.7 nH ±0.2 nH 800 mA Idc
- RS Stock No.:
- 882-9963
- Mfr. Part No.:
- 744760027A
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 bag of 10 units)*
£2.41
(exc. VAT)
£2.89
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 24 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 90 | £0.241 | £2.41 |
| 100 - 490 | £0.236 | £2.36 |
| 500 - 1990 | £0.232 | £2.32 |
| 2000 - 3990 | £0.226 | £2.26 |
| 4000 + | £0.221 | £2.21 |
*price indicative
- RS Stock No.:
- 882-9963
- Mfr. Part No.:
- 744760027A
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 2.7nH | |
| Maximum DC Current | 800mA | |
| Package/Case | 0805A | |
| Packaging | Tape & Reel | |
| Length | 2mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Maximum DC Resistance | 80mΩ | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | ±0.2 nH | |
| Series | WE-KI | |
| Standards/Approvals | REACH, RoHS | |
| Core Material | Ceramic | |
| Termination Style | Surface Mount | |
| Height | 1.2mm | |
| Depth | 1.25mm | |
| Maximum Self Resonant Frequency | 6GHz | |
| Moulded | Yes | |
| Minimum Quality Factor | 35 | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 2.7nH | ||
Maximum DC Current 800mA | ||
Package/Case 0805A | ||
Packaging Tape & Reel | ||
Length 2mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Maximum DC Resistance 80mΩ | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance ±0.2 nH | ||
Series WE-KI | ||
Standards/Approvals REACH, RoHS | ||
Core Material Ceramic | ||
Termination Style Surface Mount | ||
Height 1.2mm | ||
Depth 1.25mm | ||
Maximum Self Resonant Frequency 6GHz | ||
Moulded Yes | ||
Minimum Quality Factor 35 | ||
Inductor Construction Wirewound | ||
- COO (Country of Origin):
- MY
Wurth 0805 WE-KI Series Wirewound Ceramic Inductors
Wurth WE-KI Series 0805 SMD wire-wound ceramic inductors have been designed for high frequency applications. They offer the highest possible self resonant frequencies up to 12.5 GHz alongside an excellent Q factor and high thermal stability. Other applications for these ceramic inductors include wireless LAN, Bluetooth and RF transceiver/communications. Reflow soldering is recommended for these products.
