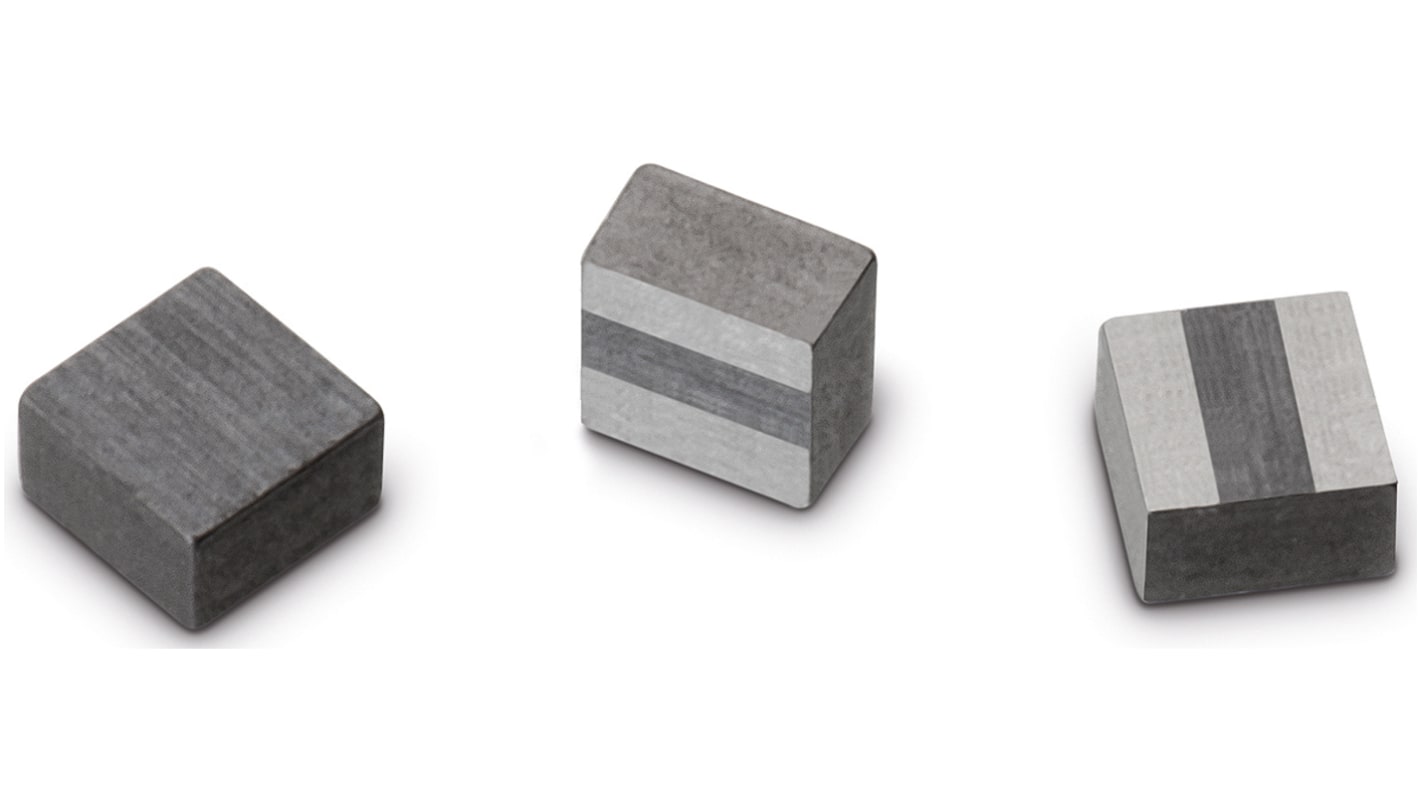

Wurth, WE-MAPI, 1610 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 2.2 μH ±30% Wire-Wound 850mA Idc
- RS Stock No.:
- 863-0744
- Mfr. Part No.:
- 74438313022
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 bag of 5 units)*
£5.87
(exc. VAT)
£7.045
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
5 - 20 | £1.174 | £5.87 |
25 - 45 | £0.928 | £4.64 |
50 - 245 | £0.80 | £4.00 |
250 - 2995 | £0.77 | £3.85 |
3000 + | £0.75 | £3.75 |
*price indicative
- RS Stock No.:
- 863-0744
- Mfr. Part No.:
- 74438313022
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 2.2 μH | |
Maximum DC Current | 850mA | |
Package/Case | 1610 | |
Length | 1.6mm | |
Depth | 1.6mm | |
Height | 1mm | |
Dimensions | 1.6 x 1.6 x 1mm | |
Shielded | Yes | |
Tolerance | ±30% | |
Maximum DC Resistance | 388mΩ | |
Series | WE-MAPI | |
Core Material | Magnetic Iron Alloy | |
Maximum Self Resonant Frequency | 70MHz | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +125°C | |
Inductor Construction | Wire-Wound | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 2.2 μH | ||
Maximum DC Current 850mA | ||
Package/Case 1610 | ||
Length 1.6mm | ||
Depth 1.6mm | ||
Height 1mm | ||
Dimensions 1.6 x 1.6 x 1mm | ||
Shielded Yes | ||
Tolerance ±30% | ||
Maximum DC Resistance 388mΩ | ||
Series WE-MAPI | ||
Core Material Magnetic Iron Alloy | ||
Maximum Self Resonant Frequency 70MHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Inductor Construction Wire-Wound | ||
- COO (Country of Origin):
- KR
Wurth Elektronik 1610 WE-MAPI Series Wire Wound Chokes
WE-MAPI Series SMD magnetically shielded power inductors, with a magnetic iron alloy construction to enable high rated currents and handling of high transient current spikes. Additionally these compact power inductors also feature low acoustic noise, low leakage flux noise and an operating temperature range of -40°C to 125°C. Applications for the WE-MAPI series power inductors include: DC/DC-converter for high current power supplies; DC/DC-converter for Field Programmable Gate; Array (FPGA); POL-converters; Portable power like PDA, digital camera; Mainboards/graphic cards; Battery powered devices; Wireless communication devices; Power supplies for smart- phones, tablet PCs and other mobile devices
SMT 1610 Inductors (Chokes)
