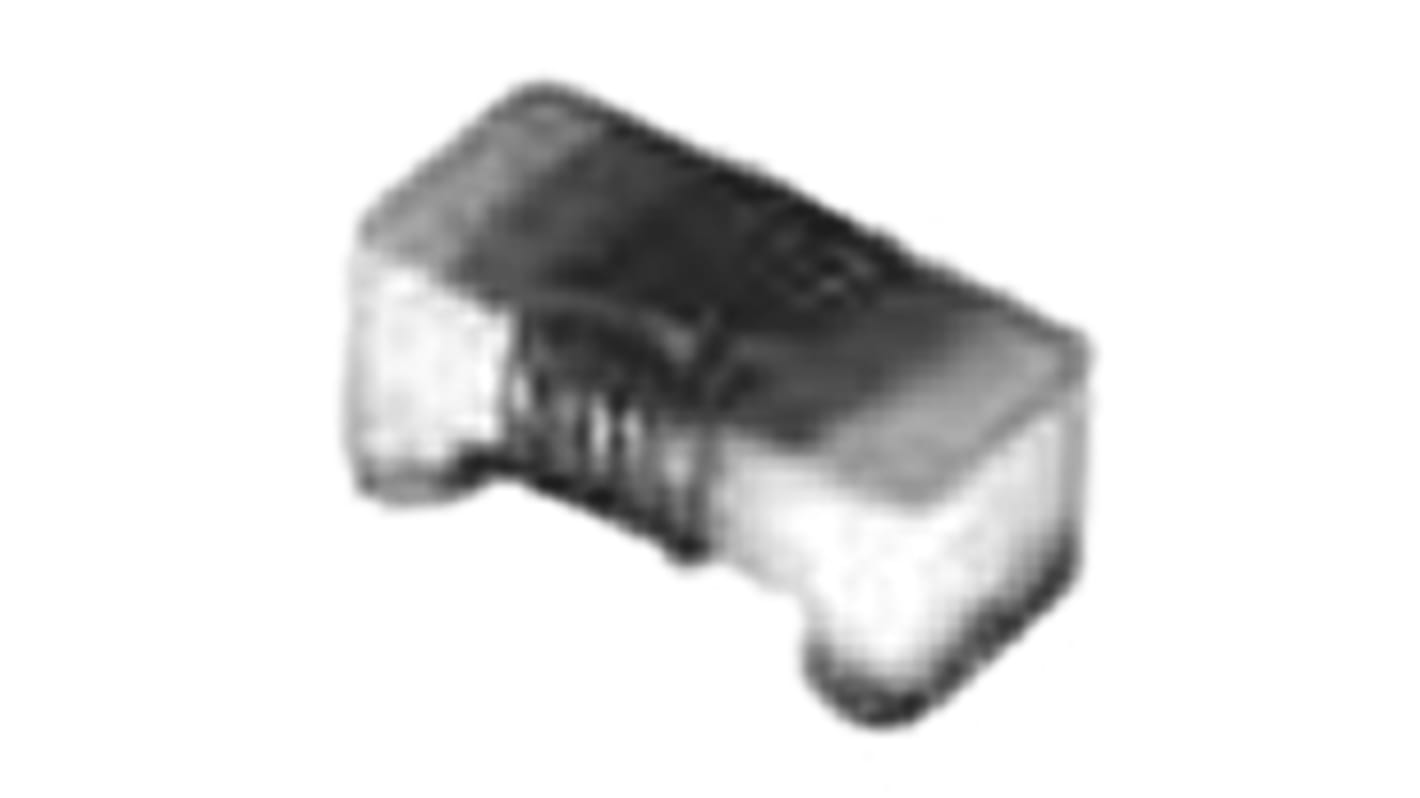

Murata, LQW18A_00, 1608 Wire-wound SMD Inductor 10 nH ±2% Wire-Wound 800mA Idc Q:38
- RS Stock No.:
- 811-9742
- Mfr. Part No.:
- LQW18AN10NG10D
- Brand:
- Murata
Subtotal (1 bag of 10 units)*
£0.93
(exc. VAT)
£1.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,690 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
10 + | £0.093 | £0.93 |
*price indicative
- RS Stock No.:
- 811-9742
- Mfr. Part No.:
- LQW18AN10NG10D
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Murata | |
Inductance | 10 nH | |
Maximum DC Current | 800mA | |
Package/Case | 1608 | |
Length | 1.6mm | |
Depth | 0.8mm | |
Height | 0.8mm | |
Dimensions | 1.6 x 0.8 x 0.8mm | |
Tolerance | ±2% | |
Maximum DC Resistance | 58mΩ | |
Series | LQW18A_00 | |
Maximum Self Resonant Frequency | 5GHz | |
Inductor Construction | Wire-Wound | |
Minimum Operating Temperature | -55°C | |
Minimum Quality Factor | 38 | |
Maximum Operating Temperature | +125°C | |
Select all | ||
---|---|---|
Brand Murata | ||
Inductance 10 nH | ||
Maximum DC Current 800mA | ||
Package/Case 1608 | ||
Length 1.6mm | ||
Depth 0.8mm | ||
Height 0.8mm | ||
Dimensions 1.6 x 0.8 x 0.8mm | ||
Tolerance ±2% | ||
Maximum DC Resistance 58mΩ | ||
Series LQW18A_00 | ||
Maximum Self Resonant Frequency 5GHz | ||
Inductor Construction Wire-Wound | ||
Minimum Operating Temperature -55°C | ||
Minimum Quality Factor 38 | ||
Maximum Operating Temperature +125°C | ||
Murata 0603 LQW18AN Series Wire Wound Inductors
High quality coil inductors designed for VHF and UHF applications.
High resonance frequency.
Low tolerance of inductance values.
Models with the suffix '10D' have lower DC resistance values.
Applications: High frequency circuits for wireless telecommunications equipment: Bluetooth, GSM, W-LAN.
High resonance frequency.
Low tolerance of inductance values.
Models with the suffix '10D' have lower DC resistance values.
Applications: High frequency circuits for wireless telecommunications equipment: Bluetooth, GSM, W-LAN.
