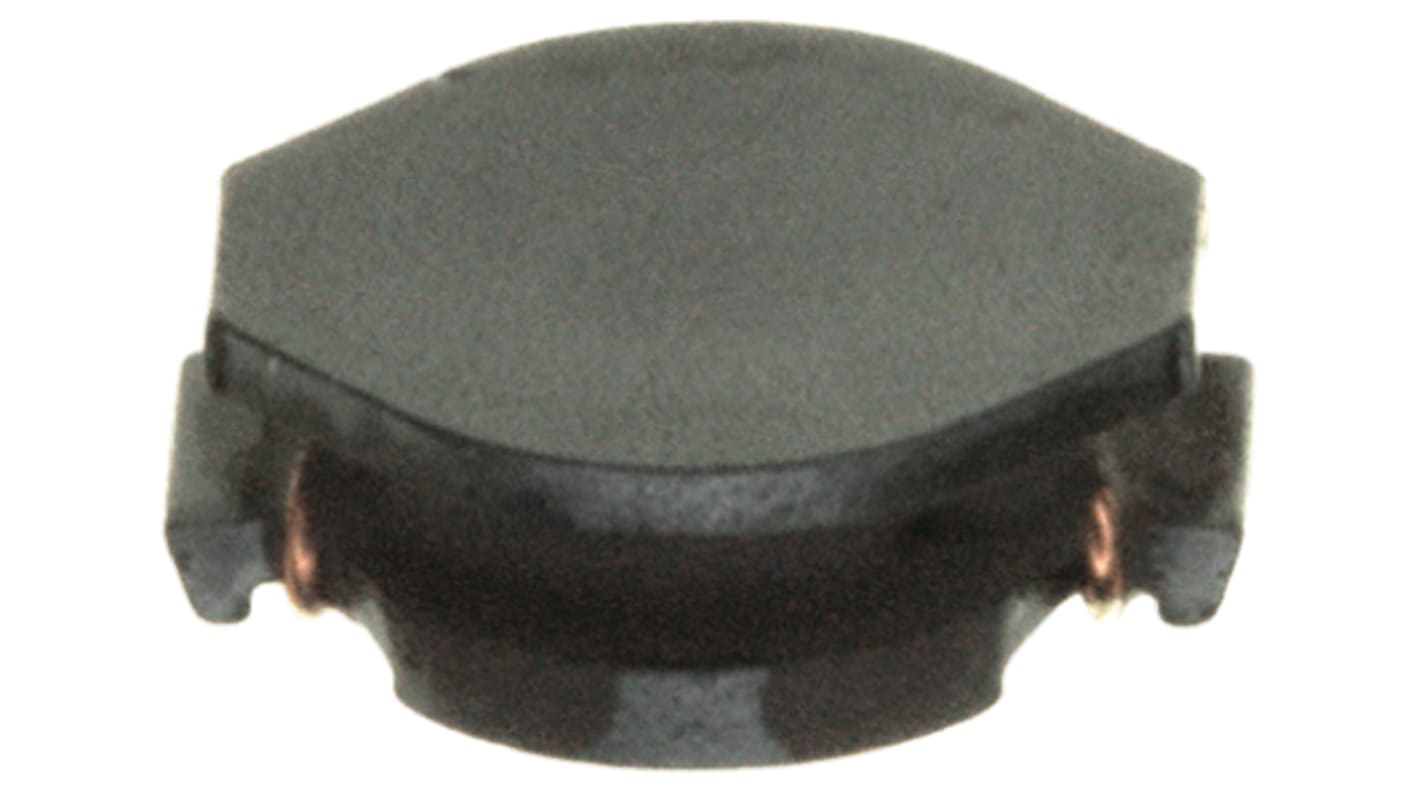

Murata, LQH55P, 2220 (5650M) Shielded Wire-wound SMD Inductor 1.2 μH ±30% Wire-Wound 2.9A Idc
- RS Stock No.:
- 747-4887
- Mfr. Part No.:
- LQH55PN1R2NR0L
- Brand:
- Murata
Discontinued
- RS Stock No.:
- 747-4887
- Mfr. Part No.:
- LQH55PN1R2NR0L
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Inductance | 1.2 μH | |
| Maximum DC Current | 2.9A | |
| Package/Case | 2220 (5650M) | |
| Length | 5.87mm | |
| Depth | 5.2mm | |
| Height | 1.85mm | |

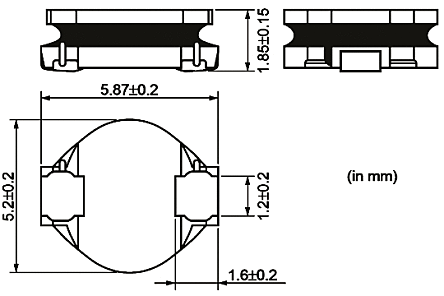

| Dimensions | 5.87 x 5.2 x 1.85mm | |
| Shielded | Yes | |
| Tolerance | ±30% | |
| Maximum DC Resistance | 21mΩ | |
| Series | LQH55P | |
| Maximum Self Resonant Frequency | 80MHz | |
| Inductor Construction | Wire-Wound | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Inductance 1.2 μH | ||
Maximum DC Current 2.9A | ||
Package/Case 2220 (5650M) | ||
Length 5.87mm | ||
Depth 5.2mm | ||
Height 1.85mm | ||
Dimensions 5.87 x 5.2 x 1.85mm | ||
Shielded Yes | ||
Tolerance ±30% | ||
Maximum DC Resistance 21mΩ | ||
Series LQH55P | ||
Maximum Self Resonant Frequency 80MHz | ||
Inductor Construction Wire-Wound | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- MY
Murata 2220 LQH55P Series Wire Magnetically Shielded Wound Chokes
LQH55P series miniature shielded inductors with low DC resistance, high current capacity, and high impedance characteristics. The LQH55P series are suitable for use as inductors or chokes in DC power supply circuits.
SMT 2220 Inductors (Chokes)
