TDK, VLCF, 5020 Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH ±20% Wire-Wound 1.56A Idc
- RS Stock No.:
- 614-2784
- Mfr. Part No.:
- VLCF5020T-100MR87
- Brand:
- TDK
Save 45% when you buy 250 units
Subtotal (1 pack of 5 units)*
£2.51
(exc. VAT)
£3.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 280 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £0.502 | £2.51 |
25 - 45 | £0.376 | £1.88 |
50 - 95 | £0.326 | £1.63 |
100 - 245 | £0.302 | £1.51 |
250 + | £0.276 | £1.38 |
*price indicative
- RS Stock No.:
- 614-2784
- Mfr. Part No.:
- VLCF5020T-100MR87
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TDK | |
Inductance | 10 μH | |
Maximum DC Current | 1.56A | |
Package/Case | 5020 | |
Length | 5.3mm | |
Depth | 5mm | |
Height | 2mm | |

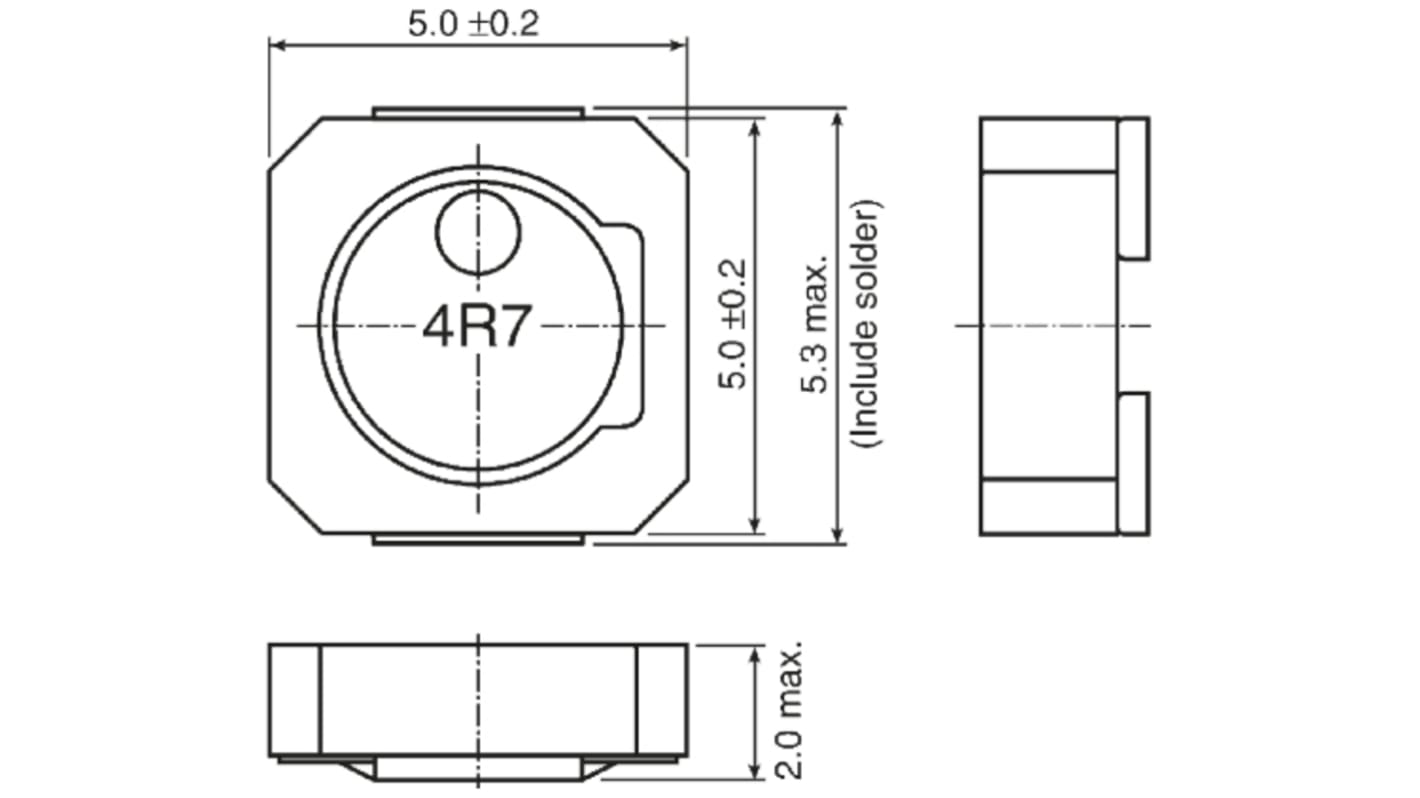

Dimensions | 5.3 x 5 x 2mm | |
Shielded | Yes | |
Tolerance | ±20% | |
Maximum DC Resistance | 182mΩ | |
Series | VLCF | |
Core Material | Ferrite | |
Maximum Operating Temperature | +105°C | |
Minimum Operating Temperature | -40°C | |
Inductor Construction | Wire-Wound | |
Select all | ||
---|---|---|
Brand TDK | ||
Inductance 10 μH | ||
Maximum DC Current 1.56A | ||
Package/Case 5020 | ||
Length 5.3mm | ||
Depth 5mm | ||
Height 2mm | ||
Dimensions 5.3 x 5 x 2mm | ||
Shielded Yes | ||
Tolerance ±20% | ||
Maximum DC Resistance 182mΩ | ||
Series VLCF | ||
Core Material Ferrite | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Inductor Construction Wire-Wound | ||
VLCF5020 Series Magnetically Shielded Wire Wound Chokes
Professional series of TDK surface mount power inductor from the VLCF range which offers magnetic shield type wound inductor for power circuits.
Features and Benefits:
High magnetic shield construction
Generic use portable DC to DC converter line
Test frequency = 100 kHz
Generic use portable DC to DC converter line
Test frequency = 100 kHz
Applications:
Power source inductor for mobile devices such as HDDs, DVCs, and DSCs. LCD displays and other DC to DC converters.
