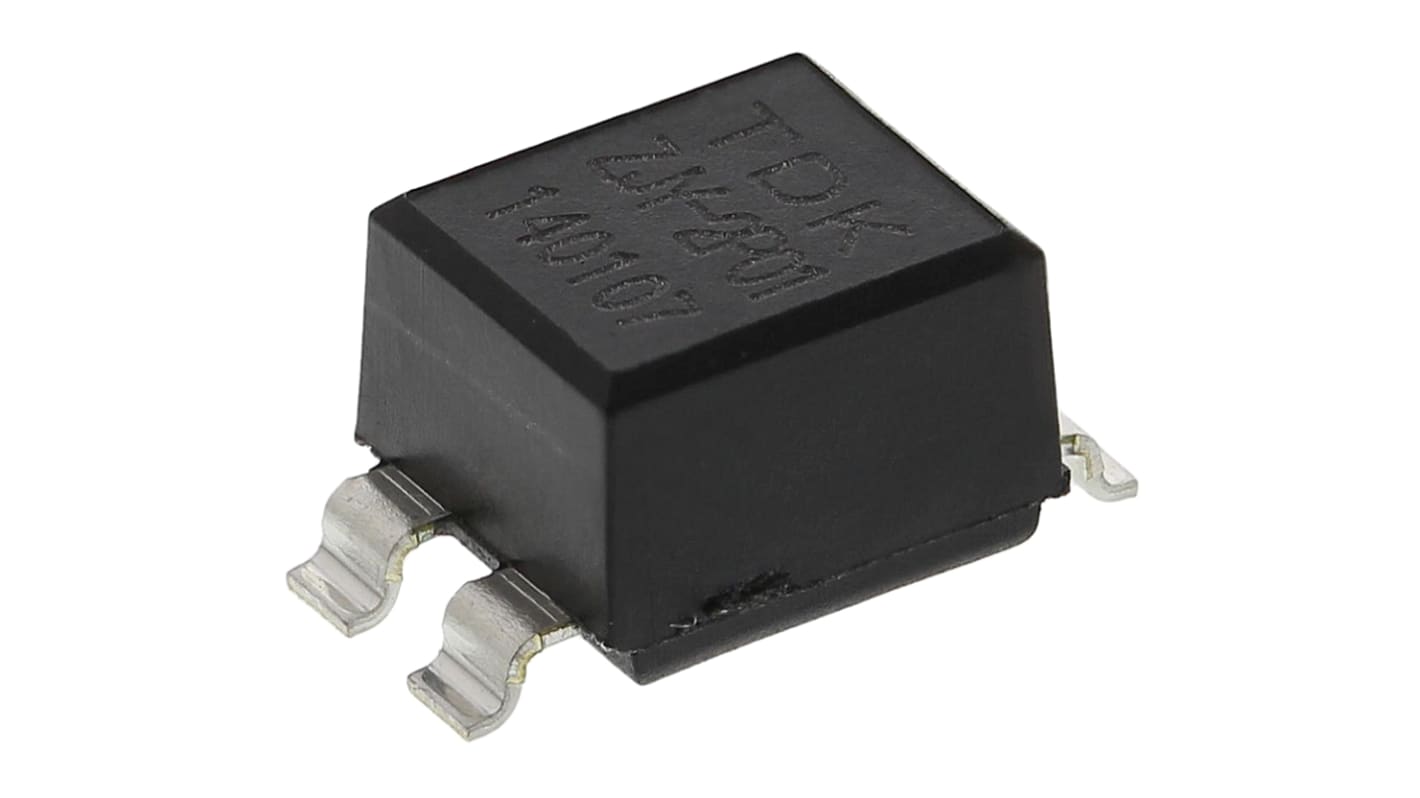

TDK, ZJYS51, SMD Shielded Wire-wound SMD Inductor Wire-Wound 2A Idc
- RS Stock No.:
- 547-5285
- Mfr. Part No.:
- ZJYS51R5-2PT-01
- Brand:
- TDK
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£0.83
(exc. VAT)
£1.00
(inc. VAT)
- RS Stock No.:
- 547-5285
- Mfr. Part No.:
- ZJYS51R5-2PT-01
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Maximum DC Current | 2A | |
| Package/Case | SMD | |
| Length | 5.5mm | |
| Depth | 6.86mm | |
| Height | 4.57mm | |
| Dimensions | 5.5 x 6.86 x 4.57mm | |
| Shielded | Yes | |
| Maximum DC Resistance | 120mΩ | |
| Series | ZJYS51 | |
| Inductor Construction | Wire-Wound | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TDK | ||
Maximum DC Current 2A | ||
Package/Case SMD | ||
Length 5.5mm | ||
Depth 6.86mm | ||
Height 4.57mm | ||
Dimensions 5.5 x 6.86 x 4.57mm | ||
Shielded Yes | ||
Maximum DC Resistance 120mΩ | ||
Series ZJYS51 | ||
Inductor Construction Wire-Wound | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- JP
TDK ZJYS51 Series SMD Common Mode Chokes
SMD common mode line filters, optimised for transmission of high quality signals
Ideal filter for countering the common mode noise resulting from data signal processing by PCs, telephone equipment, etc
Can also be used to counter power line noise, due to a maximum current tolerance of 5A
Insulation resistance 100MΩ (min)
Operating temperature range -25°C to +85°C
Other applications include LANs, ISDNs, digital PBXs, CTVs, CD-ROM drives, electronic games, etc
Ideal filter for countering the common mode noise resulting from data signal processing by PCs, telephone equipment, etc
Can also be used to counter power line noise, due to a maximum current tolerance of 5A
Insulation resistance 100MΩ (min)
Operating temperature range -25°C to +85°C
Other applications include LANs, ISDNs, digital PBXs, CTVs, CD-ROM drives, electronic games, etc
TDK SMD Common Mode Chokes
