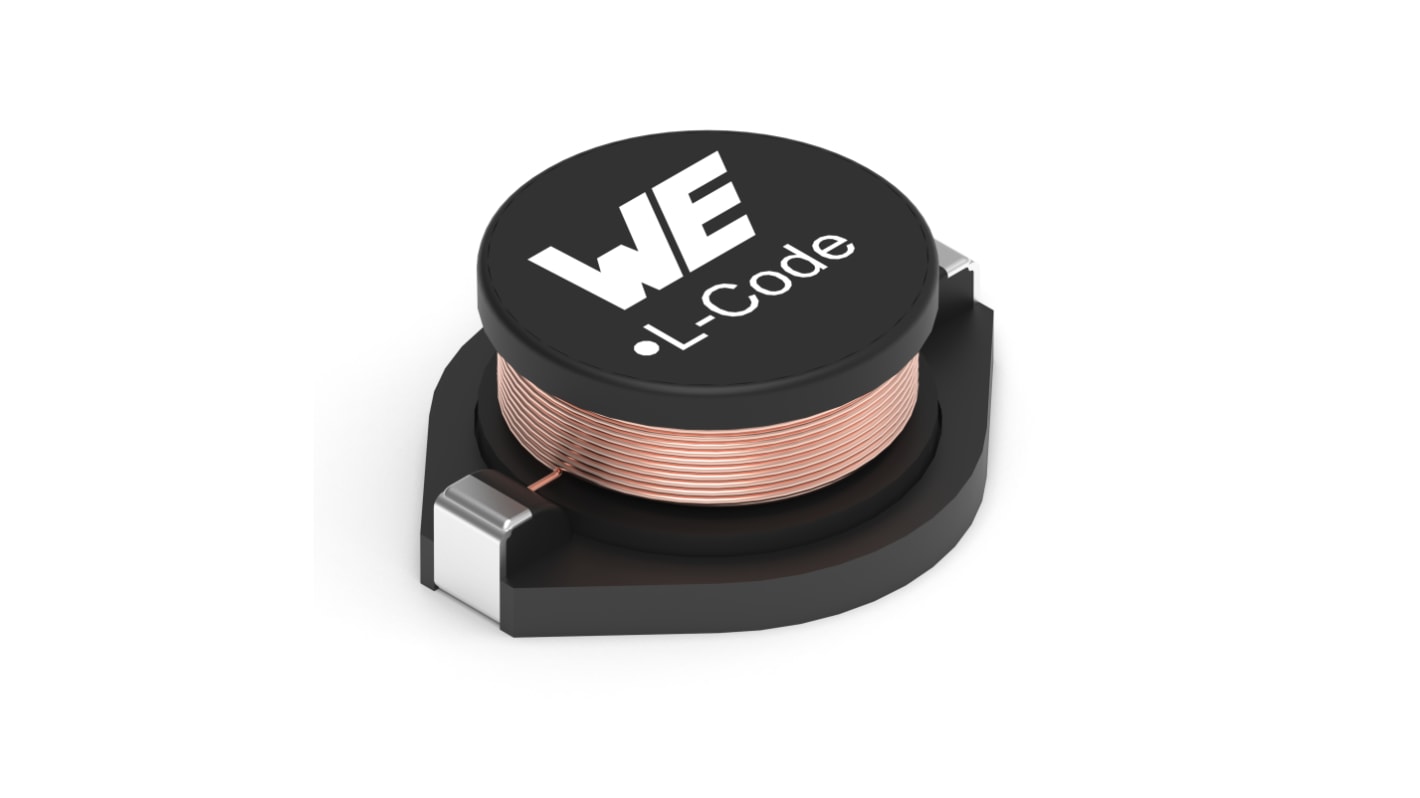

Wurth, WE-PD4 Unshielded Wire-wound SMD Inductor with a Ferrite Core, 4.7 μH ±20% Wire-Wound 5A Idc
- RS Stock No.:
- 396-3336
- Mfr. Part No.:
- 74456047
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 pack of 2 units)*
£3.43
(exc. VAT)
£4.116
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 182 unit(s) ready to ship
- Plus 999,999,816 unit(s) shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 18 | £1.715 | £3.43 |
20 - 98 | £1.625 | £3.25 |
100 - 198 | £1.545 | £3.09 |
200 - 398 | £1.46 | £2.92 |
400 + | £1.37 | £2.74 |
*price indicative
- RS Stock No.:
- 396-3336
- Mfr. Part No.:
- 74456047
- Brand:
- Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 4.7 μH | |
Maximum DC Current | 5A | |
Length | 12.7mm | |
Depth | 10mm | |
Height | 5mm | |
Dimensions | 12.7 x 10 x 5mm | |
Shielded | No | |
Tolerance | ±20% | |
Maximum DC Resistance | 19mΩ | |
Series | WE-PD4 | |
Core Material | Ferrite | |
Maximum Self Resonant Frequency | 38MHz | |
Inductor Construction | Wire-Wound | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 4.7 μH | ||
Maximum DC Current 5A | ||
Length 12.7mm | ||
Depth 10mm | ||
Height 5mm | ||
Dimensions 12.7 x 10 x 5mm | ||
Shielded No | ||
Tolerance ±20% | ||
Maximum DC Resistance 19mΩ | ||
Series WE-PD4 | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 38MHz | ||
Inductor Construction Wire-Wound | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
