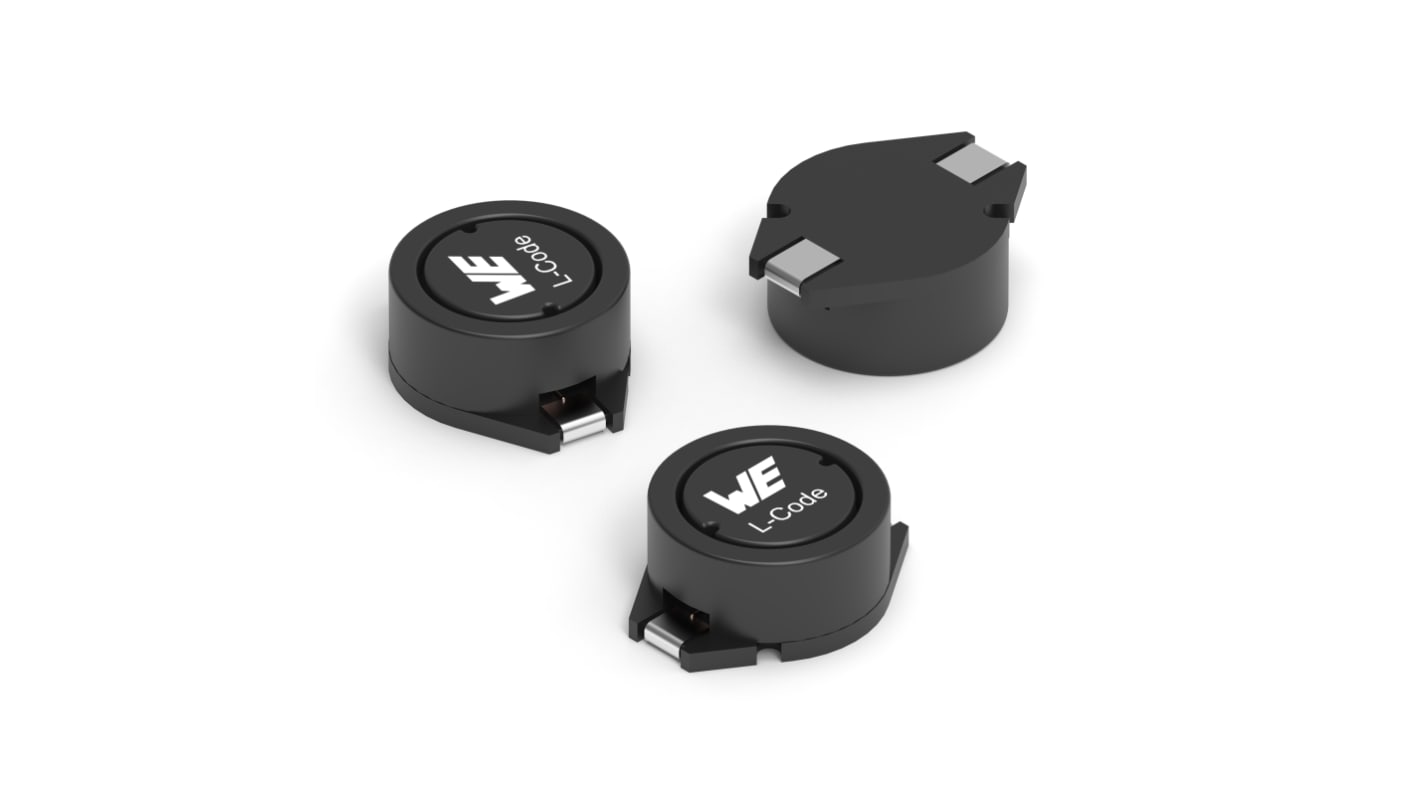

Wurth, WE-PD3 Shielded Wire-wound SMD Inductor with a Ferrite Core, 68 μH ±15% Wire-Wound 820mA Idc Q:35
- RS Stock No.:
- 367-5231
- Mfr. Part No.:
- 74454168
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 unit)*
£1.83
(exc. VAT)
£2.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 69 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £1.83 |
| 25 - 49 | £1.72 |
| 50 - 99 | £1.63 |
| 100 - 249 | £1.48 |
| 250 + | £1.37 |
*price indicative
- RS Stock No.:
- 367-5231
- Mfr. Part No.:
- 74454168
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 68 μH | |
| Maximum DC Current | 820mA | |
| Length | 12.7mm | |
| Depth | 10mm | |
| Height | 4.9mm | |
| Dimensions | 12.7 x 10 x 4.9mm | |
| Shielded | Yes | |
| Tolerance | ±15% | |
| Maximum DC Resistance | 340mΩ | |
| Series | WE-PD3 | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 9MHz | |
| Maximum Operating Temperature | +85°C | |
| Inductor Construction | Wire-Wound | |
| Minimum Quality Factor | 35 | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 68 μH | ||
Maximum DC Current 820mA | ||
Length 12.7mm | ||
Depth 10mm | ||
Height 4.9mm | ||
Dimensions 12.7 x 10 x 4.9mm | ||
Shielded Yes | ||
Tolerance ±15% | ||
Maximum DC Resistance 340mΩ | ||
Series WE-PD3 | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 9MHz | ||
Maximum Operating Temperature +85°C | ||
Inductor Construction Wire-Wound | ||
Minimum Quality Factor 35 | ||
Minimum Operating Temperature -25°C | ||
WE-PD3 Series Magnetically Shielded Wire Wound Chokes
Suppression chokes for applications up to 1 MHz
Operating frequency up to 10 MHz
Low profile
Magnetically shielded
Operating temperature -25° → +85°C
Operating frequency up to 10 MHz
Low profile
Magnetically shielded
Operating temperature -25° → +85°C


Wurth Non Standard SMT Inductors (Chokes)
