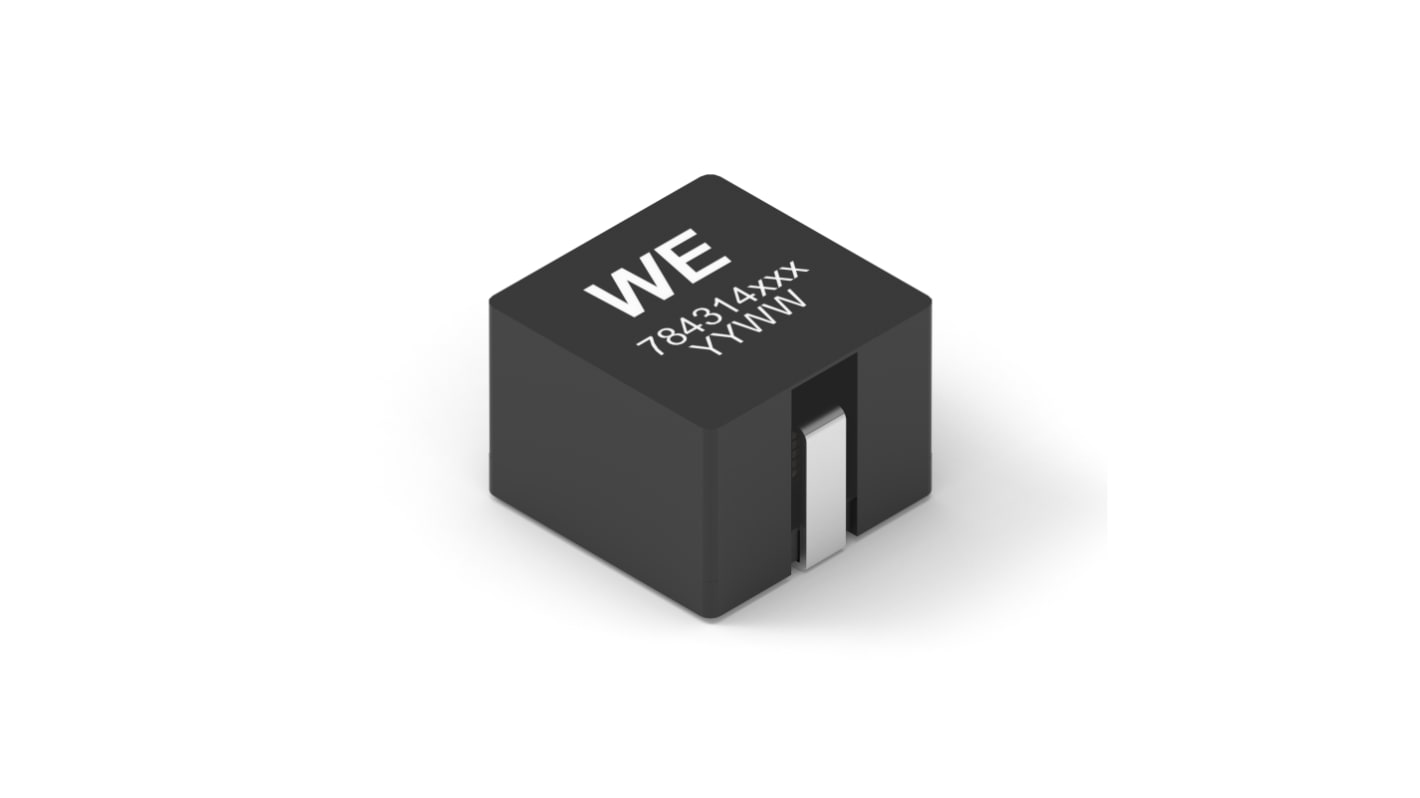

Wurth Elektronik, WE-HCIA, 7050 Shielded Surface Mount Inductor with a Polystyrene Core, 6.5 μH Shielded 20 % 6.3 A Idc

View all Surface Mount Inductors
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Development Kit Box with a flash stating "Win"
Win A Würth Elektronik Lighting Development Kit
Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.
Claim my Lighting Kit
RS Stock No.:
270-0906
Mfr. Part No.:
784314065
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Inductance

6.5μH

Product Type

Surface Mount Inductor

Sub Type

High Current Inductor

Maximum DC Current

6.3A

Package/Case

7050

Packaging

Tape & Reel

Length

7mm

Automotive Standard

AEC-Q200

Shielding

Yes

Minimum Operating Temperature

-55°C

Maximum DC Resistance

23.65mΩ

Inductance Tolerance

20 %

Series

WE-HCIA

Maximum Operating Temperature

150°C

Depth

6.9mm

Core Material

Polystyrene

Standards/Approvals

REACH, Halogen Free JEDEC JS709B, RoHS, Halogen Free IEC 61249-2-21

Diameter

6.9mm

Height

6.9mm

Maximum Self Resonant Frequency

50MHz

Inductor Construction

Shielded

Moulded

No

COO (Country of Origin):
CN
The Wurth Elektronik high current inductor is used in single Coil power inductor, with an operating temperature is -55 °C to +150 °C. It is used in filter choke for motor electronics, car infotainment and multimedia applications.

Flat wire Coil for low losses

Low stray field
