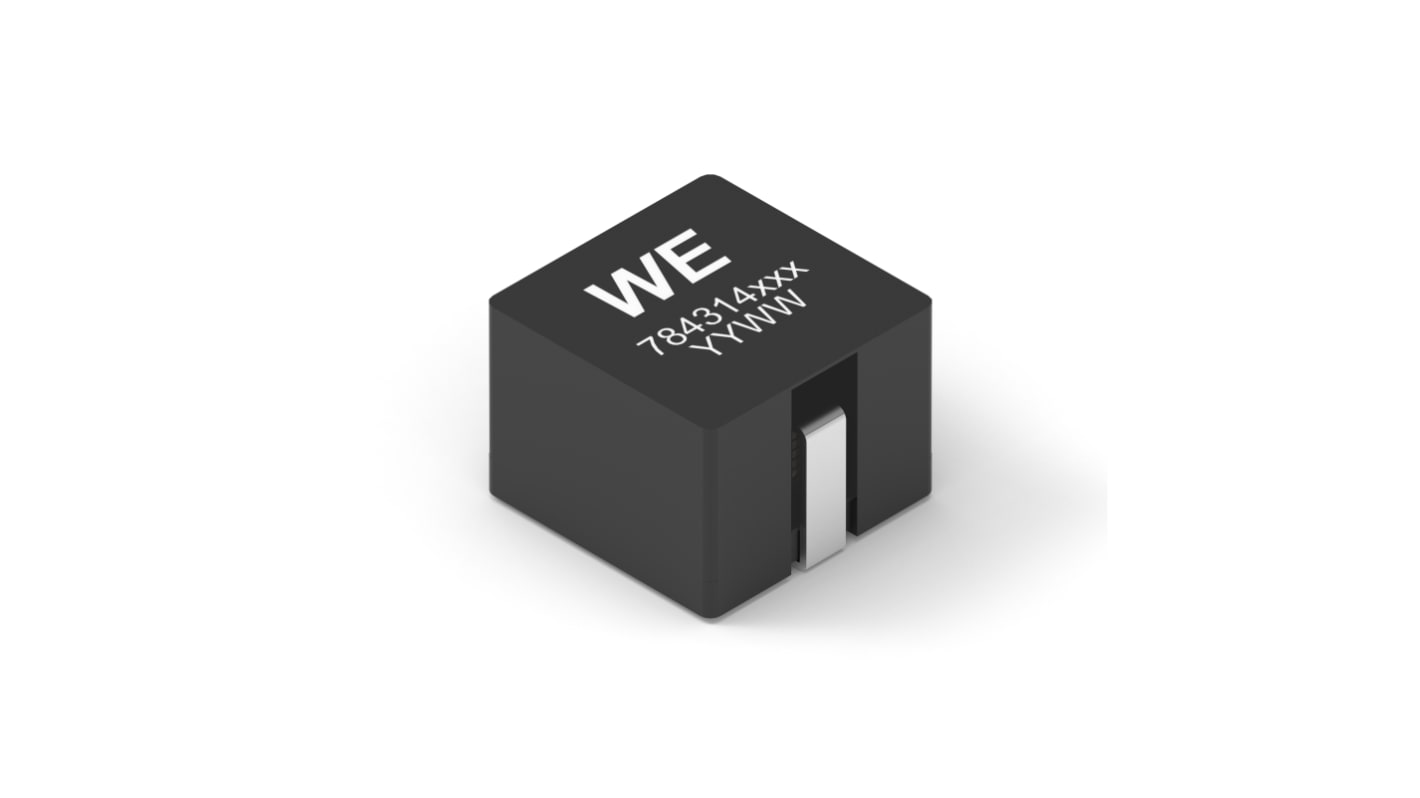

Wurth Elektronik, WE-HCIA, 7050 Shielded Surface Mount Inductor with a Polystyrene Core, 470 nH Shielded 20 % 16.9 A Idc
- RS Stock No.:
- 270-0896
- Mfr. Part No.:
- 7843140047
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 1000 units)*
£2,090.00
(exc. VAT)
£2,510.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £2.09 | £2,090.00 |
*price indicative
- RS Stock No.:
- 270-0896
- Mfr. Part No.:
- 7843140047
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Surface Mount Inductor | |
| Inductance | 470nH | |
| Sub Type | High Current Inductor | |
| Maximum DC Current | 16.9A | |
| Package/Case | 7050 | |
| Packaging | Tape & Reel | |
| Length | 7mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Maximum DC Resistance | 1.65mΩ | |
| Minimum Operating Temperature | -55°C | |
| Inductance Tolerance | 20 % | |
| Series | WE-HCIA | |
| Maximum Operating Temperature | 150°C | |
| Diameter | 6.9mm | |
| Depth | 6.9mm | |
| Core Material | Polystyrene | |
| Height | 6.9mm | |
| Standards/Approvals | Halogen Free JEDEC JS709B, Halogen Free IEC 61249-2-21, EU&2015, 2006, 863, REACH EC1907, RoHS 2011 | |
| Maximum Self Resonant Frequency | 292MHz | |
| Inductor Construction | Shielded | |
| Moulded | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Surface Mount Inductor | ||
Inductance 470nH | ||
Sub Type High Current Inductor | ||
Maximum DC Current 16.9A | ||
Package/Case 7050 | ||
Packaging Tape & Reel | ||
Length 7mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Maximum DC Resistance 1.65mΩ | ||
Minimum Operating Temperature -55°C | ||
Inductance Tolerance 20 % | ||
Series WE-HCIA | ||
Maximum Operating Temperature 150°C | ||
Diameter 6.9mm | ||
Depth 6.9mm | ||
Core Material Polystyrene | ||
Height 6.9mm | ||
Standards/Approvals Halogen Free JEDEC JS709B, Halogen Free IEC 61249-2-21, EU&2015, 2006, 863, REACH EC1907, RoHS 2011 | ||
Maximum Self Resonant Frequency 292MHz | ||
Inductor Construction Shielded | ||
Moulded No | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik high current inductor is used in single Coil power inductor, with an operating temperature is -55 °C to +150 °C. It is used in filter choke for motor electronics, car infotainment and multimedia applications.
Flat wire Coil for low losses
Low stray field
